Samsung VM55HX-E Full HD Video Wall

S$3,383.00
Request for Quotation

Samsung VM55HX-E is a 55-inch Full HD video-wall display designed for continuous commercial use. Its 1.74 mm bezel-to-bezel width, 500-nit maximum brightness and anti-glare panel support connected visual presentations in retail spaces, lobbies, meeting rooms and control rooms.

Choose your Size
55"
Samsung VM55HX-E Full HD Video Wall
Samsung VM55HX-E — Video Wall VMHX-E Front Black , 55" Video Wall VMHX-E

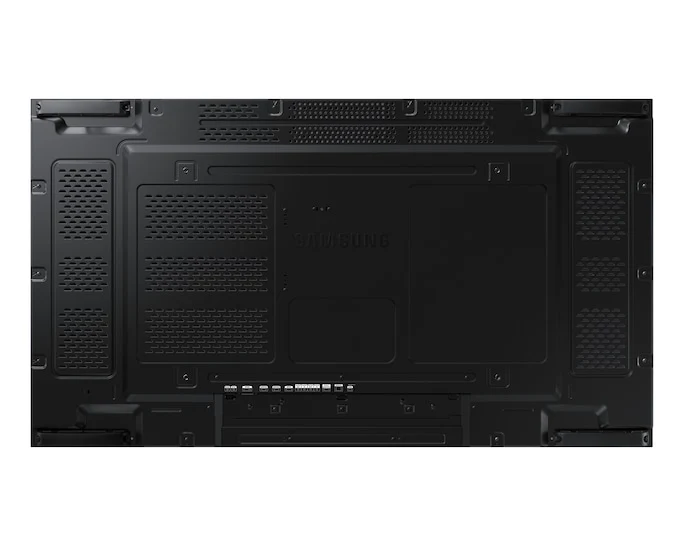

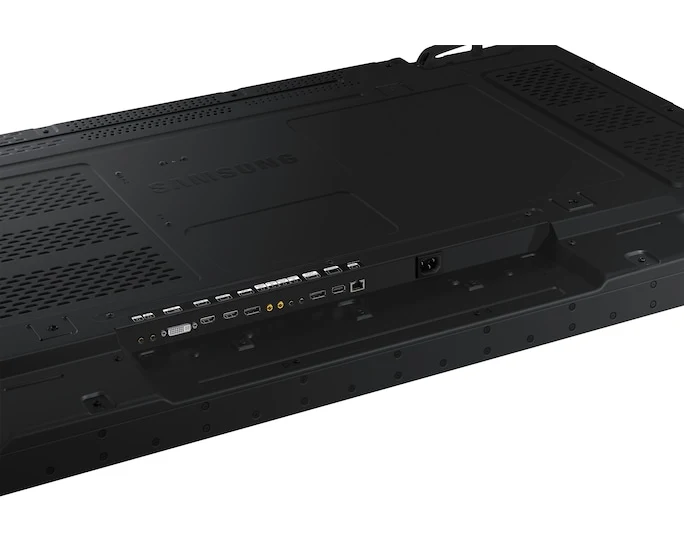

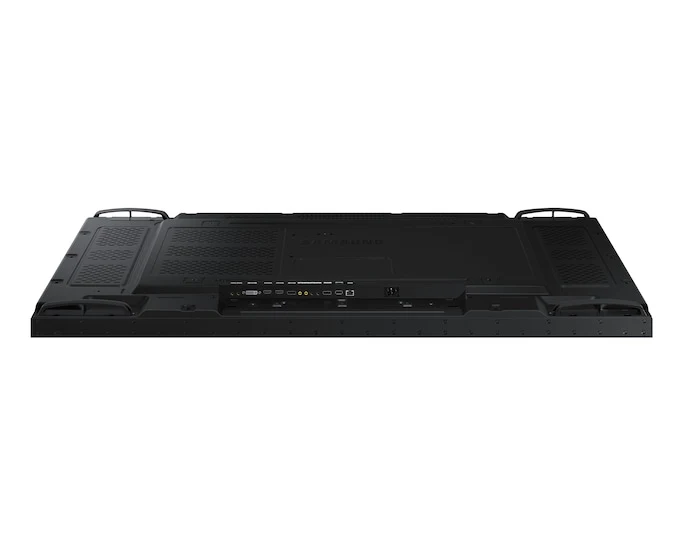

Samsung VM55HX-E — Video Wall VMHX-E Back Black , 55" Video Wall VMHX-E

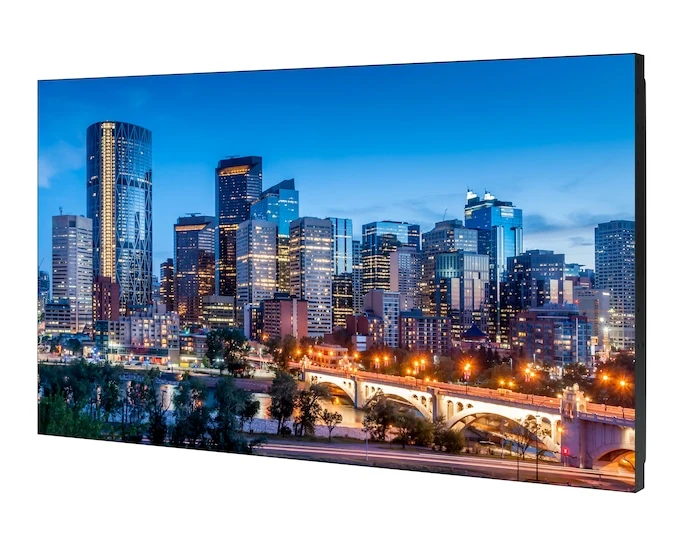

Samsung VM55HX-E — Video Wall VMHX-E Front-Side Black , 55" Video Wall VMHX-E

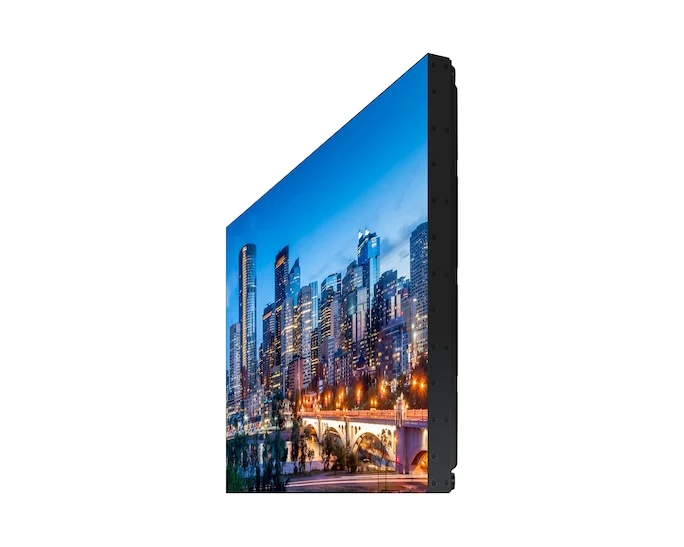

Samsung VM55HX-E — Video Wall VMHX-E R-Perspective Black , 55" Video Wall VMHX-E
Samsung VM55HX-E — Video Wall VMHX-E Dynamic Black , 55" Video Wall VMHX-E

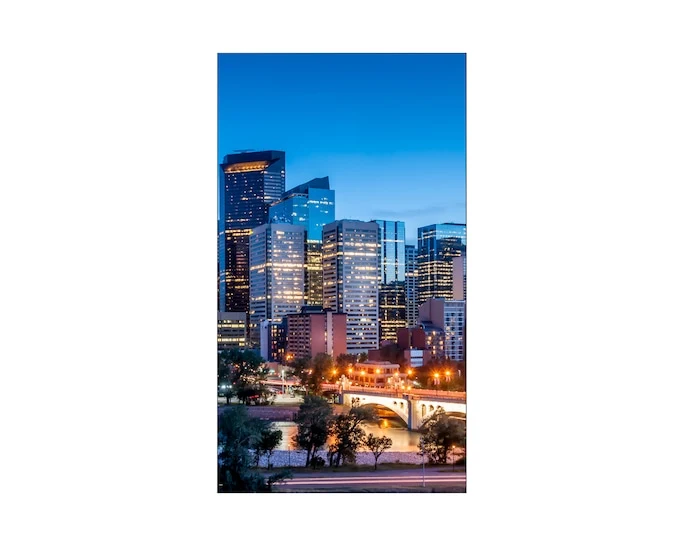

Samsung VM55HX-E — Video Wall VMHX-E Vertical Black , 55" Video Wall VMHX-E

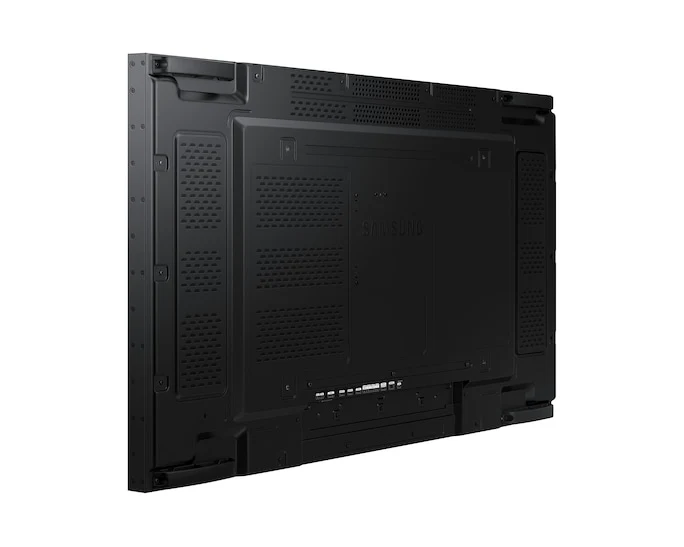

Samsung VM55HX-E — Video Wall VMHX-E Back-L-Perspective Black , 55" Video Wall VMHX-E

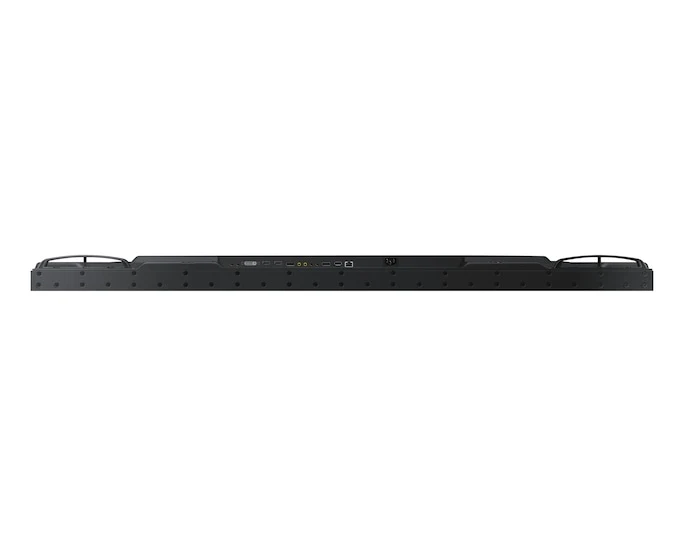

Samsung VM55HX-E — Video Wall VMHX-E Bottom Black , 55" Video Wall VMHX-E

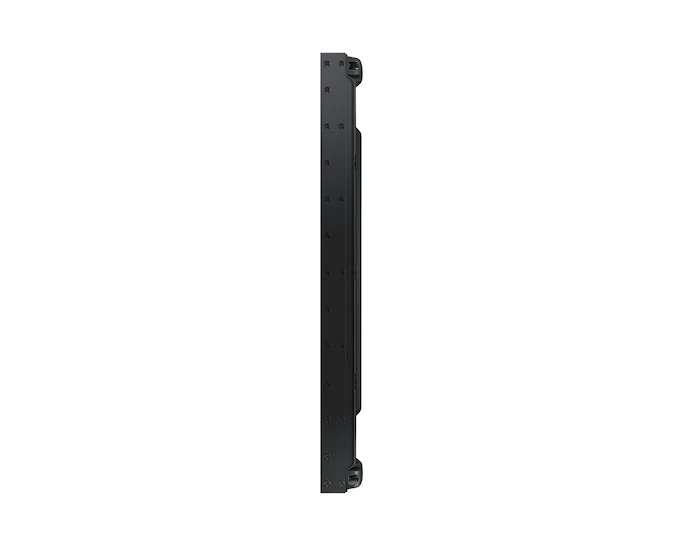

Samsung VM55HX-E — Video Wall VMHX-E Width-Side Black , 55" Video Wall VMHX-E
Samsung VM55HX-E — Video Wall VMHX-E Detail Black , 55" Video Wall VMHX-E

Samsung

Samsung VM55HX-E Full HD Video Wall

Model: VM55HX-E | LH55VMHEBGBXXS

S$3,383.00

Request for Quotation

Full HD video-wall display for commercial installations.

Samsung VM55HX-E is a 55-inch Full HD video-wall display designed for continuous commercial use. Its 1.74 mm bezel-to-bezel width, 500-nit maximum brightness and anti-glare panel support connected visual presentations in retail spaces, lobbies, meeting rooms and control rooms.

Key product features

  • 55-inch IPS panel, 1920 × 1080 resolution
  • 500-nit maximum brightness; 24/7 operation
  • 1.74 mm panel bezel-to-bezel width
  • 25% haze anti-glare panel
  • DisplayPort 1.2 and HDMI connectivity
  • 600 × 400 mm VESA mount

Overview

Continuous commercial display

24/7 operation and 500-nit maximum brightness support business information and presentations.

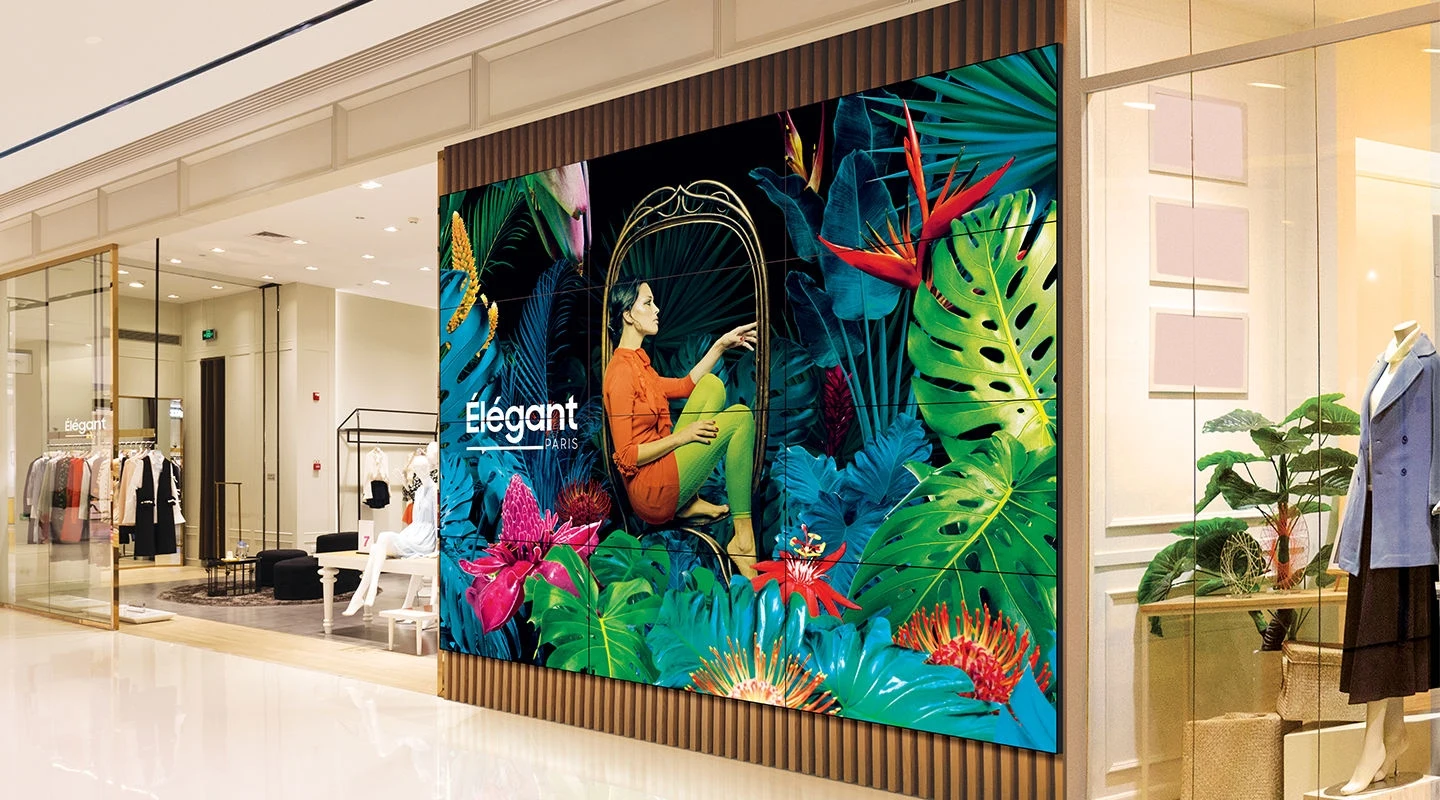

Samsung VM55HX-E — Always-on, space-saving solution with extreme-narrow bezels
Samsung feature illustration; example screen content.

Narrow-bezel installation

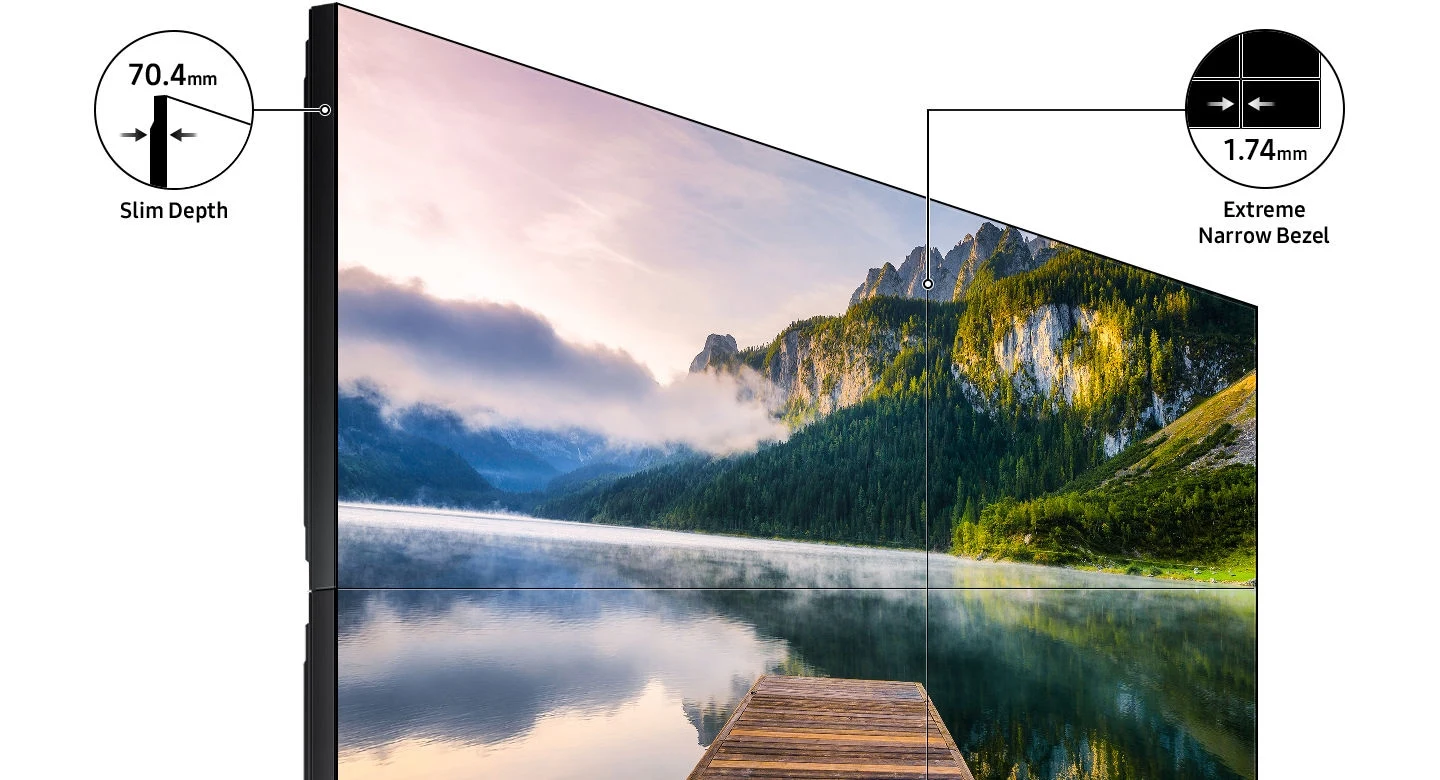

A 70.4 mm cabinet and 1.74 mm bezel-to-bezel width enable closely joined panels. Active-area-to-active-area spacing is 2.49 mm.

Samsung VM55HX-E — Transform any space with high impact visuals
Samsung feature illustration; example screen content.

Wide viewing angles

178° horizontal and vertical viewing angles keep content accessible from different positions.

Samsung VM55HX-E — View content from any angle
Samsung feature illustration; example screen content.

Anti-glare panel

The 25% haze surface helps manage reflections for continuous information display.

Samsung VM55HX-E — Vibrant images in any light
Samsung feature illustration; example screen content.

Picture adjustment

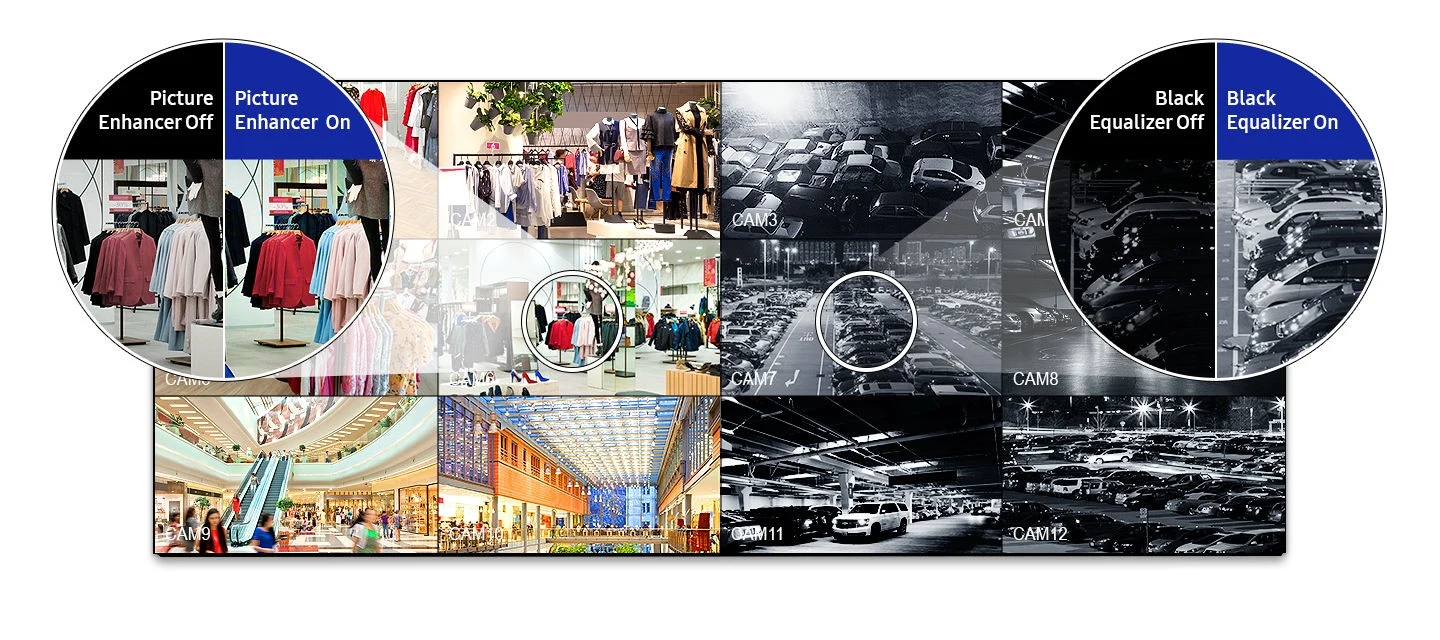

Picture Enhancer adjusts saturation and contrast; Black Equalizer improves dark-detail visibility.

Samsung VM55HX-E — Image enhancement technology
Samsung feature illustration; example screen content.

Mobile-assisted setup

Signage Setup Assistant uses a mobile camera to assist layout configuration and calibration. Confirm device compatibility before deployment.

Samsung VM55HX-E — Single-point mobile solution for digital signage setup
Samsung feature illustration; example screen content.

Multi-screen content

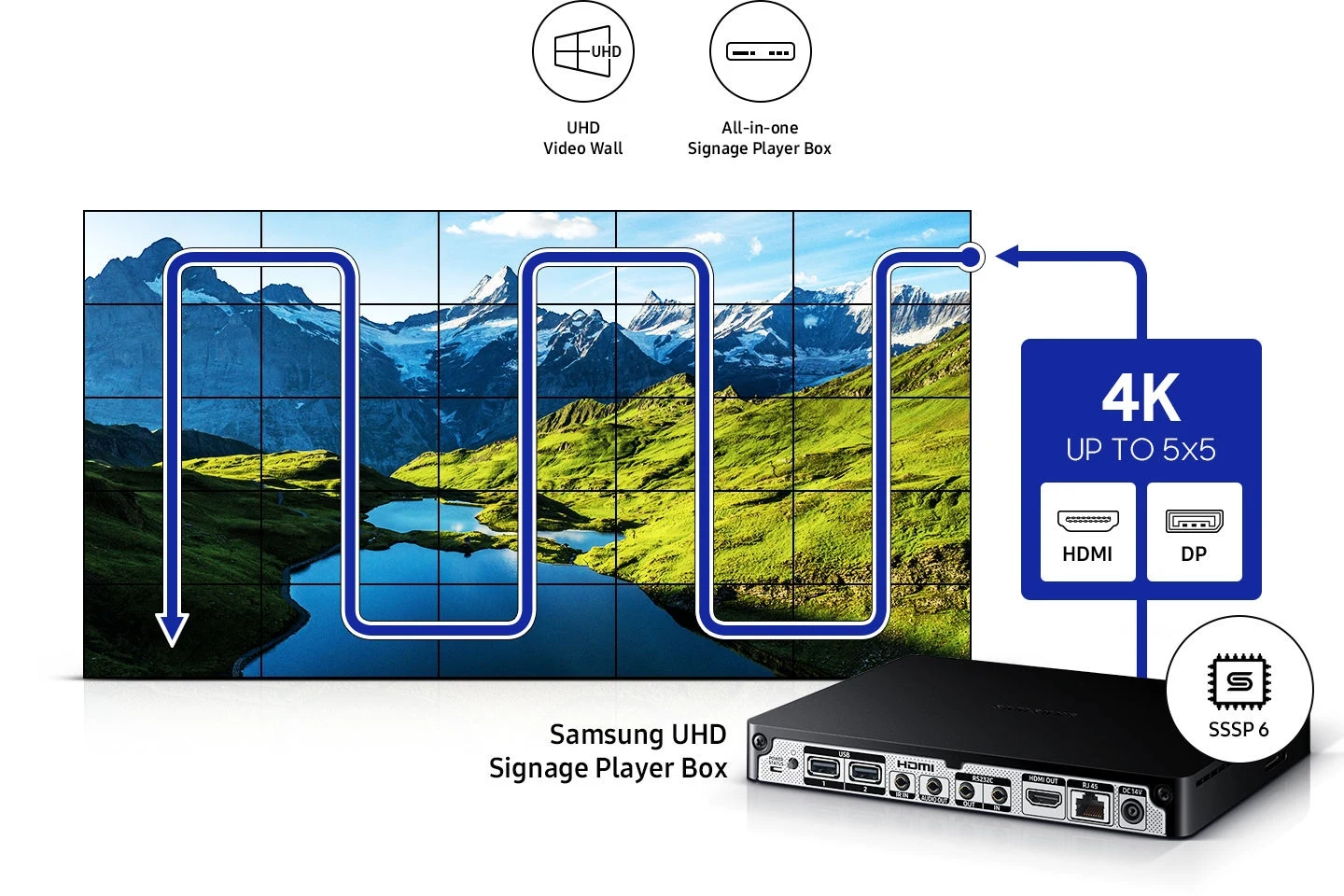

DisplayPort 1.2 or HDMI daisy chaining distributes UHD content across multiple Full HD panels. A separate UHD Signage Player Box provides playback and content-management functions.

Samsung VM55HX-E — Advanced presentation, simplified operation
Samsung feature illustration; example screen content.

Installation protection

EMC Class B, IP5x dust certification and two-step ISTA packaging testing support commercial installation. Special dust such as metal dust is not covered by the dust-operation assurance.

Samsung VM55HX-E — Industry standard certified
Samsung feature illustration; example screen content.

Specifications

Display
Diagonal Size55"
Panel TypeIPS
ResolutionFHD (1920 x 1080)
Pixel Pitch (HxV)0.630 x 0.630 mm
Brightness (Typ)MAX 500 nit
Contrast Ratio1,000:1
Viewing Angle (H/V)178 / 178
Response Time8 (GTG)
Color Gamut (NTSC Coverage)72 %
Glass Haze25 %
H-Scanning Frequency57.3 - 70 kHz
Maximum Pixel Frequency78 MHz
V-Scanning Frequency47 - 63 Hz
Contrast Ratio (Dynamic)100,000:1
Operation Time Support24/7
Connectivity
HDMI In2
DP In1
DVI In1
Version of HDMI2
Version of DP1.2
Version of HDCP2.2
USB1
IR InYes
Audio InYes
Audio OutStereo Mini Jack
Video OutYes
Power OutNo
RS232 InYes
RS232 OutStereo Mini Jack
RJ45 InYes
WiFiNo
Power
Power SupplyAC 100 - 240 V (50/60 Hz)
Power Consumption (On Mode)222 W
Power Consumption (Sleep Mode)0.5 W
Dimension
Set Dimension (WxHxD)1212.2 x 683.0 x 70.4 mm
Package Dimension (WxHxD)1398 x 844 x 257 mm
Weight
Set Weight19.5 kg
Package Weight27.1 kg
Operation Conditions
Temperature0 ~ 40 ℃
Humidity10 ~ 90 %
Mechanical Specification
VESA Mount600 x 400 mm
Bezel WidthB2B : 1.74mm (Panel Bezel to Panel Bezel), 1.3mm(U/L), 0.44mm(R/B) A2A : 2.49mm (Active area to Active area), 1.75mm(U/L), 0.74mm(R/B)
Bezel ColorBlack
Frame MaterialGlossy
Optional Feature
MountYes
StandNo
Certification and Compliance
EMCClass B
Safety62368-1, 60950-1

Business Resources

Samsung VM55HX-E – Product BrochureSamsung VM55HX-E – User Manual
