Samsung VH55C-R Full HD Video Wall

Name: Samsung VH55C-R Full HD Video Wall
Brand: Samsung
SKU: VH55C-R

S$6,159.00

Samsung VH55C-R is a 55-inch Full HD video-wall display with 700-nit maximum brightness, a 0.88 mm combined bezel and continuous 24/7 operation. Wide viewing angles and picture adjustment tools support clear multi-screen presentations in business environments.

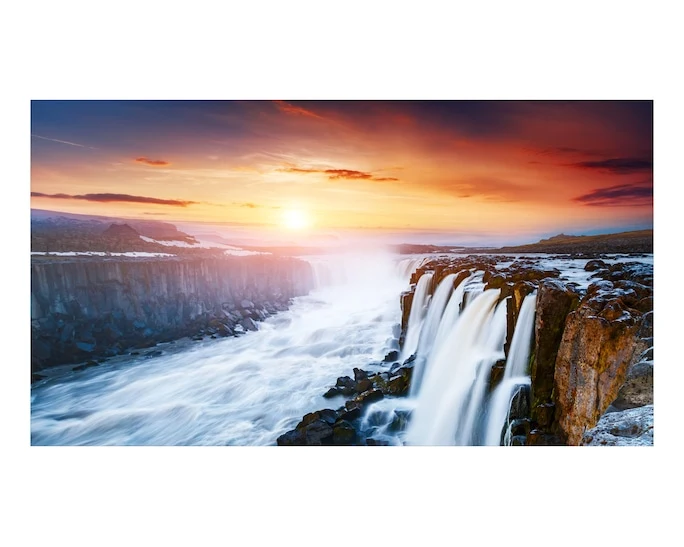

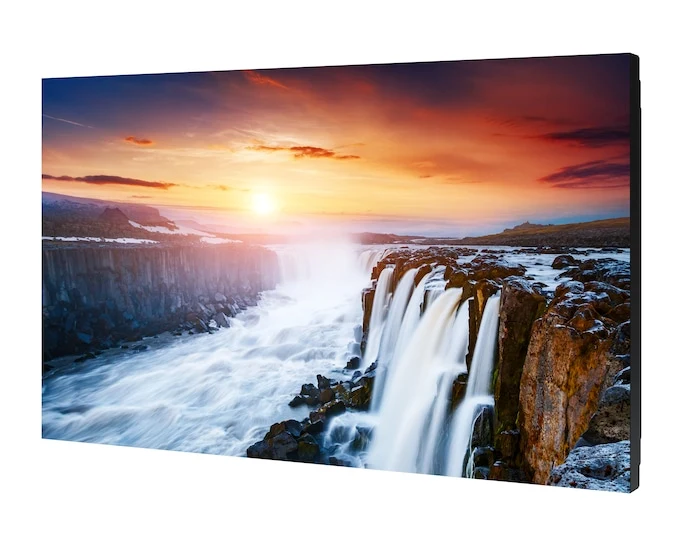

Samsung VH55C-R — front Black, 55" Video Wall VHC-R with Narrow Bezel

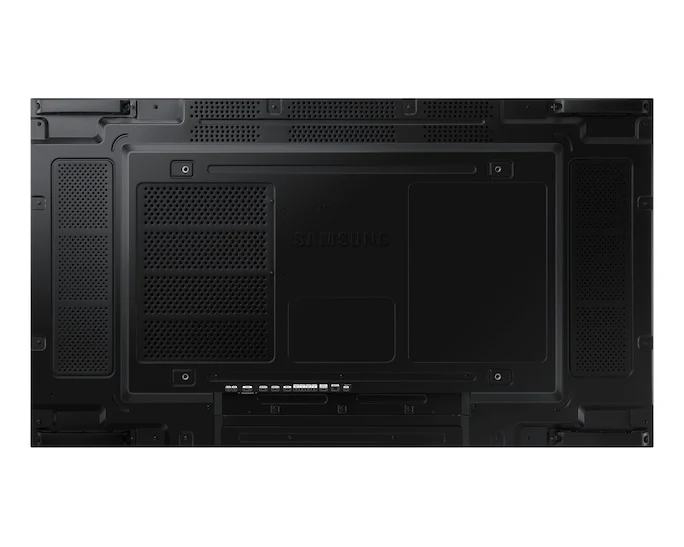

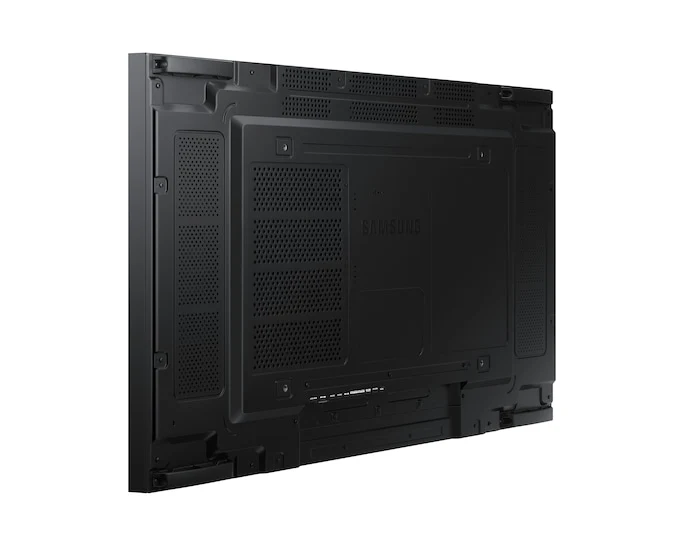

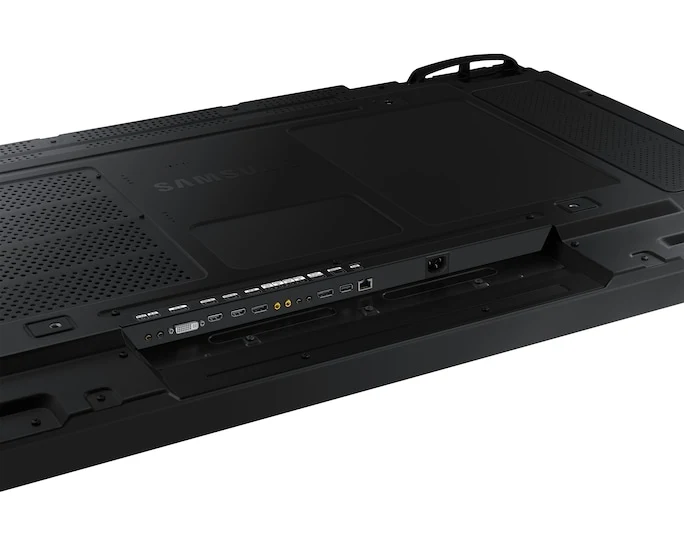

Samsung VH55C-R — back Black, 55" Video Wall VHC-R with Narrow Bezel

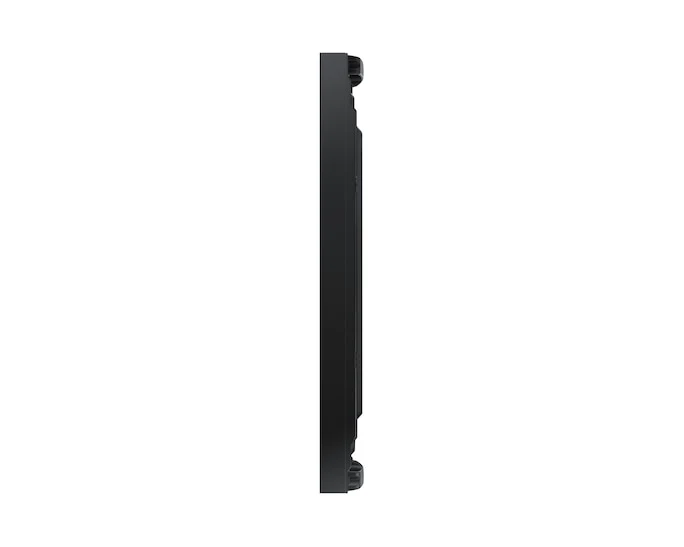

Samsung VH55C-R — front-side Black, 55" Video Wall VHC-R with Narrow Bezel

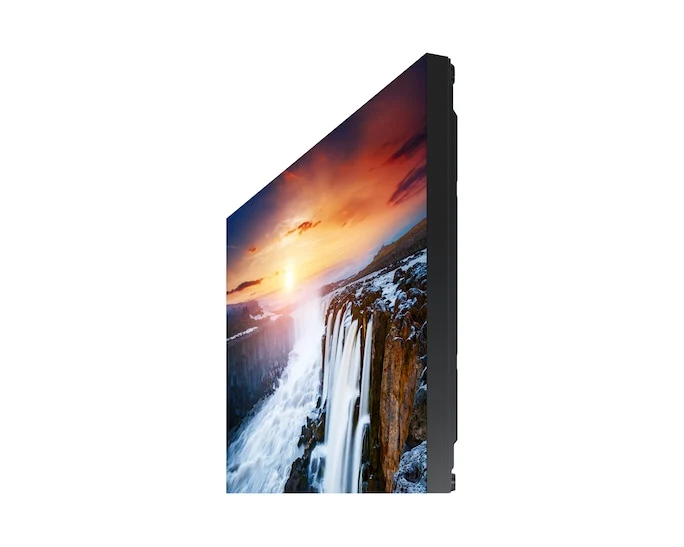

Samsung VH55C-R — front-r-perspective Black, 55" Video Wall VHC-R with Narrow Bezel

Samsung VH55C-R — front-dynamic Black, 55" Video Wall VHC-R with Narrow Bezel

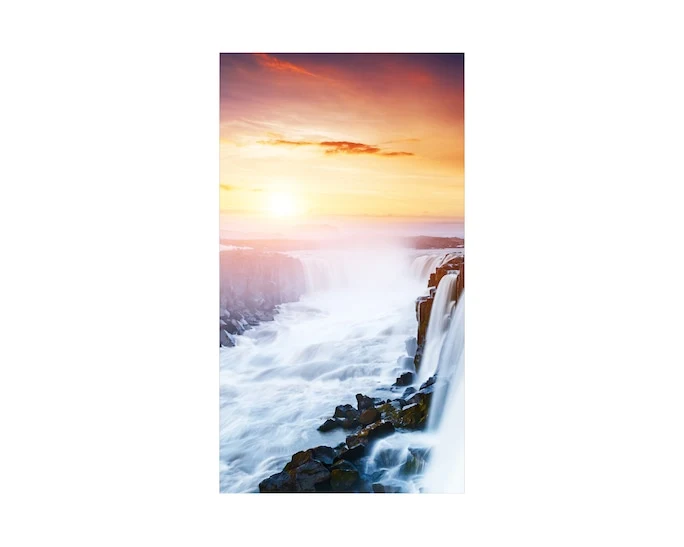

Samsung VH55C-R — vertical Black, 55" Video Wall VHC-R with Narrow Bezel

Samsung VH55C-R — back-l-perspective Black, 55" Video Wall VHC-R with Narrow Bezel

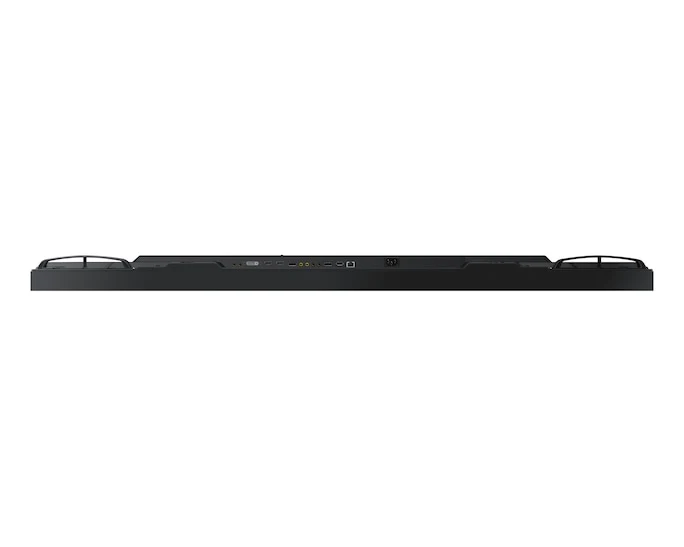

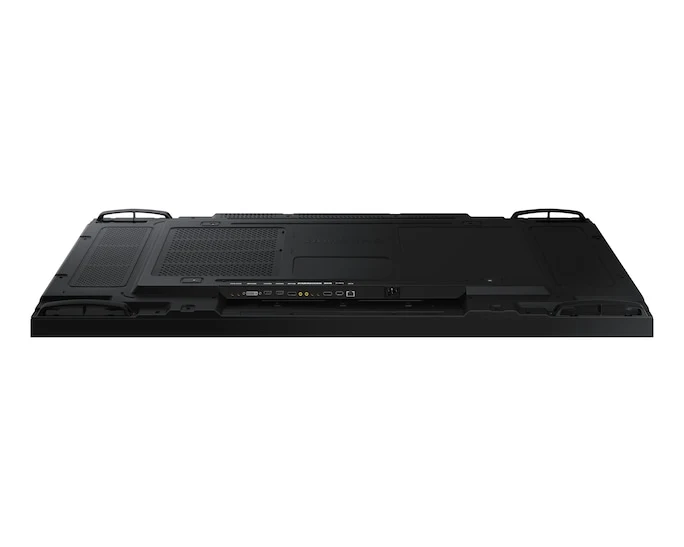

Samsung VH55C-R — bottom Black, 55" Video Wall VHC-R with Narrow Bezel

Samsung

Samsung VH55C-R Full HD Video Wall

Model: VH55C-R | LH55VHCRBGBXXS

S$6,159.00

Size / Model

Request for Quotation

Full HD video-wall display for commercial installations.

Key product features

55-inch IPS panel, 1920 × 1080 resolution
700-nit maximum brightness; 24/7 operation
0.44 mm even bezel; 0.88 mm bezel-to-bezel
178° horizontal and vertical viewing angles
DisplayPort 1.2 and HDMI daisy chaining
600 × 400 mm VESA mount

Overview

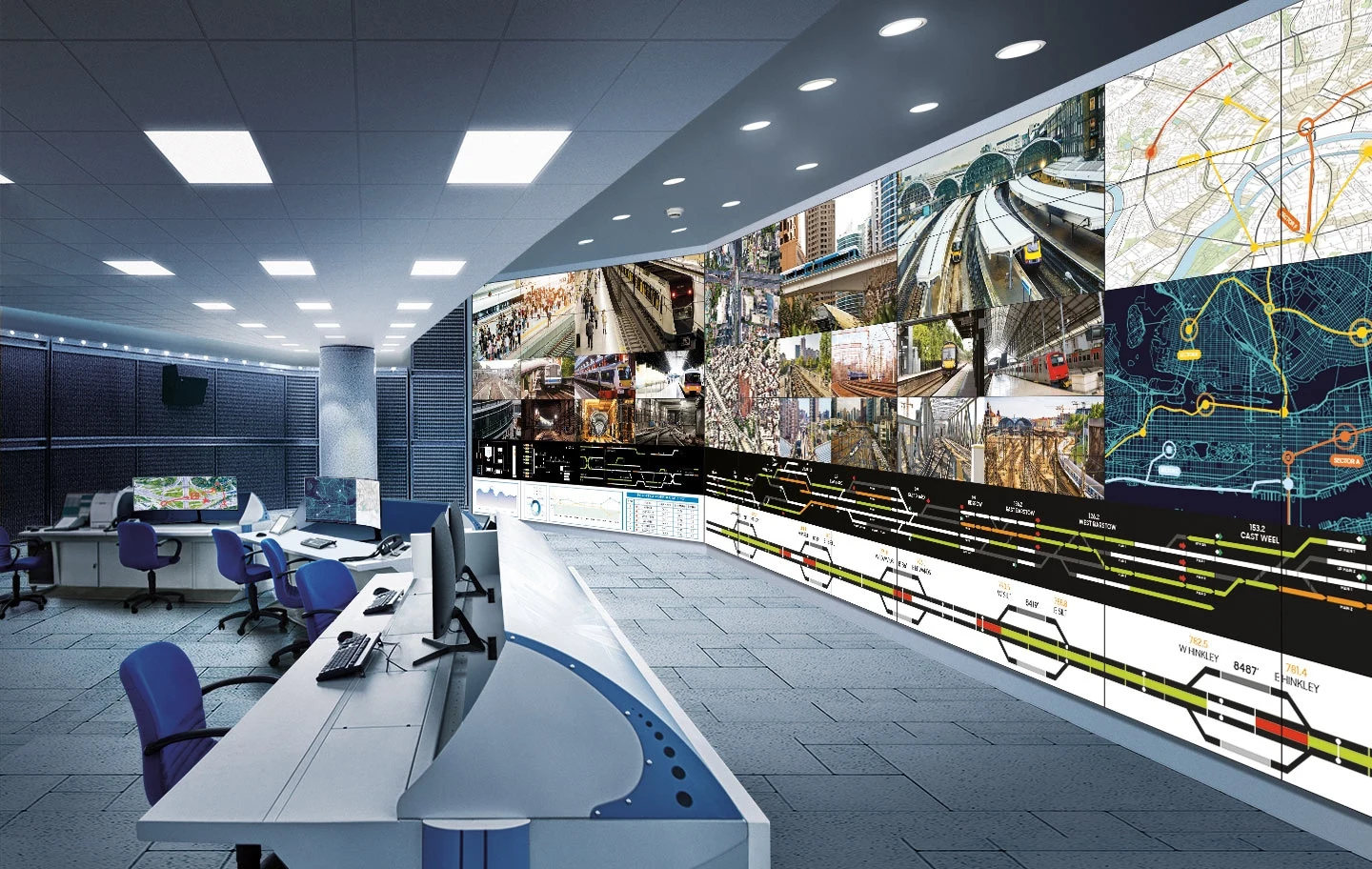

Continuous multi-screen presentation

Full HD panels combine into a video wall for commercial information and presentations.

Samsung VH55C-R — Seamless video walls with razor-thin bezels — Samsung feature illustration; example screen content.

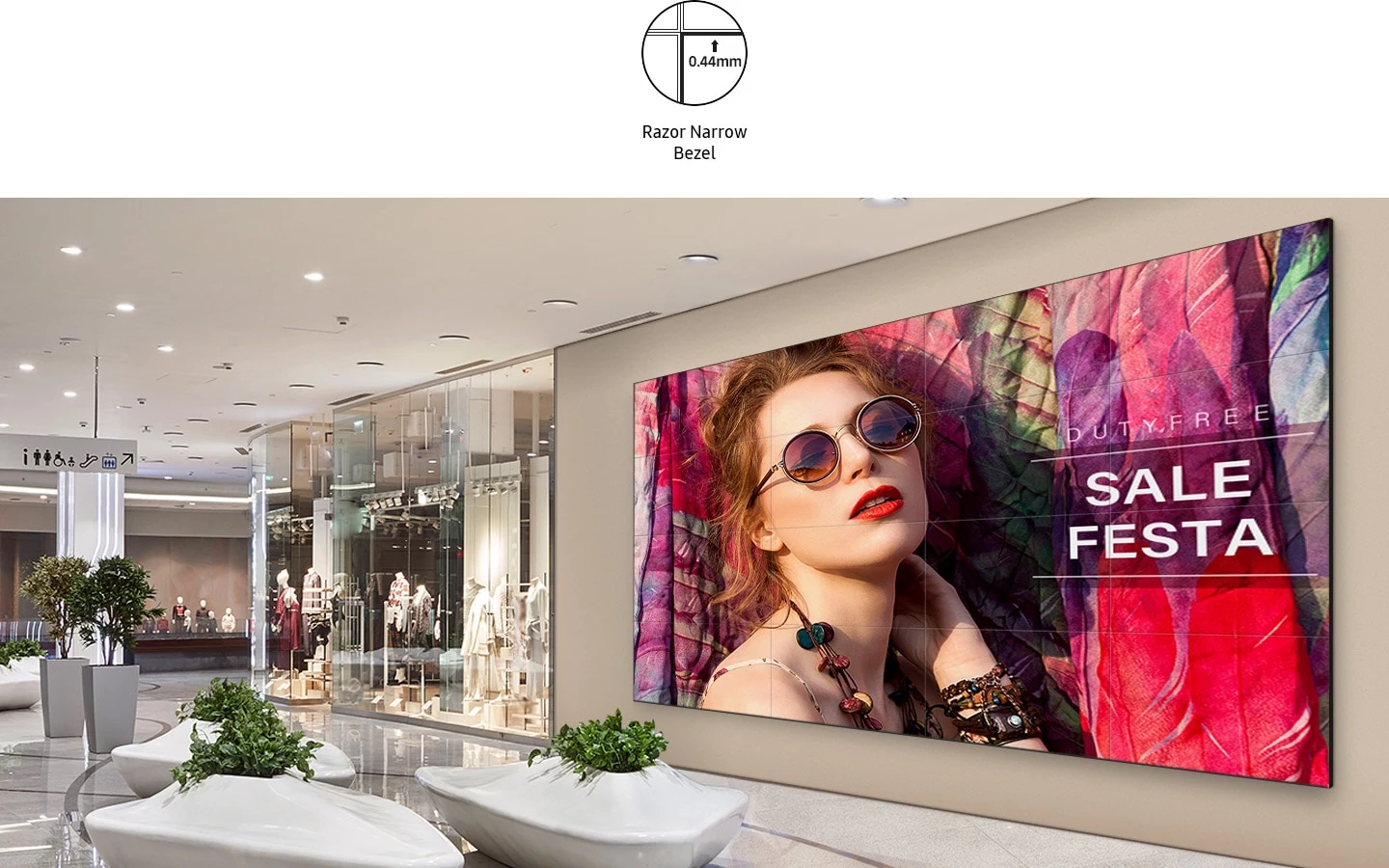

Narrow joins

The 0.44 mm edges create a 0.88 mm bezel-to-bezel join.

Samsung VH55C-R — Nearly invisible 0.44 mm bezel — Samsung feature illustration; example screen content.

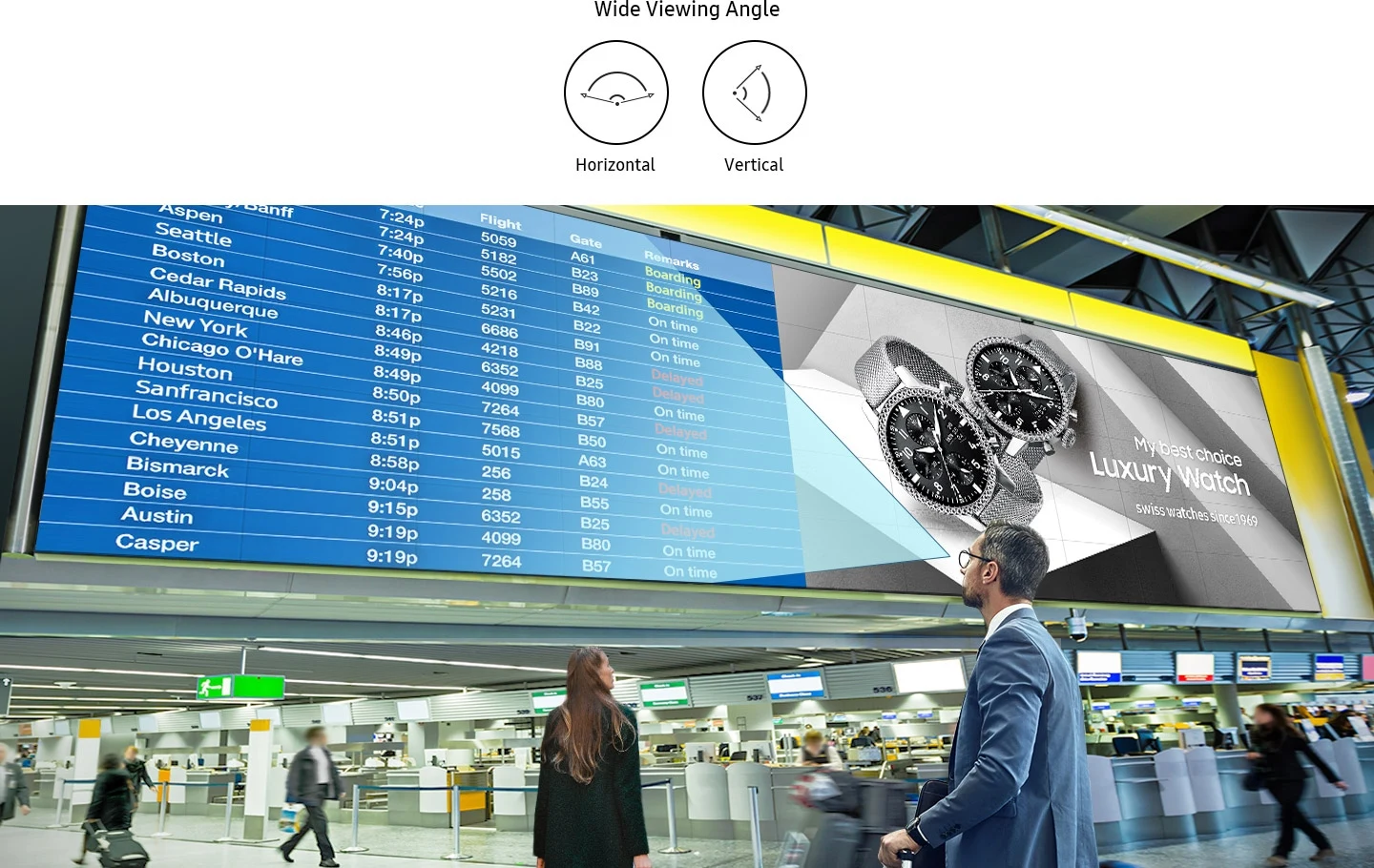

Off-centre viewing

178° viewing angles support audiences viewing from different positions.

Samsung VH55C-R — View content from any angle — Samsung feature illustration; example screen content.

Picture adjustment

Picture Enhancer adjusts colour and contrast; Black Equalizer improves dark-detail visibility.

Samsung VH55C-R — Image enhancement technology — Samsung feature illustration; example screen content.

Slim installation

The cabinet measures 69.9 mm deep.

Samsung VH55C-R — Modern, slim design — Samsung feature illustration; example screen content.

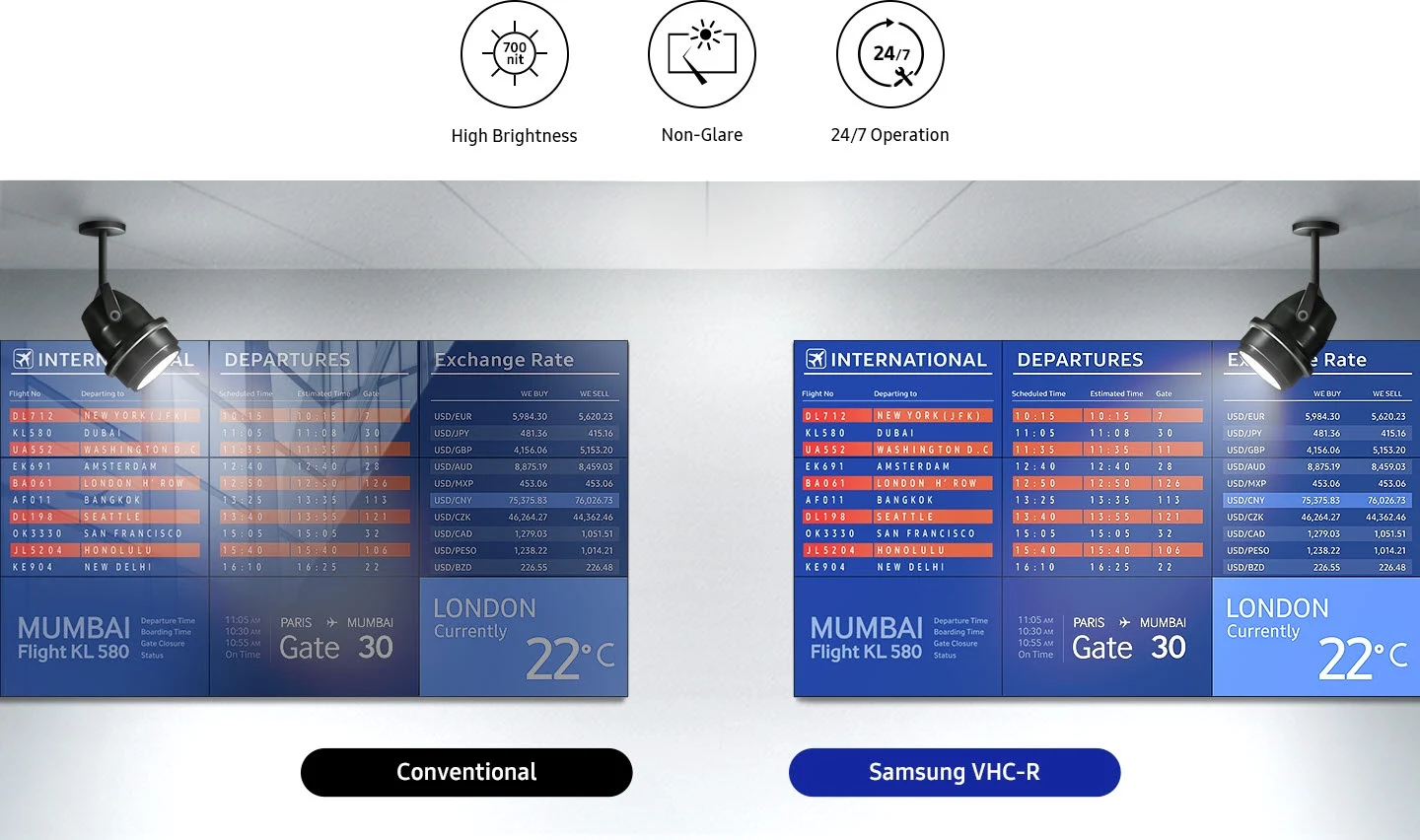

Around-the-clock visibility

700-nit maximum brightness, a non-glare surface and 24/7 support suit continuous displays.

Samsung VH55C-R — Vibrant images 24/7 — Samsung feature illustration; example screen content.

Calibration options

Color Expert Pro supports fine-tuning; its mobile counterpart adjusts white balance in arrays up to 3 × 3.

Samsung VH55C-R — Comprehensive calibration to fit your needs — Samsung feature illustration; example screen content.

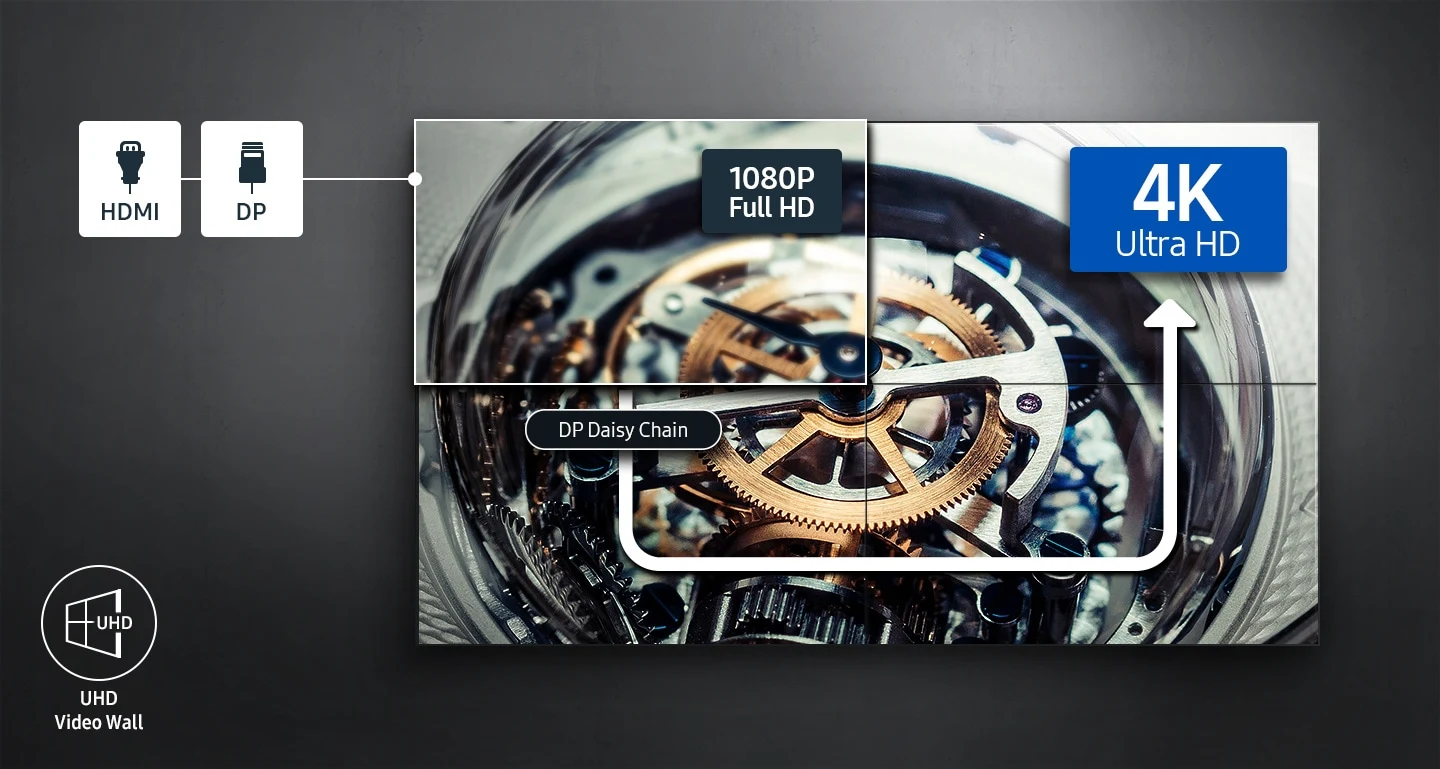

UHD across multiple panels

DisplayPort 1.2 and HDMI support UHD distribution across up to 5 × 5 panels. Each panel remains Full HD.

Samsung VH55C-R — Advanced UHD presentation — Samsung feature illustration; example screen content.

Certified protection

EMC Class B and IP5x certification complement ISTA-tested packaging. IP5x excludes guarantees for special dust such as metal dust.

Samsung VH55C-R — Industry standard certified — Samsung feature illustration; example screen content.

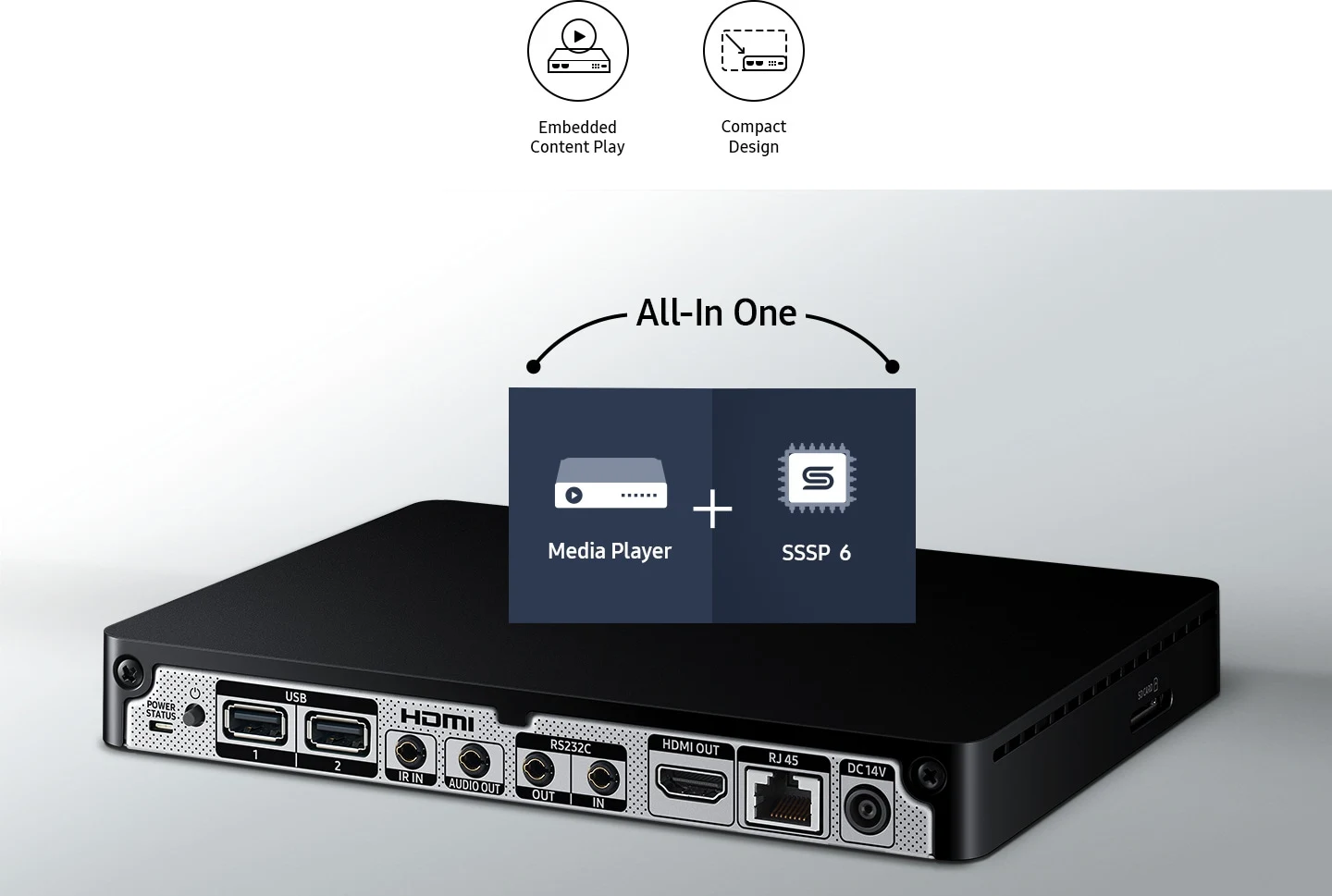

Optional playback hardware

The separately sold UHD Signage Player Box adds MagicINFO S Player 6 and SSSP 6.

Samsung VH55C-R — Intuitive all-in-one operations — Samsung feature illustration; example screen content.

Specifications

Display

Diagonal size	55 inches
Panel type	IPS
Resolution	1920 x 1080
Pixel pitch H x V	0.63 x 0.63 mm
Brightness typical	MAX 700 nit
Contrast ratio	1100:1
Viewing angle H/V	178/178 degrees
Response time	8 ms
Color gamut	72%
Glass haze	28%
Horizontal scanning frequency	57.3 kHz – 70 kHz
Maximum pixel frequency	78 MHz
Vertical scanning frequency	47 Hz – 63 Hz
Dynamic contrast ratio	140000:1
Operating time	24/7

Connectivity

HDMI input	2
DisplayPort input	1
DVI input	1
HDMI version	2
DisplayPort version	1.2
HDCP version	2.2
USB	1
IR input	Yes
Audio input	Yes
Audio output	Stereo mini jack
Video output	Yes
Power output	No
RS232 input	Yes
RS232 output	Stereo mini jack
RJ45 input	Yes
Wi-Fi	No

Power

Power supply	AC 100–240 V 50/60 Hz
On-mode power consumption	250 W
Sleep-mode power consumption	0.5 W

Dimensions

Set W x H x D	1211.0 x 681.7 x 69.9 mm
Package W x H x D	1414.0 x 844.0 x 257.0 mm

Weight

Set weight	16.8 kg
Package weight	25.1 kg

Operating conditions

Temperature	0–40 °C
Humidity	10–90%

Mechanical specification

VESA mount	600 x 400 mm
Bezel width	0.44 mm even
Bezel color	Black
Frame material	Glossy

Optional features

Mount	Yes
Stand	No

Certification and compliance

EMC	FCC (USA) Part 15 Subpart B Class B; CE EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019; VCCI-CISPR32:2015; KC KS C 9832/KS C 9835; RCM AS/NZS CISPR32:2015; CCC GB/T 9254-2008, GB 17625.1-2012; BSMI CNS 13438
Safety	CB IEC62368-1/EN62368-1; CCC GB 4943.1-2011; Singapore PSB+IEC62368-1; NOM-019-SCFI-1998; IRAM IEC62368-1; SIRC SASO+IEC62368-1; BIS IEC60950-1/IS13252; KC K60950-1; EAC IEC60950-1; BSMI (Taiwan): BSMI+IEC60950-1; RCM IEC62368-1/AS/NZS62368-1; UL cUL62368-1; CSA cUL (source ends here)
