Samsung VH55C-E Full HD Video Wall

Name: Samsung VH55C-E Full HD Video Wall
Brand: Samsung
SKU: VH55C-E

S$4,238.00

The Samsung VH55C-E is a 55-inch Full HD video wall display with 700-nit brightness and a 1.74 mm bezel-to-bezel design. It supports 24/7 operation and provides HDMI, DisplayPort and DVI connectivity for commercial video wall installations.

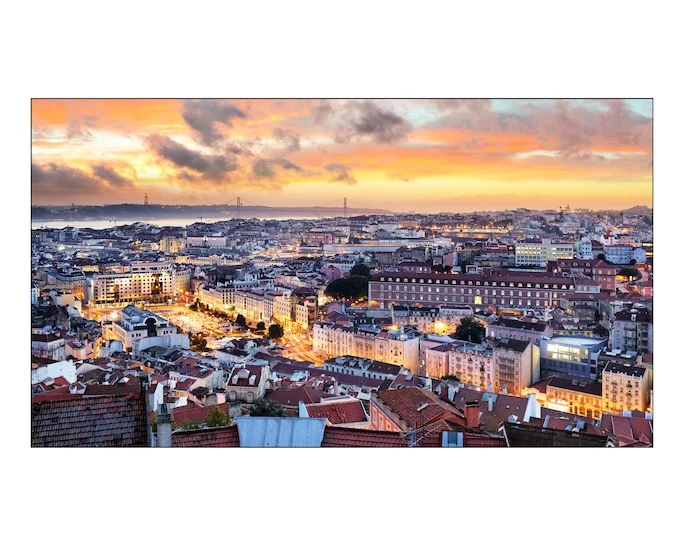

Samsung VH55C-E — front Black, 1.38 m VH55C-E Extreme Narrow Bezel Video Wall

Samsung VH55C-E — back Black, 1.38 m VH55C-E Extreme Narrow Bezel Video Wall

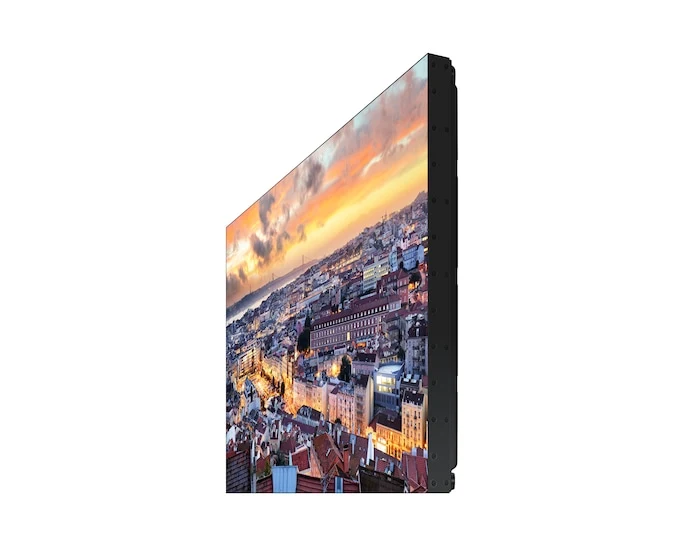

Samsung VH55C-E — front-side Black, 1.38 m VH55C-E Extreme Narrow Bezel Video Wall

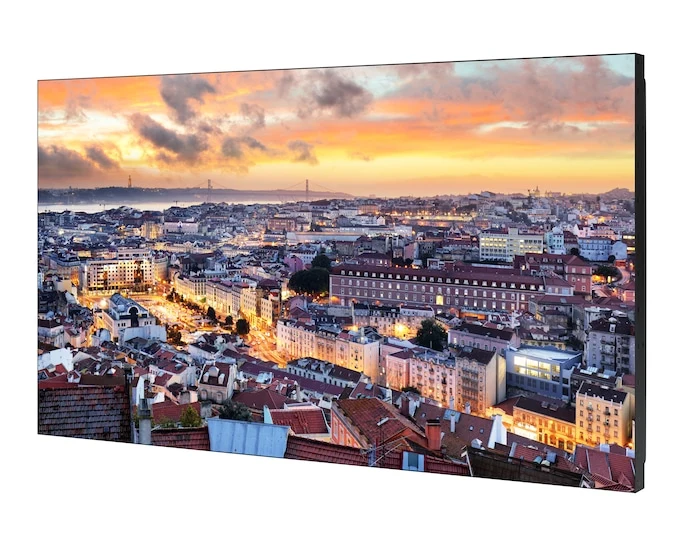

Samsung VH55C-E — r-perspective Black, 1.38 m VH55C-E Extreme Narrow Bezel Video Wall

Samsung VH55C-E — dynamic Black, 1.38 m VH55C-E Extreme Narrow Bezel Video Wall

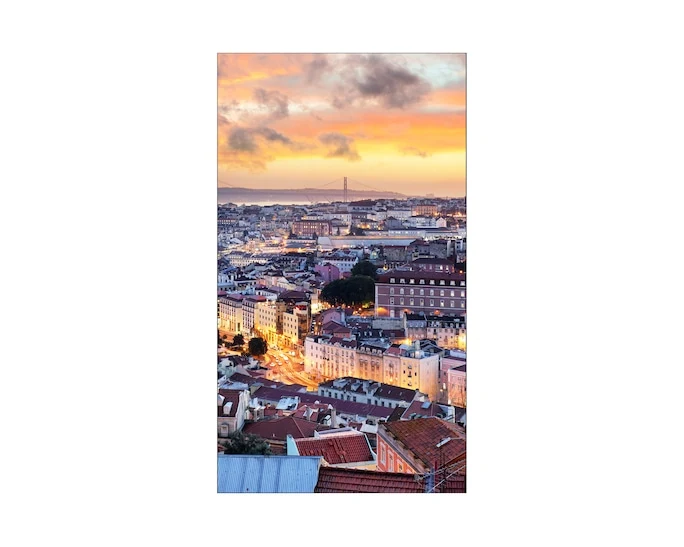

Samsung VH55C-E — vertical Black, 1.38 m VH55C-E Extreme Narrow Bezel Video Wall

Samsung VH55C-E — back-l-perspective Black, 1.38 m VH55C-E Extreme Narrow Bezel Video Wall

Samsung VH55C-E — bottom Black, 1.38 m VH55C-E Extreme Narrow Bezel Video Wall

Samsung

Samsung VH55C-E Full HD Video Wall

Model: VH55C-E | LH55VHCEBGBXXS

S$4,238.00

Size / Model

Request for Quotation

A 55-inch video wall display for continuous commercial use.

Key product features

55-inch Full HD display
700-nit brightness
1.74 mm panel bezel-to-bezel width
24/7 operation
HDMI, DisplayPort and DVI inputs

Overview

Continuous commercial display

The 700-nit display supports 24/7 operation for visual communications in commercial spaces.

The VHC-E video wall is installed on the outer wall of the shopping mall, and an advertisement screen is displayed. — Manufacturer illustration; screen content is illustrative.

Narrow screen joins

A 1.74 mm panel bezel-to-bezel width reduces gaps between adjoining screens.

VHC-E video wall product explains 7.04 cm Slim Depth, 0.174 cm Extreme Narrow Bezel. — Manufacturer illustration; screen content is illustrative.

Wide viewing angles

The IPS panel supports 178-degree horizontal and vertical viewing angles.

The VHC-E video wall product stands in front and side, and has a 178° Horizontal & Vertical Icon. — Manufacturer illustration; screen content is illustrative.

Reduced reflections

A 28% haze panel helps reduce glare while preserving visible content.

Conventional Glare Panel and Samsung VHC-E are compared. There are icons such as HAZE 28% Non-Glare Panel, 1,000:1 High Contrast Ratio, 24/7 Operation at the top. — Manufacturer illustration; screen content is illustrative.

Picture adjustment

Picture Enhancer adjusts contrast and saturation; Black Equalizer helps reveal dark details.

Various screens are displayed on the CCTV monitor, and Picture Enhancer and Black Equalizer ON/OFF are compared. — Manufacturer illustration; screen content is illustrative.

Display calibration

Factory tuning supports consistency. Color Expert Pro offers further adjustment, with mobile white-balance calibration for arrays up to 3 × 3.

Comparing the state before and after the calibration of the video wall using a phone. There are Factory Calibration and Samsung Color Expert Software icons. — Manufacturer illustration; screen content is illustrative.

Video wall connections

DisplayPort and HDMI support connected video walls. The illustrated Samsung player is optional.

Up to 5X5, 4K signals are transmitted from All-in-one Samsung UHD Signage Player Box with SSSP6 to UHD Video Wall via HDMI or DP. — Manufacturer illustration; screen content is illustrative.

Protection and packaging

Samsung identifies IP5x dust protection, EMC Class B compliance and tested packaging for the VHC-E series. IP5x does not guarantee operation with every dust type, including metal dust.

Manufacturer illustration; screen content is illustrative.

Specifications

Display

Diagonal Size	1.38 m
Panel Type	IPS
Resolution	1,920 x 1,080
Pixel Pitch (HxV)	0.63x0.63
Brightness (Typ)	MAX 700 nit
Contrast Ratio	1,000:1
Viewing Angle (H/V)	178/178
Response Time	8ms
Colour Gamut	72 %
Glass Haze	28 %
H-Scanning Frequency	57.3kHz ~ 70kHz
Maximum Pixel Frequency	78MHz
V-Scanning Frequency	47Hz ~ 63Hz
Contrast Ratio (Dynamic)	140,000:1
Operation Time Support	24/7

Connectivity

HDMI In	2
DP In	1
DVI In	1
Version of HDMI	2
Version of DP	1.2
Version of HDCP	2.2
USB	1
IR In	Yes
Audio In	Yes
Audio Out	Stereo Mini Jack
Video Out	Yes
Power Out	No
RS232 In	Yes
RS232 Out	Stereo Mini Jack
RJ45 In	Yes
WiFi	No

Power

Power Supply	AC100-240V 50/60Hz
Power Consumption (On Mode)	250 W
Power Consumption (Sleep Mode)	0.5 W

Dimension

Set Dimension (WxHxD)	1.21 m x 68.3 cm x 7.04 cm
Package Dimension (WxHxD)	1.39 m x 84.4 cm x 25.7 cm

Product Weight

Set Weight	19.5 kg

Operation Conditions

Temperature	0℃~ 40℃

Mechanical Specification

VESA Mount	60 cm x 40 cm
Bezel Width	B2B : 0.174 cm (Panel Bezel to Panel Bezel), 0.13 cm(U/L), 0.044 cm(R/B) A2A : 0.249 cm (Active area to Active area), 0.175 cm(U/L), 0.074 cm(R/B)
Bezel Colour	Black
Frame Material	Glossy

Optional Feature

Mount	Yes
Stand	No

Business Resources

Samsung VH55C-E – User Manual
