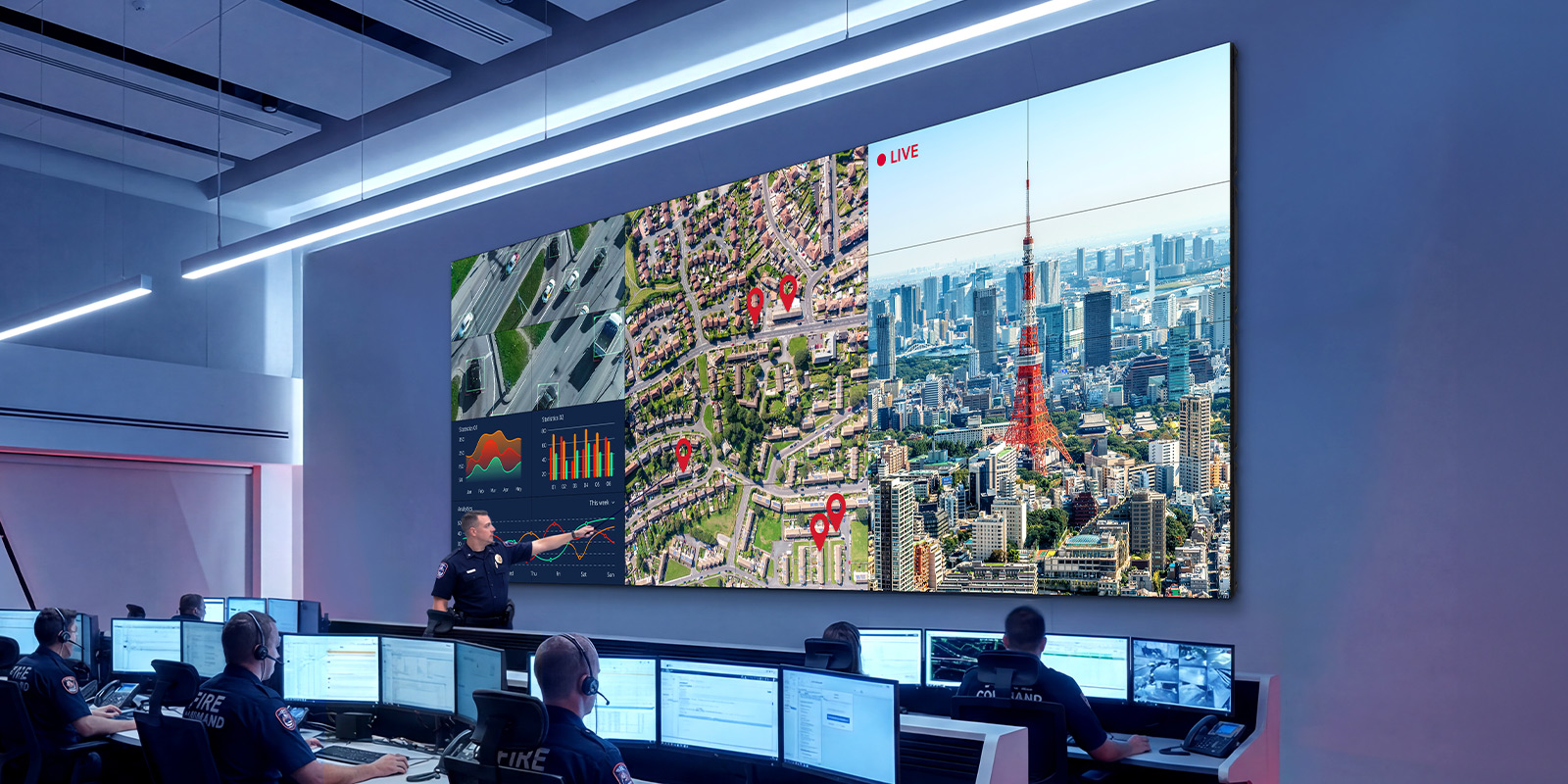

The LG 55VM5R is a 55-inch Full HD video wall display with 500-nit typical brightness and a 1.7 mm panel-to-panel bezel. LG webOS 6.1, image synchronisation and 24/7 operation support multi-screen installations in control rooms, corporate spaces and public information environments.

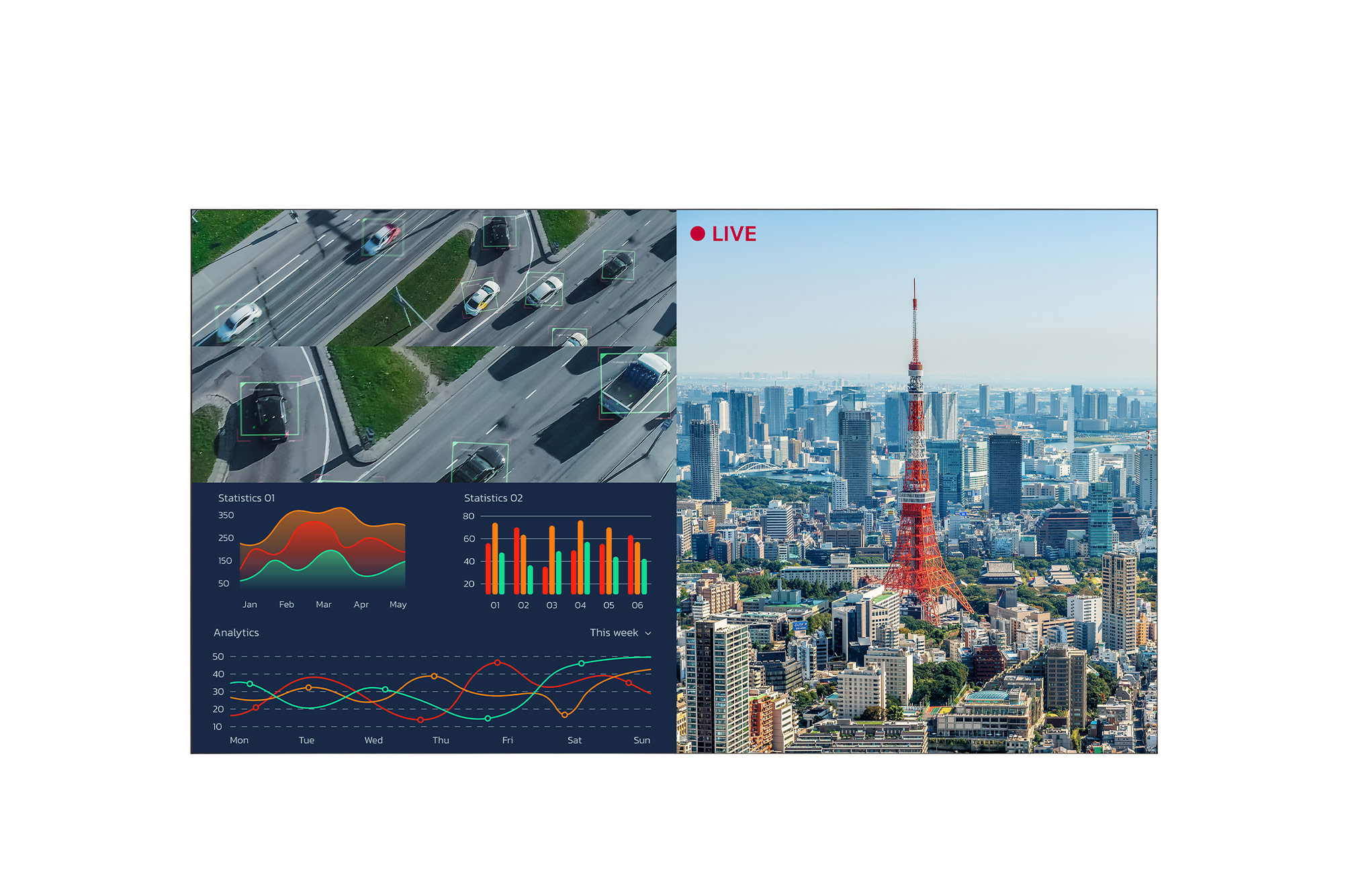

Select a thumbnail or swipe. Select the main image to view full size. Manufacturer screen content is illustrative.
LG
Model: LG 55VM5R
Screen size: 55″
S$3,660.22
55-inch Full HD video wall display with a 1.7 mm panel-to-panel bezel.
The LG 55VM5R is a 55-inch Full HD video wall display with 500-nit typical brightness and a 1.7 mm panel-to-panel bezel. LG webOS 6.1, image synchronisation and 24/7 operation support multi-screen installations in control rooms, corporate spaces and public information environments.
A Full HD video wall display designed for tiled business installations, combining narrow bezels with LG webOS content and control functions.

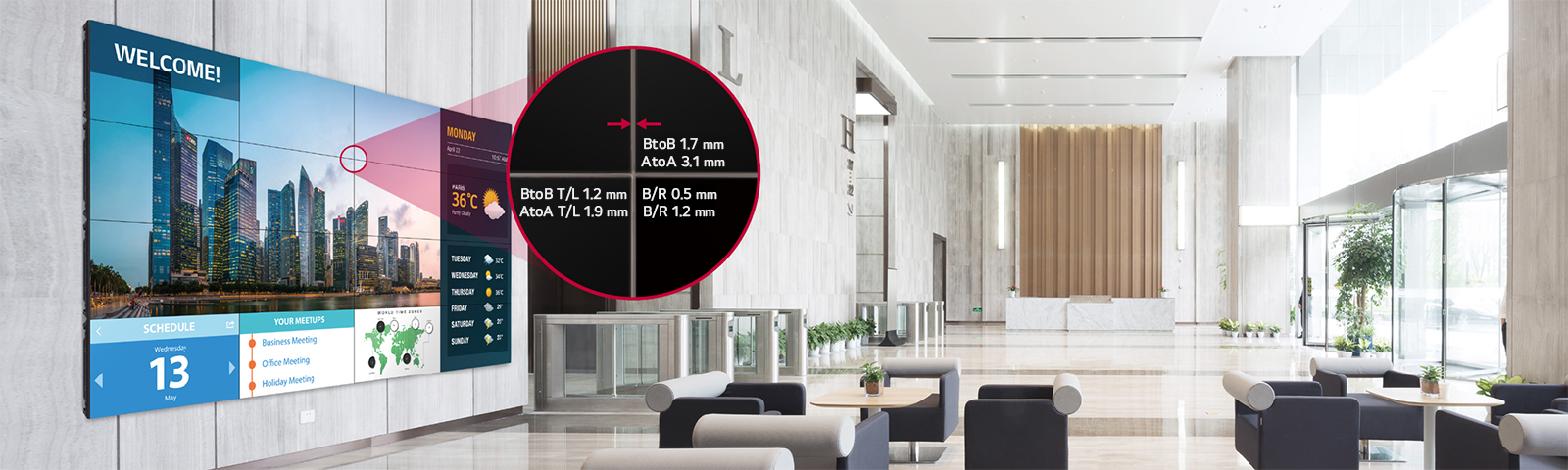

The 1.7 mm panel-to-panel bezel reduces visible interruptions between assembled screens for large-scale content presentation.

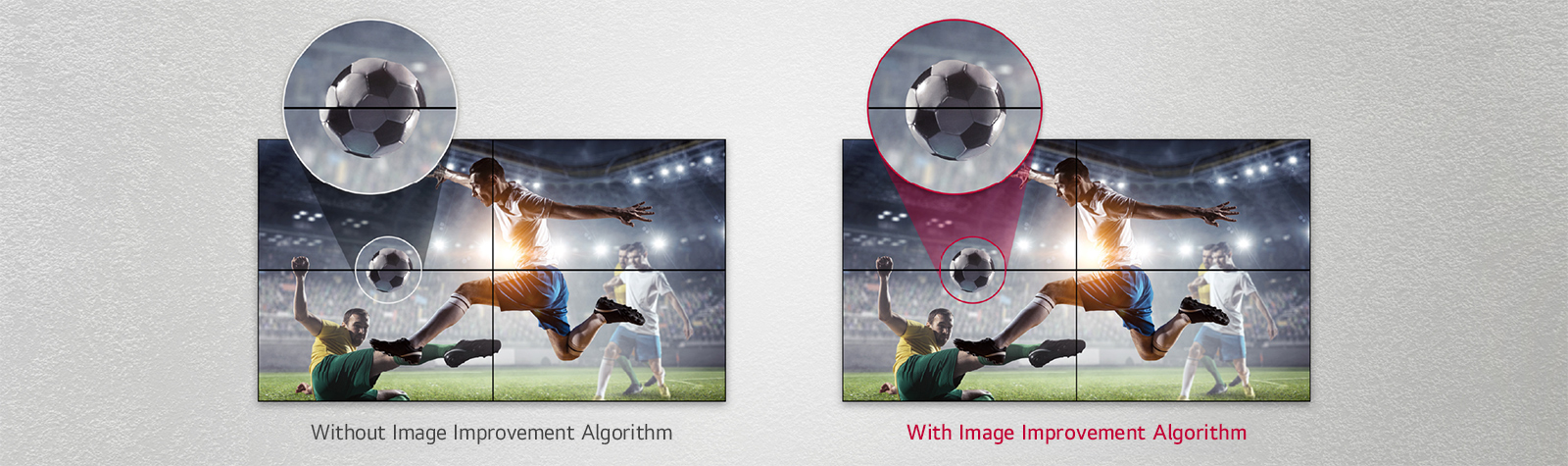

Image Sync Enhancement adjusts fast-moving content around bezel boundaries to improve continuity across tiled displays.

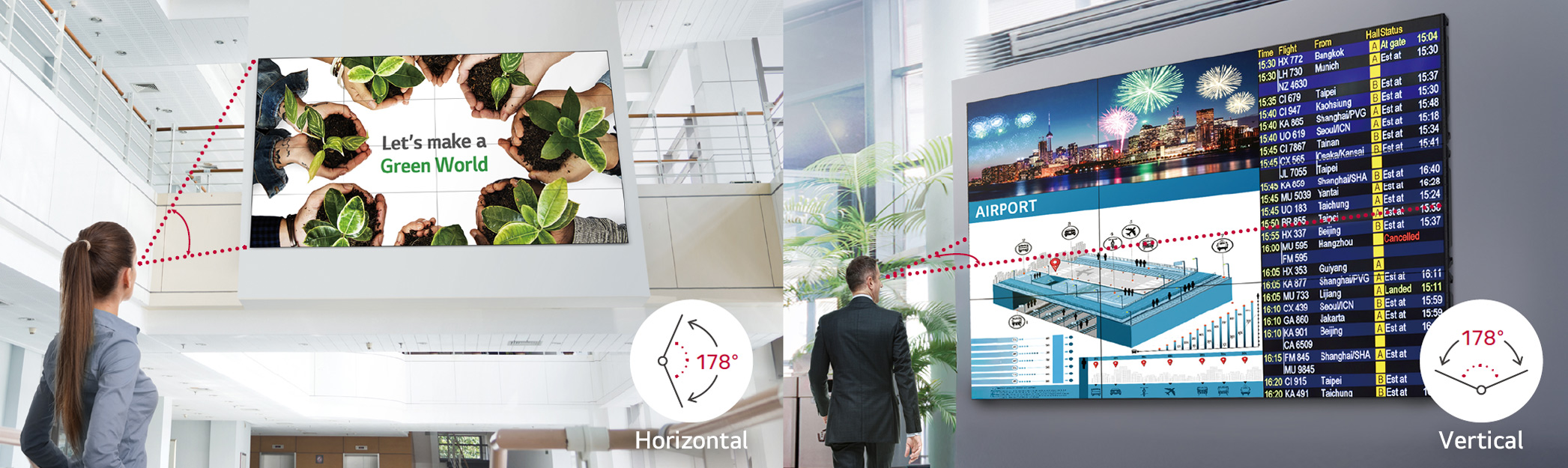

The 178-degree horizontal and vertical viewing angles support visibility from different positions. Manufacturer test results may vary with installation and measurement conditions.

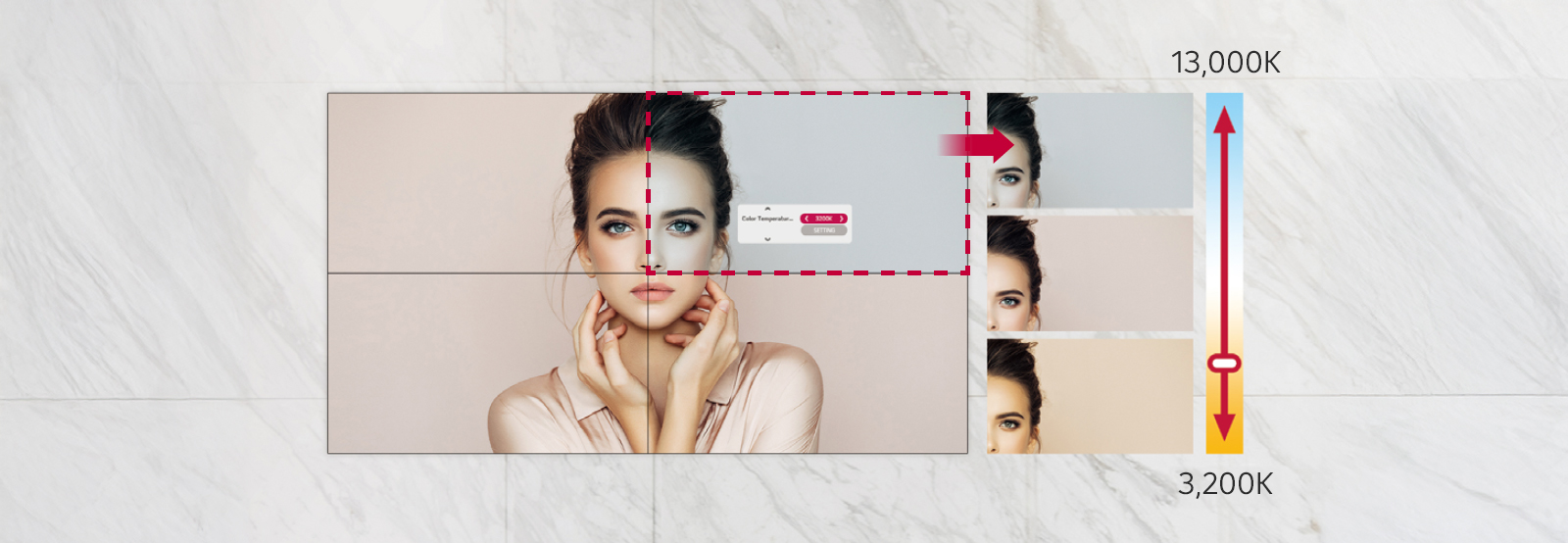

Colour temperature can be adjusted with a remote control from 3,200 K to 13,000 K in 100 K increments.

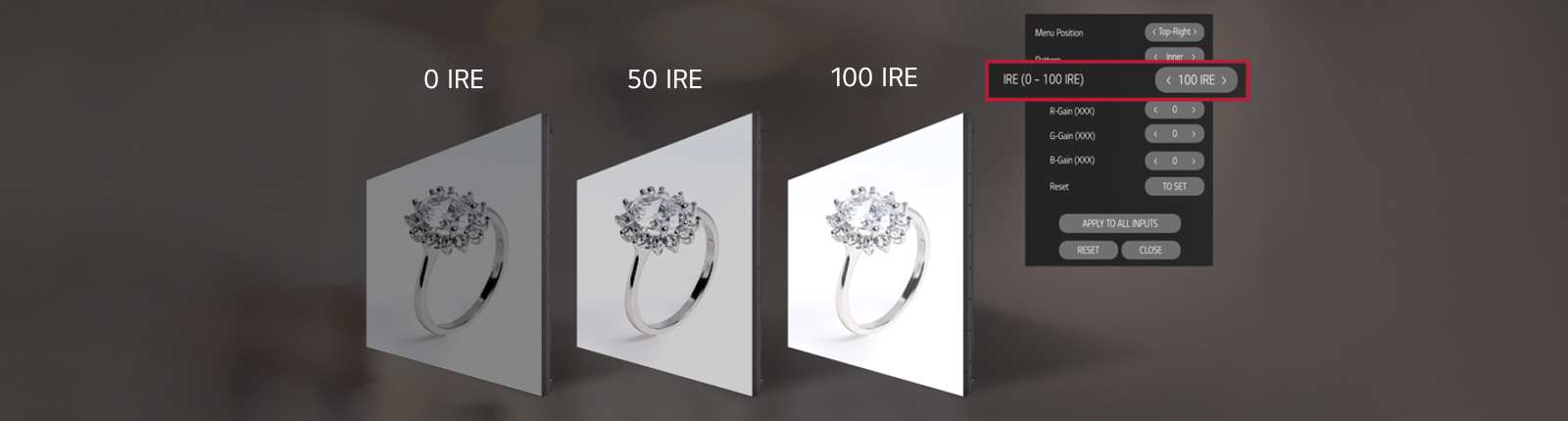

Individual red, green and blue values and the IRE scale allow detailed white-balance adjustment.

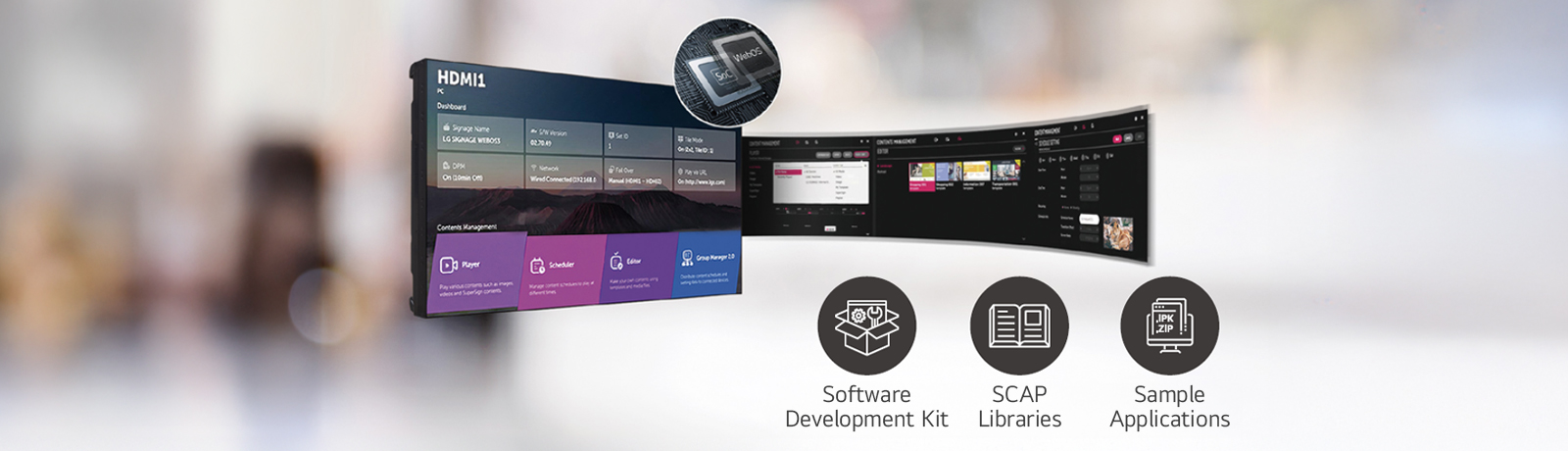

LG webOS 6.1 supports multitasking through a graphical signage interface.

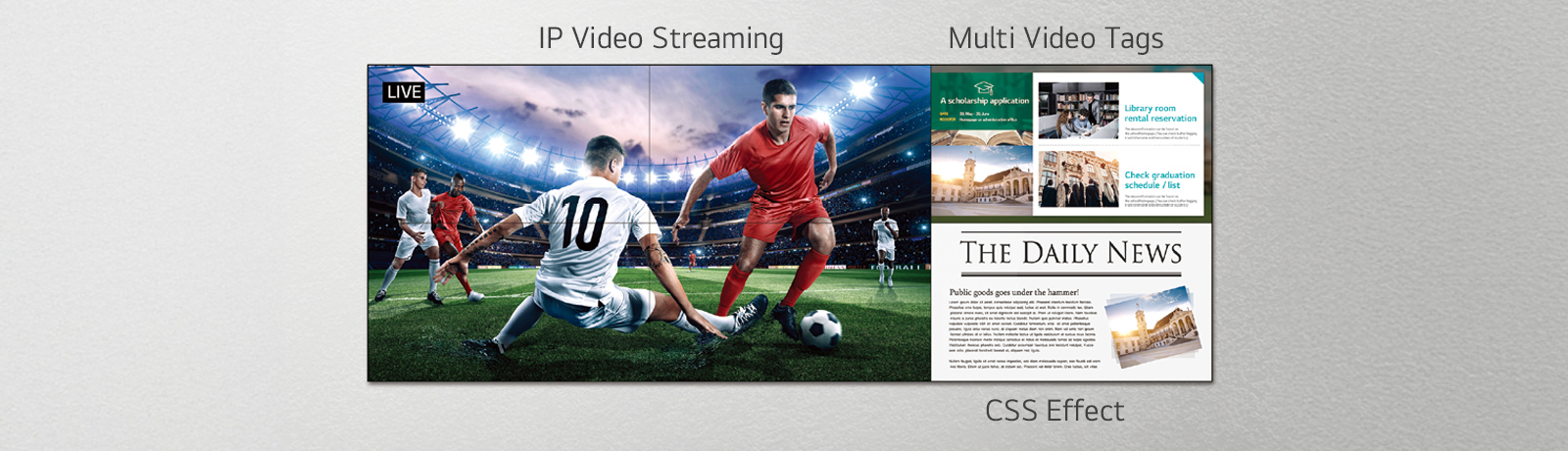

Web applications can play four videos simultaneously and use CSS transitions. Supported live-stream protocols include RTSP, RTP, HLS and UDP Multicast.
Partial conformal coating on the power board helps protect against salt, dust, iron powder and humidity. Shock Monitoring can notify an administrator through the media controller after physical impact.

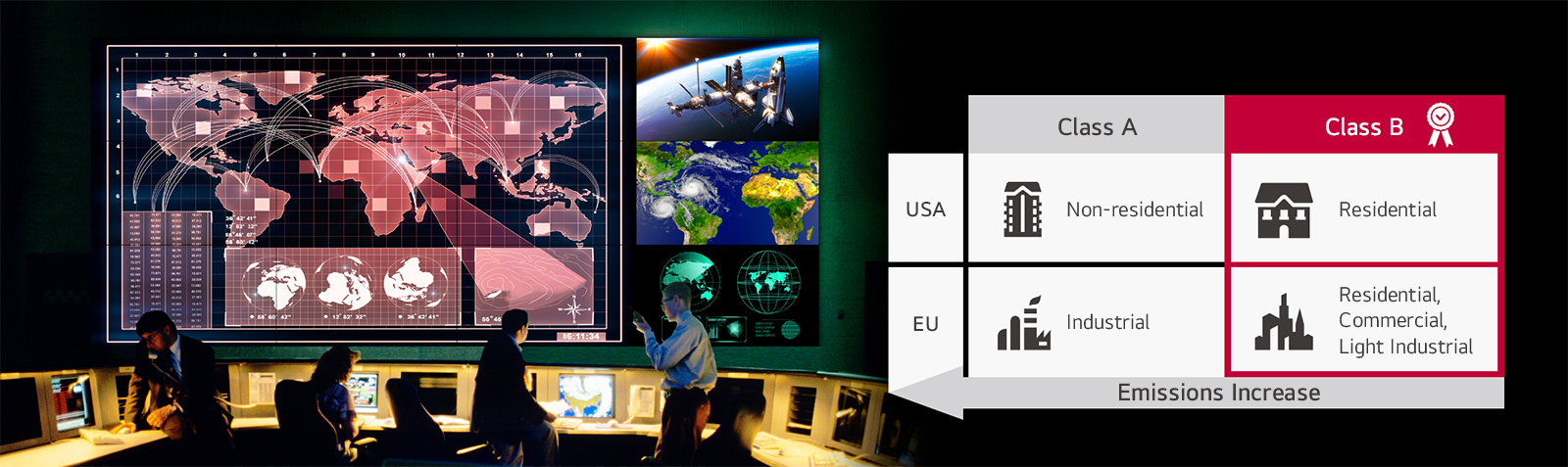

EMC Class B certification supports use in residential and business environments, including meeting rooms and boardrooms.
The optional LG ConnectedCare service provides remote fault diagnosis and control. It is purchased separately and regional availability must be confirmed.

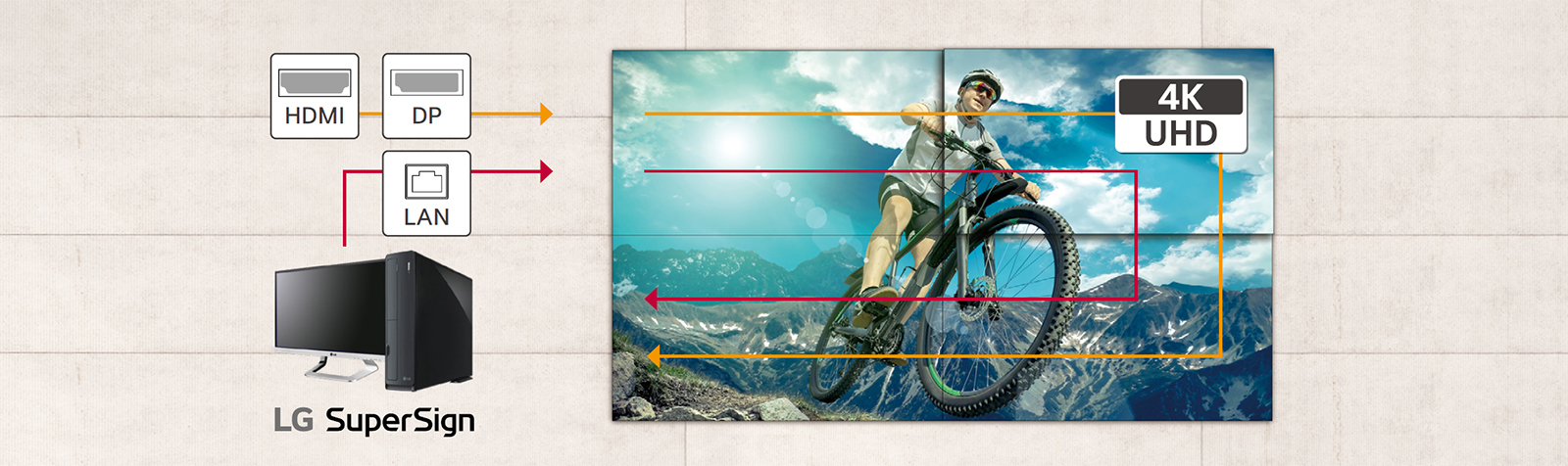

LAN daisy chains support monitoring, control and firmware updates. HDMI and DisplayPort daisy chains support UHD video-wall arrangements without DisplayPort MST; each panel retains its native Full HD resolution.
IP5x certification provides protection against dust that could affect display performance.
| Screen Size | 55" |
|---|---|
| Panel Technology | ADS |
| Native Resolution | 1,920 x 1,080 (FHD) |
| Brightness | 500 nits (Typ.) |
| Contrast Ratio | 1,200 : 1 |
| Dynamic CR | 500,000 : 1 |
| Color gamut | NTSC 72% |
| Viewing Angle (H x V) | 178 x 178 |
| Color Depth | Real 8 bit, 16.7M |
| Response Time | 8 ms (G to G) |
| Surface Treatment (Haze) | 25% |
| Lifetime | 60,000 Hrs (Typ.) / 50,000 Hrs (Min.) |
| Operation Hours (Hours / Days) | 24/7 |
| Portrait / Landscape | Yes / Yes |
| Bezel Color | Black |
|---|---|
| Bezel Width | B2B : 1.7 mm (Panel Bezel to Panel Bezel), 1.2 mm (T/L), 0.5 mm (B/R), A2A : 3.1 mm (Active Area to Active Area), 1.9 mm (T/L), 1.2 mm (B/R) |
| Weight (Head) | 20.1 kg |
| Packed Weight | 28.3 kg |
| Monitor Dimensions (W × H × D) | 1,212.7 × 683.5 × 90.1 mm |
| Carton Dimensions (W × H × D) | 1,393 × 955 × 303 mm |
| VESA™ Standard Mount Interface | 600 × 400 |
| Key Feature | Internal Memory (eMMC) 8 GB, Temperature Sensor, Acceleration (Gyro) Sensor, Local Key Operation, webOS 6.1, Local Contents Scheduling, Group Manager, USB Plug & Play, Fail Over, Booting Logo Image, No Signal Image, RS-232C Sync, Local Network Sync, Video Tag (4, Max One HDMI Input), Play via URL, Screen Rotation, External Input Rotation, Gapless Playback, Tile Mode Setting (Max. 15 × 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, Crestron Connected®, Smart Energy Saving, PM Mode, Wake on LAN, Network Ready, HDMI-CEC, SI Server Setting, webRTC, Pro:Idiom, W/B Setting by Grey Scale, Scan Inversion |
|---|---|
| Special Features | IP Rating (IP5X Tested), Conformal Coating (Power Board) |
| Operation Temperature | 0 °C to 40 °C |
|---|---|
| Operation Humidity | 10 % to 80 % |
| Power Supply | AC 100-240V~, 50/60Hz |
|---|---|
| Power Type | Built-In Power |
| Typ. | 170 W |
|---|---|
| Max. | 200 W |
| Smart Energy Saving | 100 W |
| DPM | 0.5 W |
| Power off | 0.5 W |
| BTU (British Thermal Unit) | 580 BTU/Hr (Typ.), 682 BTU/Hr (Max.) |
| Safety | CB / NRTL |
|---|---|
| EMC | FCC Class “B” / CE / KC |
| ErP | New ErP / Energy Star 8.0 |
| SuperSign CMS | Yes |
|---|---|
| SuperSign Control+ | Yes |
| SuperSign WB | Yes |
| SuperSign Cloud | Yes |
| LG ConnectedCare | Yes |
| Mobile CMS | Yes |
| Input | HDMI (2, 3,840 × 2,160 @ 60 Hz, HDCP 2.2/1.4), DP (3,840 × 2,160 @ 60 Hz, HDCP 2.2/1.3), RS-232C, RJ45 (LAN), USB 2.0 Type A |
|---|---|
| Output | DP (3,840 × 2,160 @ 60 Hz, Input : HDMI ½, DP), Audio, RS-232C, RJ45 (LAN), Daisy Chain (Input : HDMI½, DP / Output : DP) |
| OSD | English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portugues (Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues (Europe), Dutch, Czech, Greek, Türkçe, Arabic, Hungarian |
|---|
| Basic | Remote Controller, Power Cord, RS-232C Cable, LAN Cable, DP Cable, IR Receiver, Manual |
|---|
Specifications from the supplied official LG product page and datasheet. Specifications and service availability may vary by region.
