Logitech Rally Bar Huddle

Suitable for: 2-7 Seater
Request for Quotation

Logitech Rally Bar Huddle combines camera, microphones and speaker in a compact conference bar for huddle spaces and small meeting rooms. CollabOS supports room deployment and remote management, while compatible controllers and scheduling panels can be added to suit the meeting setup.

You may also like…

Logitech

Logitech Rally Bar Huddle

Rally Bar Huddle

Request for Quotation

Logitech Rally Bar Huddle combines camera, microphones and speaker in a compact conference bar for huddle spaces and small meeting rooms. CollabOS supports room deployment and remote management, while compatible controllers and scheduling panels can be added to suit the meeting setup.

Key product features

  • All-in-one conferencing for huddle spaces and small rooms
  • 4K camera with 120° diagonal field of view
  • Six-microphone array with pickup up to 7 m
  • Appliance, USB room-PC and laptop deployment options
  • Included Multi Mount for wall, table or above-display installation

Overview

Compact room deployment

Bring the camera, microphones and speaker together in one enclosure for a small collaboration space. The included Multi Mount supports wall, table and above-display installation, while the chosen conferencing platform determines the available meeting functions.

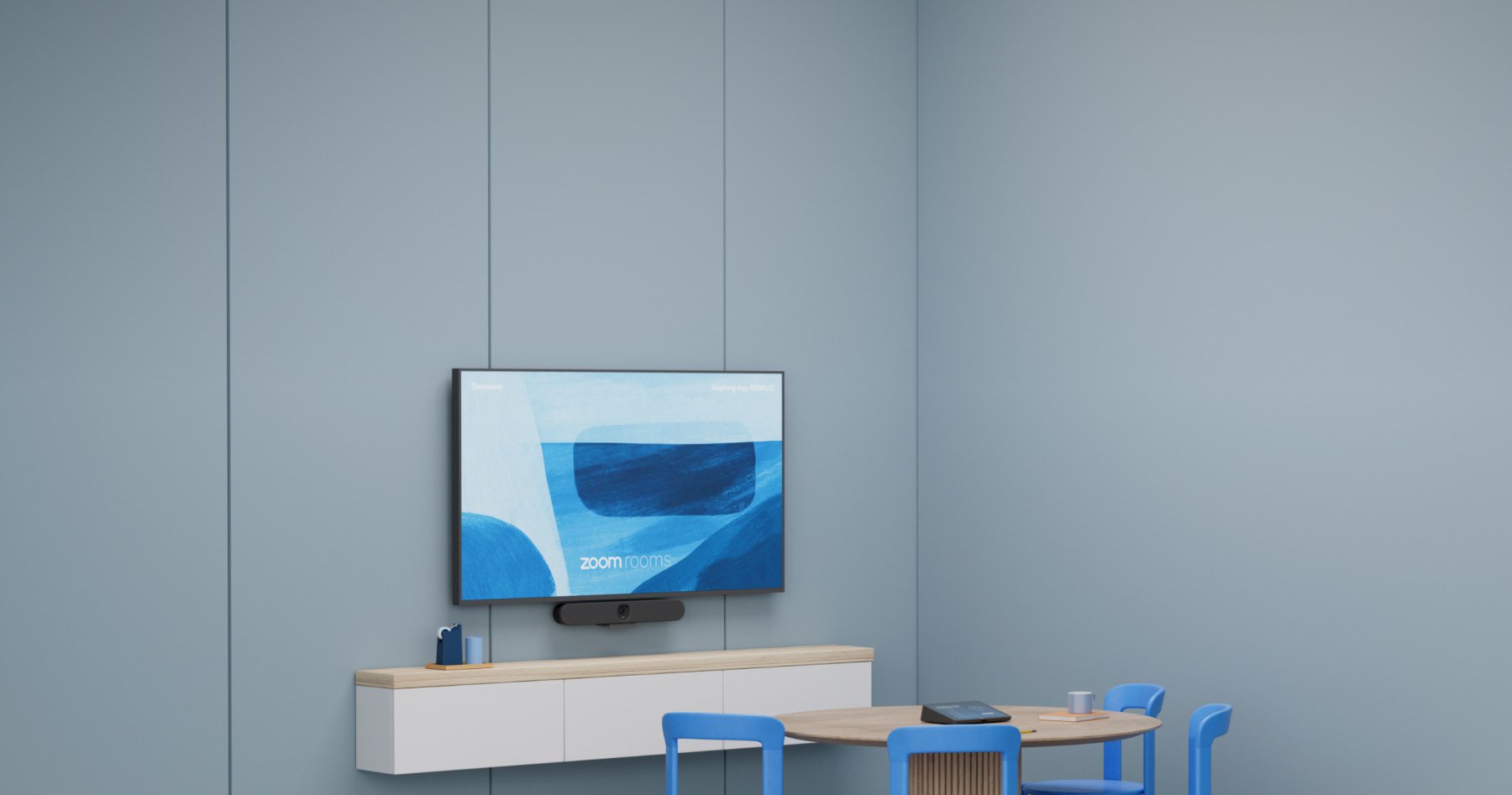

Logitech Rally Bar Huddle meeting-room installation example

Remote administration

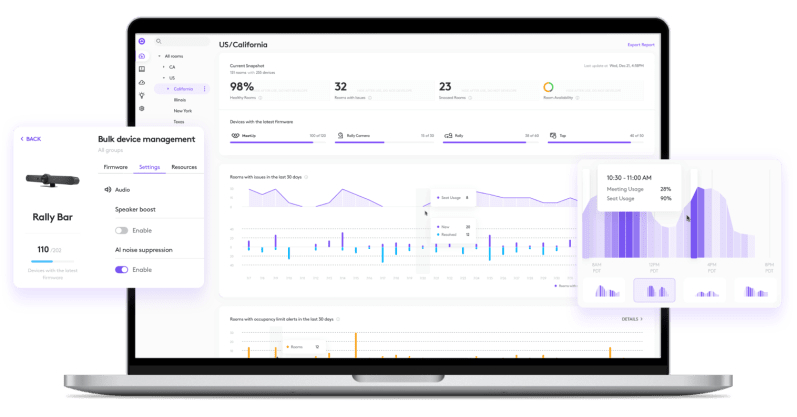

Use Logitech Sync to monitor device health, apply updates and adjust settings. Premium management features require the applicable service licence; optional controllers and scheduling panels are separate products.

Audio coverage

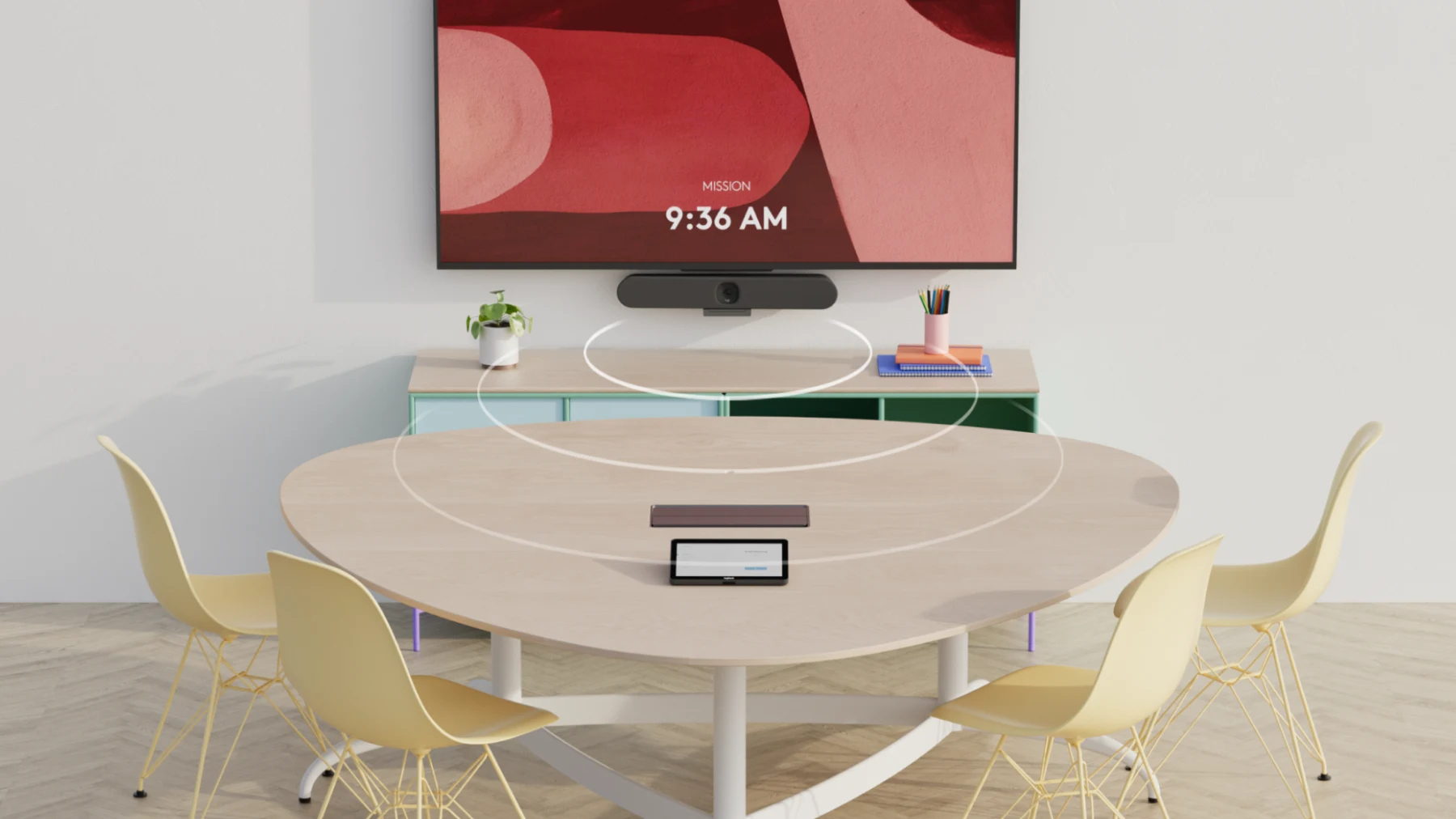

Meeting-room illustration showing Logitech Rally Bar Huddle audio coverage

Deployment options

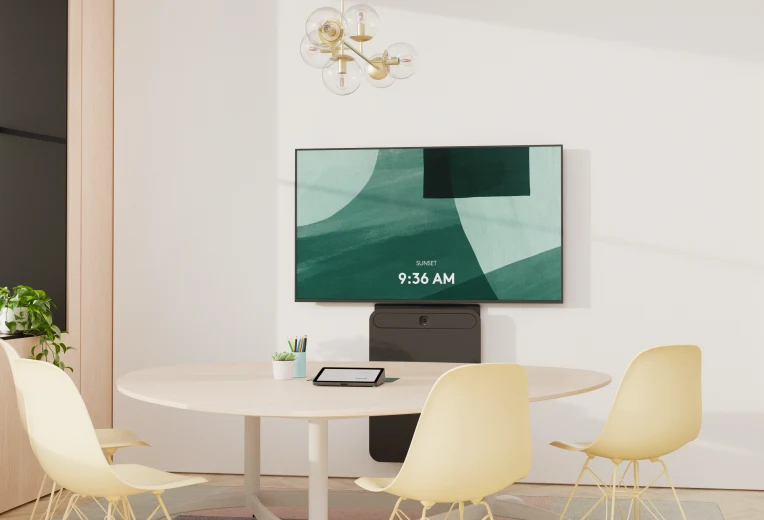

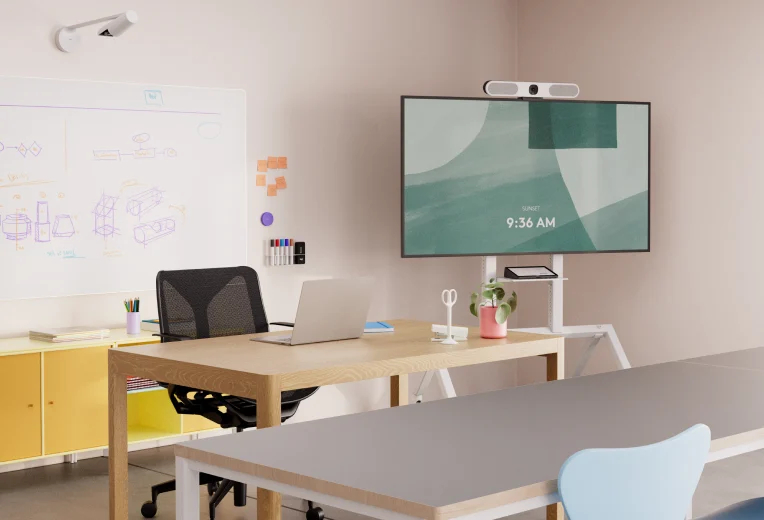

Illustration of three Logitech Rally Bar Huddle deployment configurations

Small meeting spaces

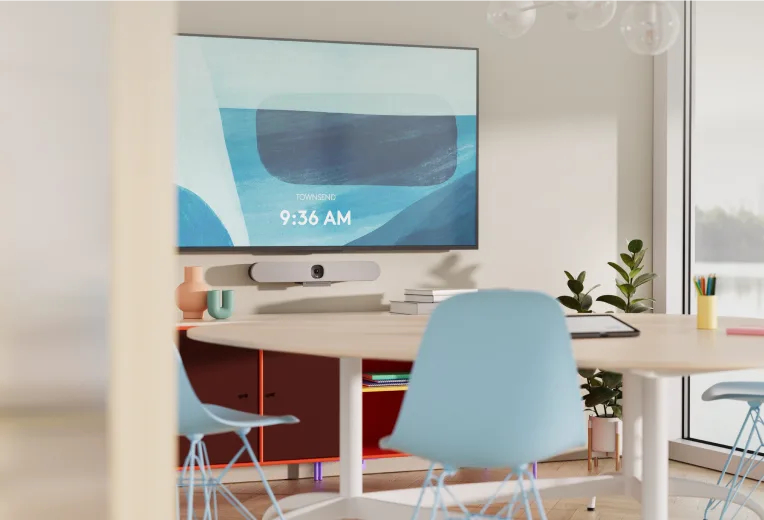

Logitech Rally Bar Huddle below a display in a compact meeting space

Optional easy-clean cover

Logitech Rally Bar Huddle with an easy-clean cover in a meeting room

Specifications

Part Number
Manufacturer part number960-001577
Dimensions
Height78.9 mm
Width549.6 mm
Depth76 mm
Weight1.8 kg
Certifications and Compatibility
DetailsFor the latest information on certification and compatibility, see www.logitech.com/support/vc-certifications.
General Specifications
Built-in Components6 DMIC microphone array, digital PTZ camera, 1 full range ported speaker, cable management & retention system, Multi Mount, integrated motorized privacy shutter, Logitech Collab OS platform
EnclosureAll-in-one enclosure with field replaceable front cover
Device ManagementLogitech Sync
Displays Supported1 (2nd display support is coming soon)
Display Resolution1080p
Network Protocol SupportIPv4, IPv6
Proxy SupportIP based Proxy, FQDN based Proxy, Proxy using PAC file
Camera
Digital Pan±48° at 4x zoom
Digital Tilt±32° at 4x zoom
Zoom4X HD digital zoom
Diagonal Field of View120°
Horizontal Field of View113°
Vertical Field of View80°
Resolution4K
Speakers
Driver55 mm with bass reflex enclosure and patented suspension design
Sensitivity83 dB SPL @1W +/-2dB @ 1 meter
Rated Power8W
THD at 1W, 1kHz<2%
Speaker Sampling Rate48KHz
Impedance4 Ohms
Microphones
Frequency Response90Hz – 16kHz
Sensitivity-36dBFS +/-1 dB @ 1Pa
Microphone data rate output48 kHz
Pickup RangeUp to 7m
Beamforming ElementsSix omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams
Audio processingAEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
Noise suppressionAI based de-noising algorithm
Interfaces
HDMI Out1
HDMI In1
USB1x Type A USB 3.1, 1x Type C USB 3.1
Network10/100/1G Ethernet
WiFi802.11a/b/g/n/ac
BluetoothBluetooth® Low Energy
Power and Cables
Power supplyAuto-sensing
Operating Voltage/Power100-240V, 19V, 2.1A
Power Supply Dimensions114 mm x 47 mm x 32.3 mm
DC Cable1.5 m
AC Cable1 m
HDMI 1.4 Cable2 m
USB A to USB C 3.0 Cable2.2 m
Environmental
Operating Temperature0 to 40°C
Storage Temperature-25 to 70°C
Humidity10 to 90%
Security
File Based EncryptionAES-128
Data EncryptionSymmetric Keys, PKI
Device IdentityProtected by device attestation
Device AccessAuthenticated using API
Key ProtectionArm TrustZone, RPMP
Accessories
CoversRally Bar Huddle Front Cover-Cleanable, Off-White Fabric
MountsWall Mount for Video Bars, TV Mount for Video Bars
Touch ControllerLogitech Tap and Tap IP
Warranty Information
WarrantyStandard: 2-year limited hardware warranty included.
WarrantyExtended: Additional one-year and three-year extended warranties available at the time of hardware purchase.
WarrantyContact your reseller for availability.
