Logitech Tap Scheduler is a dedicated room-booking panel for compatible scheduling platforms. Installed outside a meeting room, it shows availability and meeting details and supports room reservations. Included mounting options and cable management help create a tidy workplace installation.

Logitech

Logitech Tap Scheduler

Tap Scheduler

Request for Quotation

Logitech Tap Scheduler is a dedicated room-booking panel for compatible scheduling platforms. Installed outside a meeting room, it shows availability and meeting details and supports room reservations. Included mounting options and cable management help create a tidy workplace installation.

Key product features

  • Dedicated room-scheduling panel
  • Shows meeting details and room availability
  • Supports compatible room-booking platforms
  • Includes glass, mullion and wall mounting options
  • Integrated cable management

Overview

Room booking at the doorway

Install the panel outside a room so staff can check its status and access booking functions offered by the selected scheduling platform. The panel is a scheduling device, not an in-room meeting controller.

Tidy installation

Use the included mounting options for the room entrance and route cables through the built-in management features. Confirm platform support and the required network connection before installation.

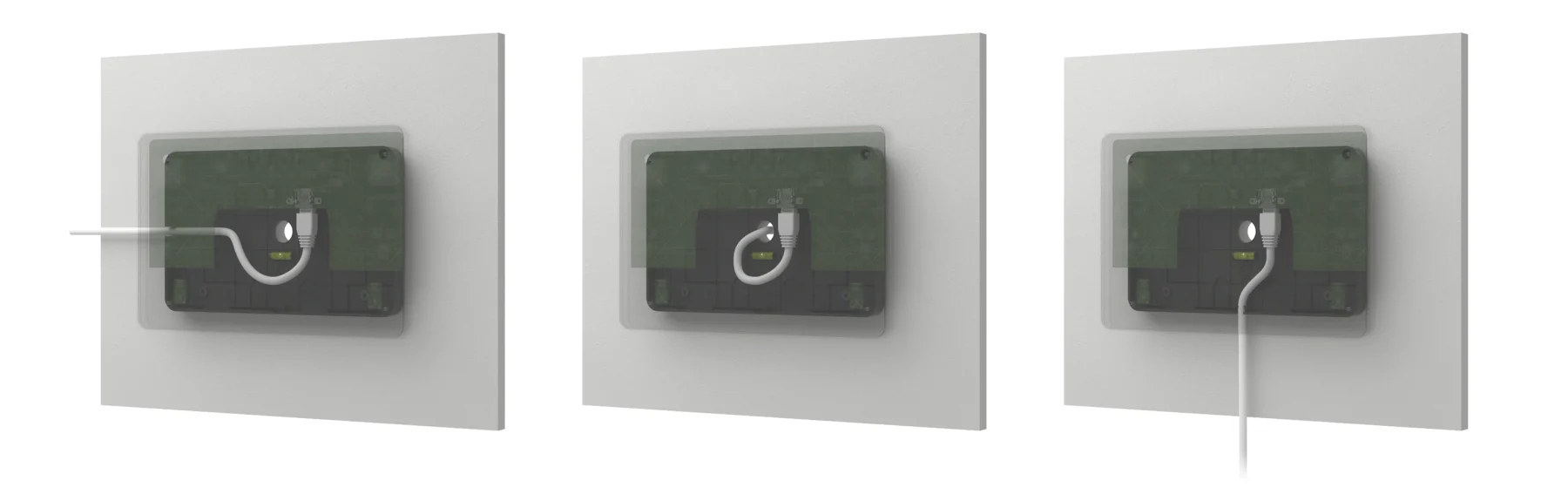

Cable Management

Three rear cable-routing options for Logitech Tap Scheduler

Glass Mounting

Front and side views of Logitech Tap Scheduler with room-status lights

Specifications

Part Number
Graphite952-000091
White952-000094
Device-only
Height165 mm
Width246.2 mm
Depth28.5 mm
Weight700 g
Surface-mounted
Height165 mm
Width246.2 mm
Depth31.4 mm
Mullion-mounted
Height165 mm
Width292.6 mm
Depth44.5 mm
Screen
Size10.1” diagonal
PanelIPS LCD with LED backlighting
Resolution1280 x 800 resolution
TouchCapacitive, 10 points multi-touch
Brightness400 nits
Contrast1000:1
Anti FingerprintOleophobic coating
Viewing angle85 degrees (U/D/L/R)
Position angle0 degrees (flat on mounting surface)
General Specifications
DetailsIntegrated accelerometer
DetailsIntegrated ambient light sensor
Details100 mm x 100 mm VESA FDMI
Cable exitshorizontal / vertical / center
COMPATIBILITY AND CERTIFICATIONS
DetailsLogitech Tap Scheduler integrates with leading room scheduling solutions as a
DetailsLogitech Room Booking
DetailsMicrosoft Teams Panel
DetailsZoom Rooms Scheduling Display
DetailsRobin-Powered scheduling panel
DetailsAppspace
DetailsRICOH Spaces
DetailsEnvoy Rooms
DetailsKorbyt Booking
DetailsComeen
DetailsEptura
DetailsSee www.logitech.com/support/tapscheduler-compatibility for the latest certification and compatibility information.
DetailsLogitech CollabOS platform
DetailsLogitech Sync Remote Management
Power and Cables
DetailsPower over Ethernet (PoE), IEEE 802.3af Type 1, Class 3 device.
Details*Requires PoE enabled network or PoE Injector and ethernet cable (Not included)
PORTS AND INTERFACES
Ethernet10/100 Mbps
WiFi802.11a/b/g/n/ac/ax
DetailsBluetooth 5.0 (inactive, reserved for future use)
Environmental
Operating temperature0 to 40°C
Storage temperature-40 to 70°C
Humidity10-95%
Security
Full Disk EncryptionAES-128
Data EncryptionSymmetric Keys, PKI
Device IdentityProtected by device attestation
Key ProtectionArm TrustZone
Sustainability
Graphite plastics54% post-consumer recycled material
Warranty Information
WarrantyEnsure peace of mind with an extended warranty for Tap Scheduler, adding one additional year to the standard two-year limited hardware warranty.
WarrantyContact your reseller for availability.
