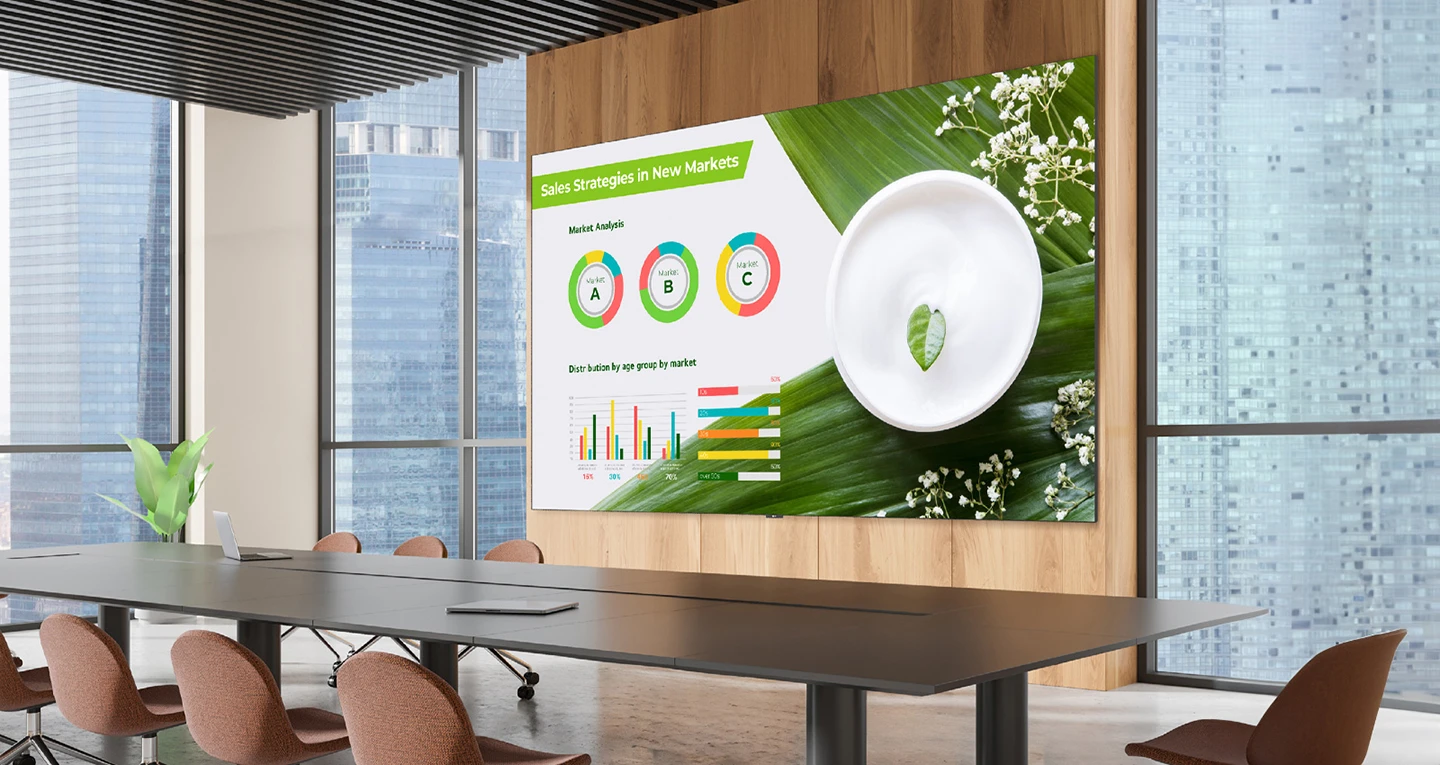

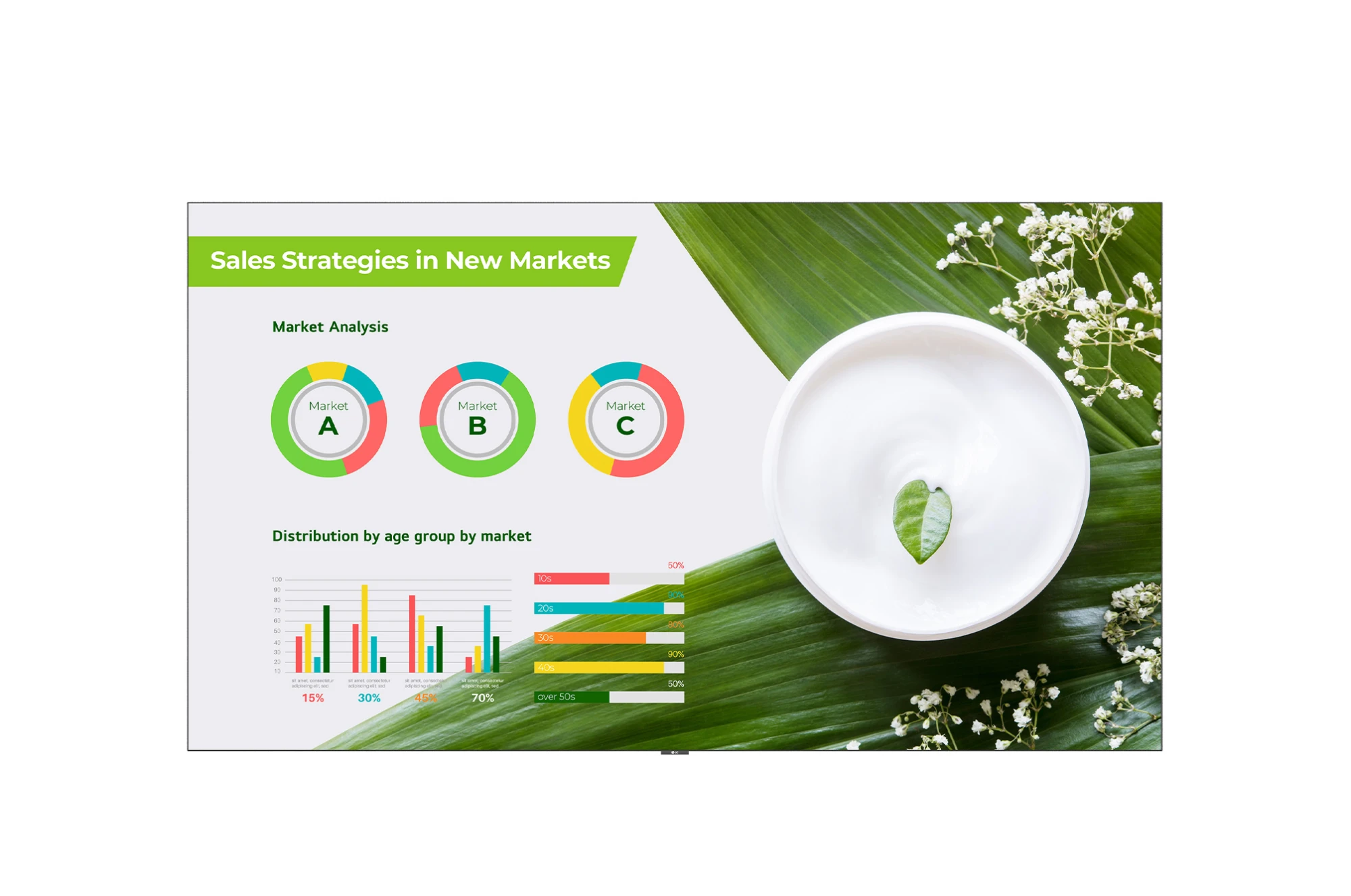

The LG LAPA163-GF is a 163-inch Full HD all-in-one LED display with 1.88 mm pixel pitch, 500-nit brightness, an embedded webOS controller and built-in speakers. Its large screen suits conference rooms, presentations and commercial information displays.
Official LG product views. Screen content is illustrative. Select a thumbnail or swipe. Select the main image to view full size.
LG
LAPA163-GF
S$47,066.20
163-inch LG 16:9 AIO LED.
The LG LAPA163-GF is a 163-inch Full HD all-in-one LED display with 1.88 mm pixel pitch, 500-nit brightness, an embedded webOS controller and built-in speakers. Its large screen suits conference rooms, presentations and commercial information displays.
The embedded webOS controller supports content playback and signage applications without a separate external media player for supported functions.

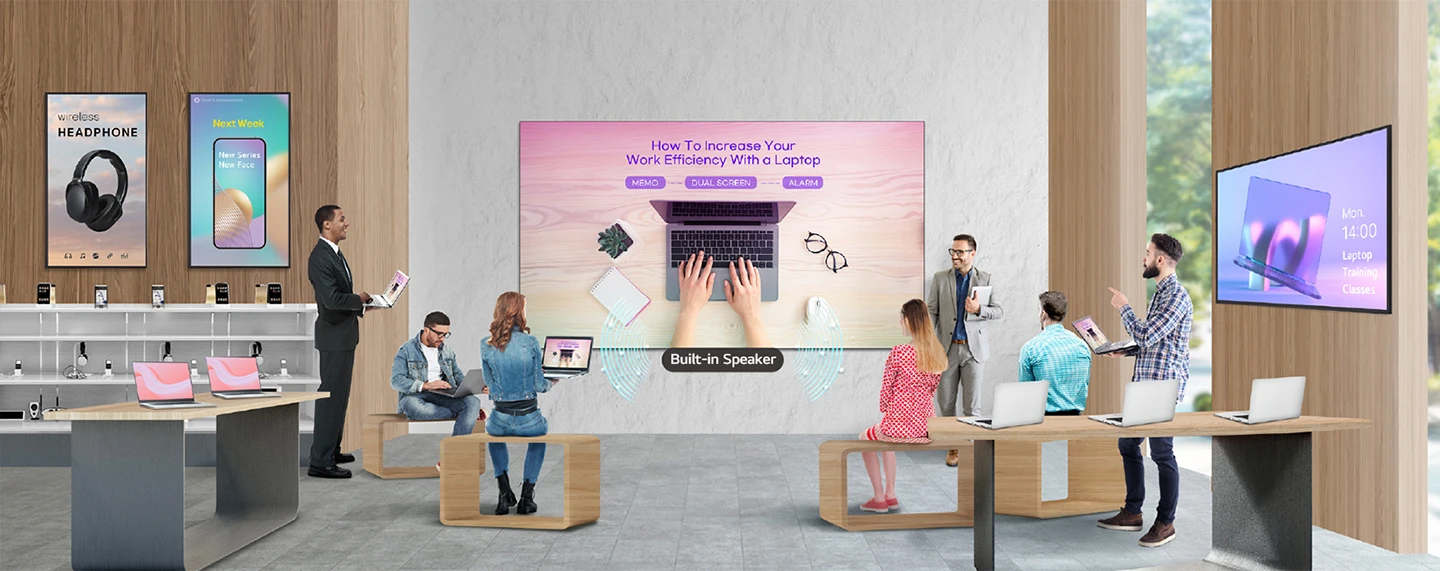

An integrated controller and built-in speakers reduce the number of separate components needed for an all-in-one installation.

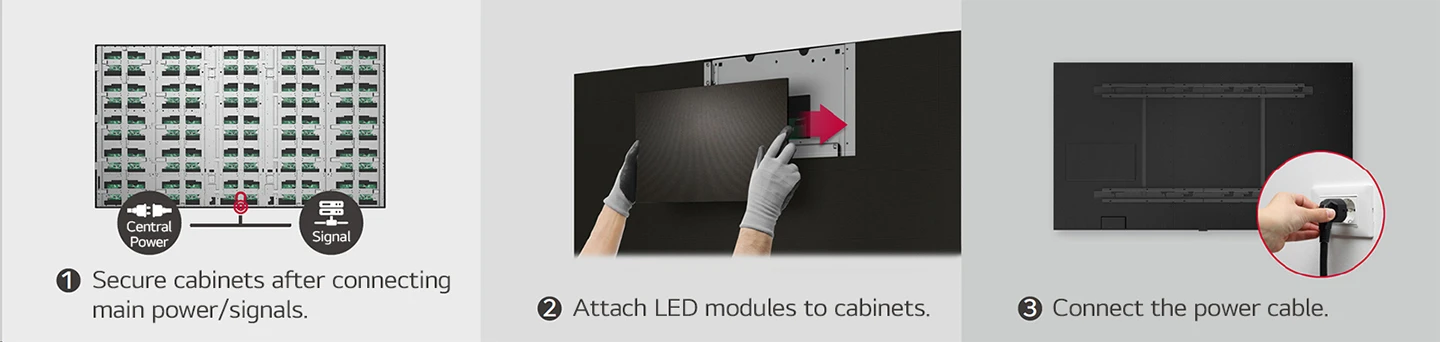

The modular installation sequence assembles the supplied display structure, LED modules and power connections. Follow the official installation instructions.

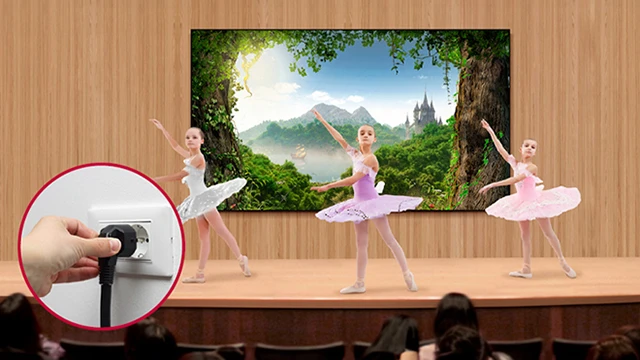

The display uses the power connections specified for this exact model. Follow the manufacturer installation instructions.

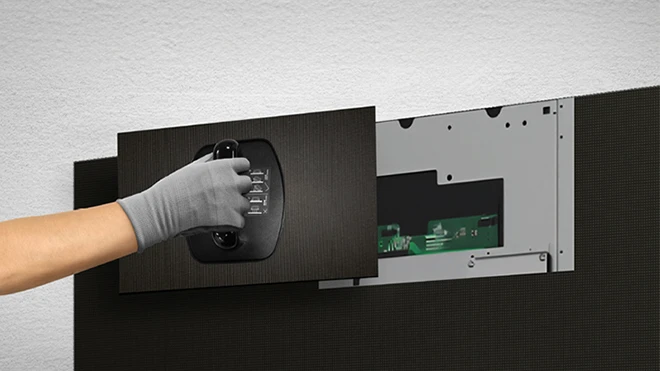

Front access allows LED modules and supported internal components to be serviced without rear access.

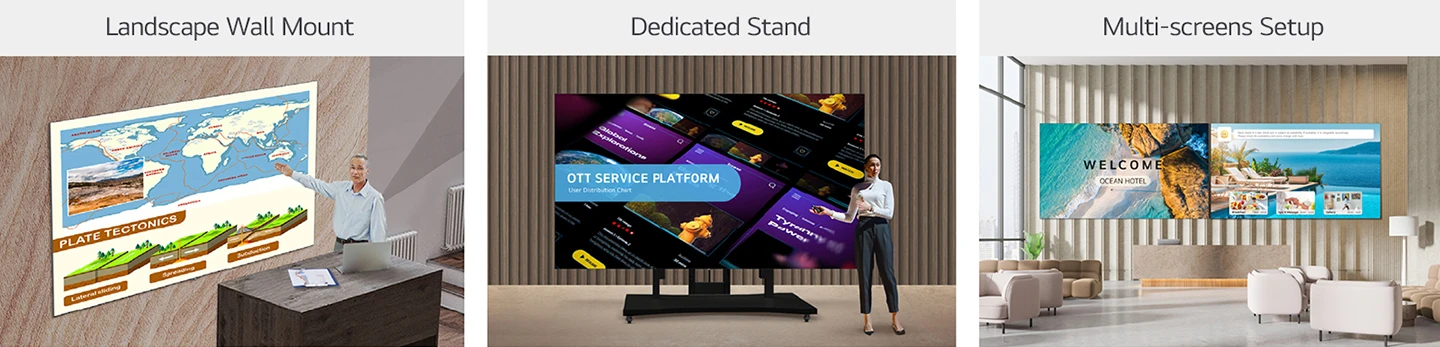

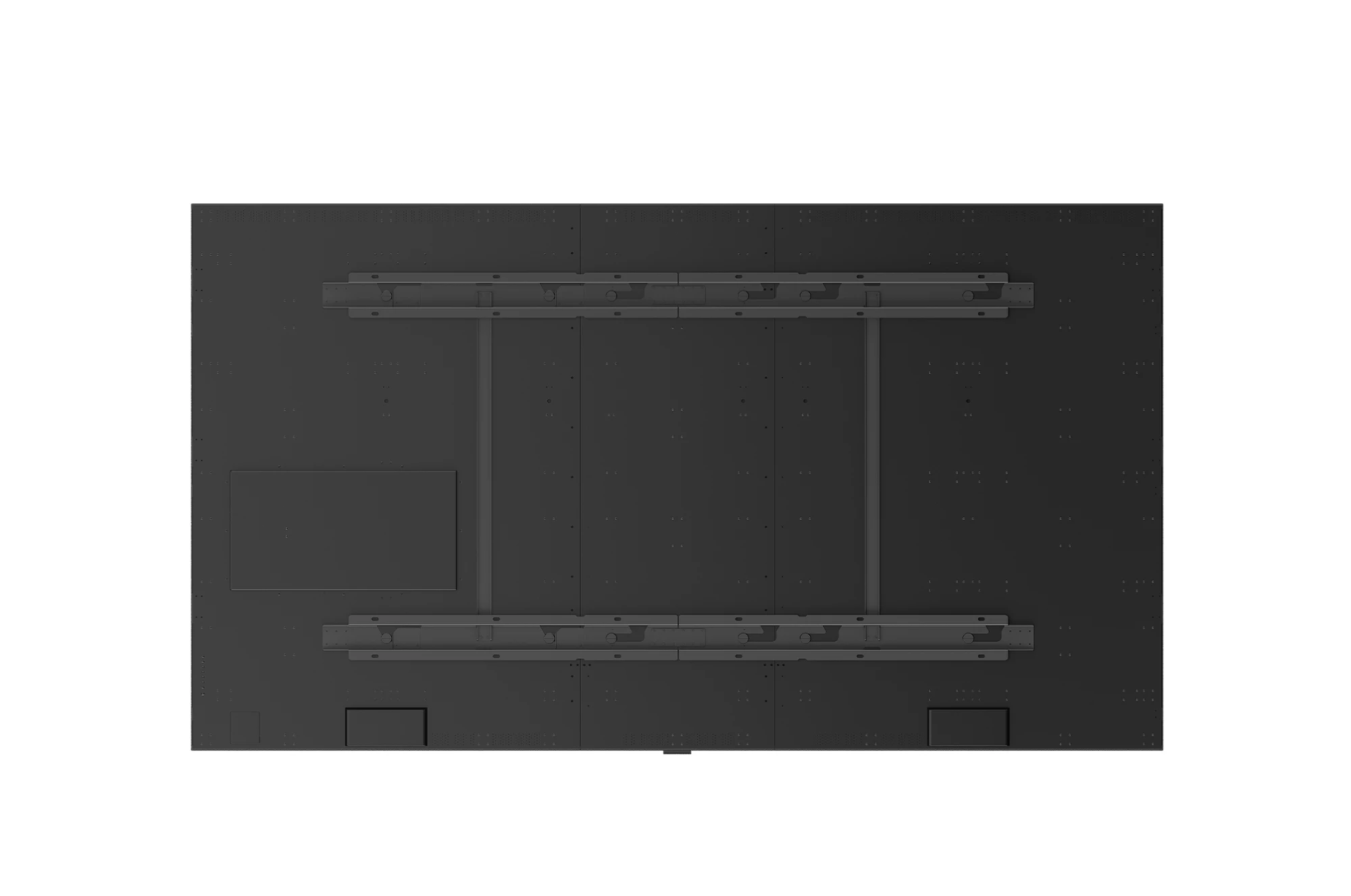

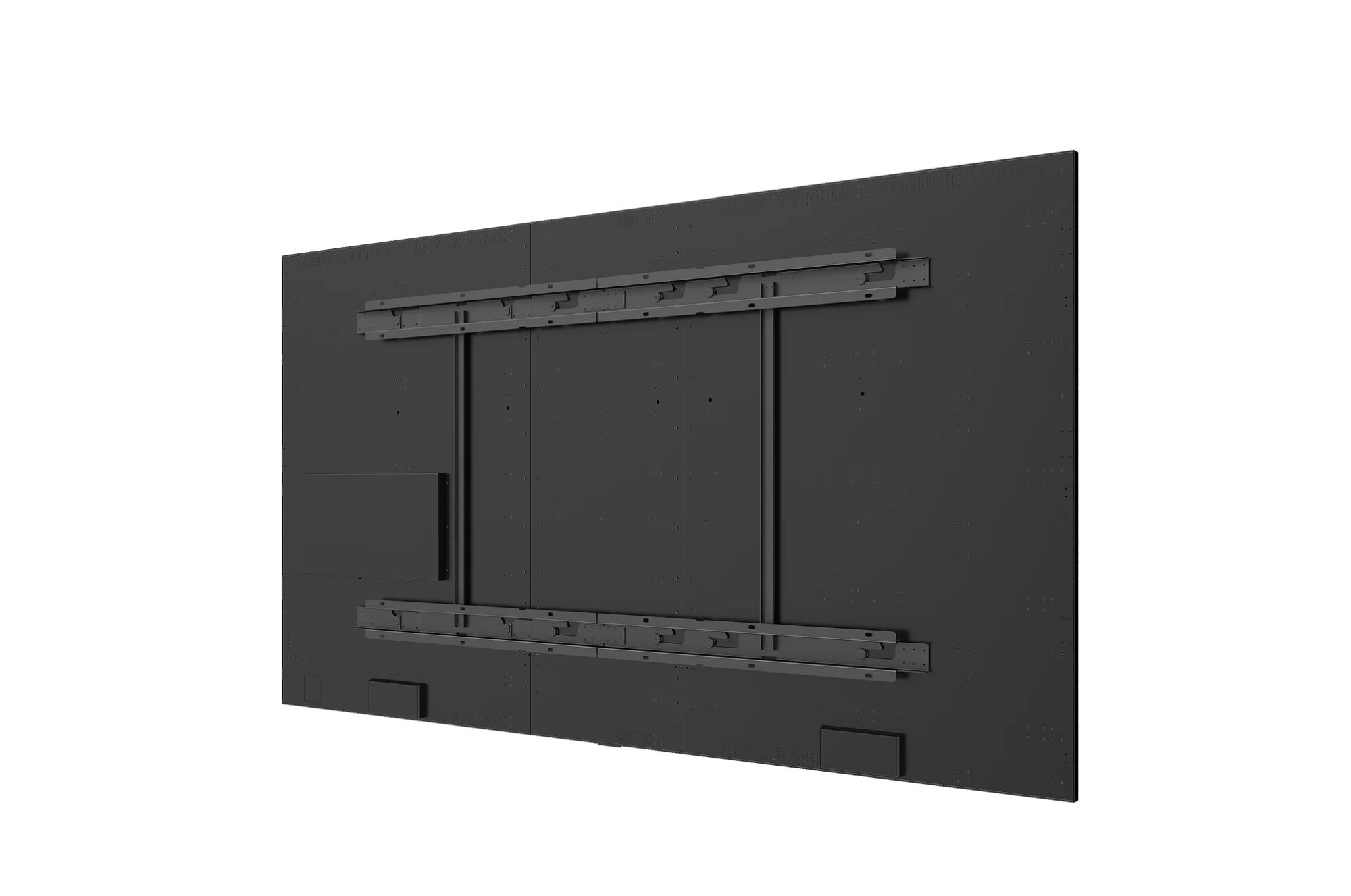

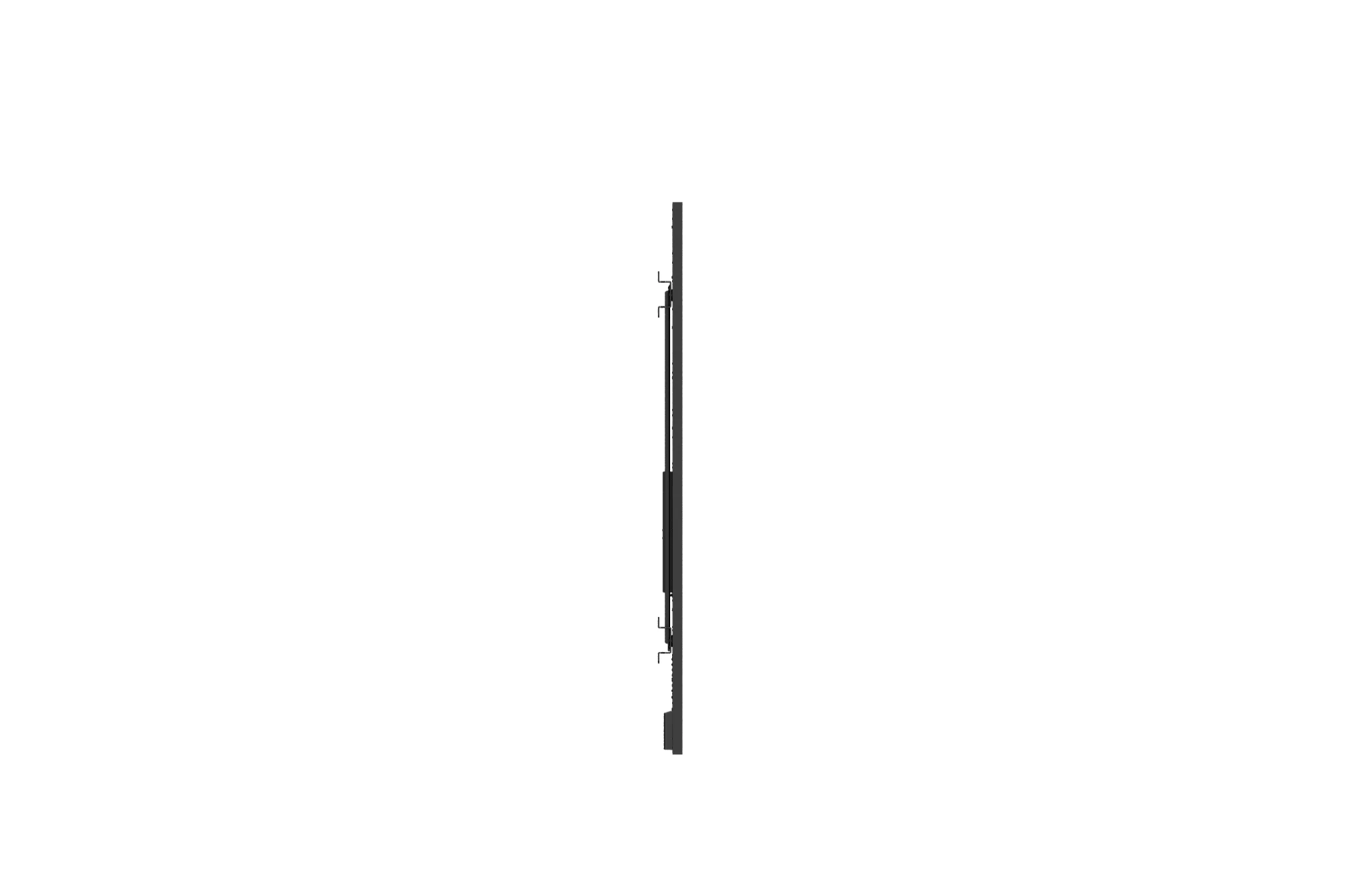

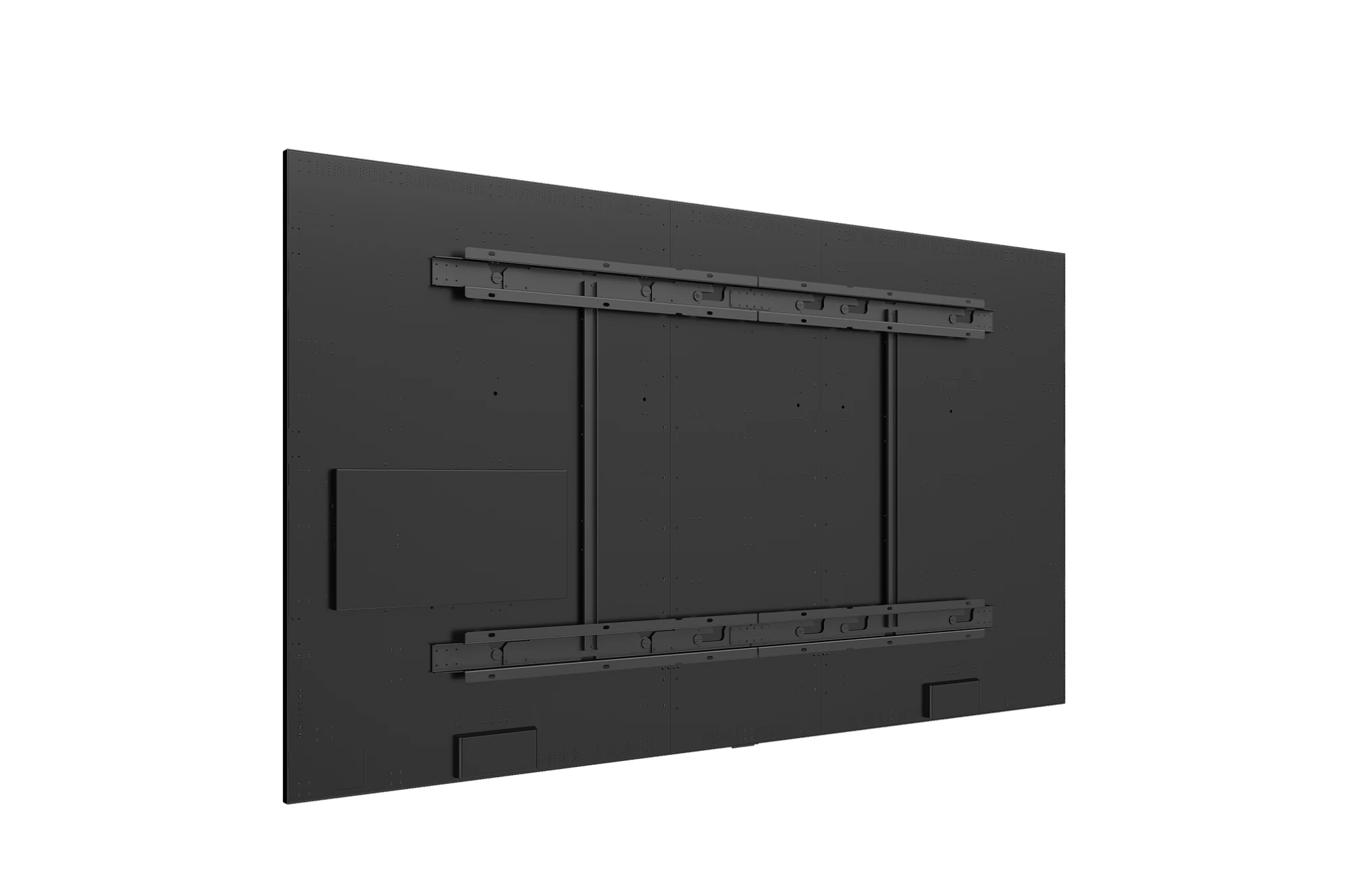

A landscape wall mount and installation tools are included as described by LG. Optional stands and expansion accessories are sold separately; compatibility varies by model.
Optional LG ConnectedCare provides remote monitoring and fault diagnosis. It is purchased separately, requires network access and varies by region.

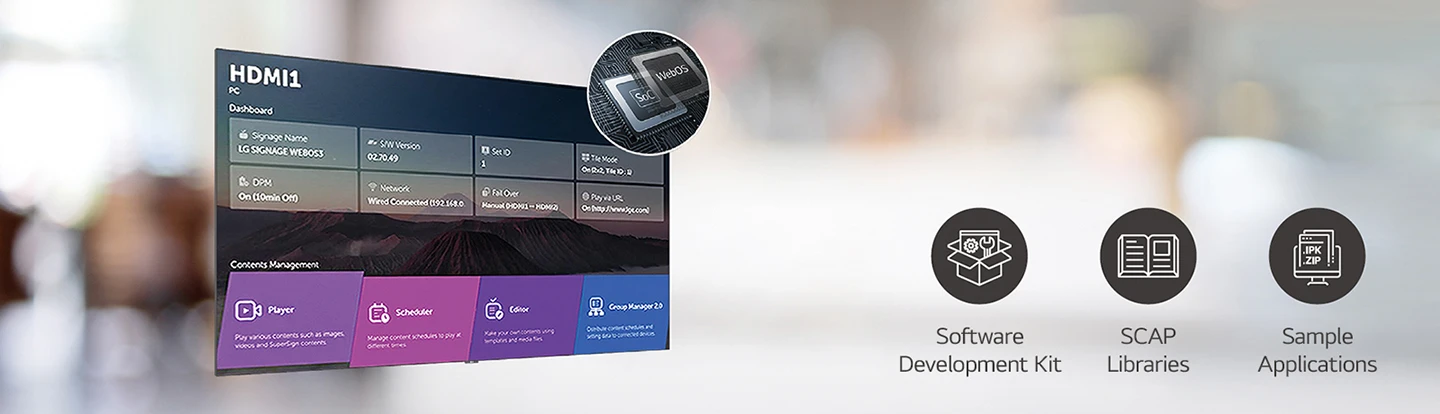

The embedded webOS controller supports content playback and signage applications without a separate external media player for supported functions.

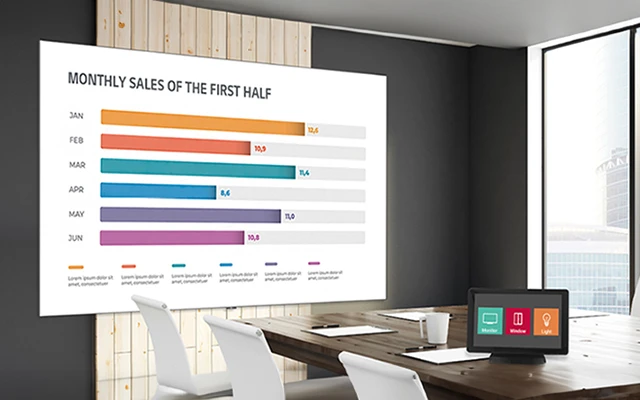

Crestron Connected integration supports compatible AV control systems. Initial setup and separately purchased services may be required.

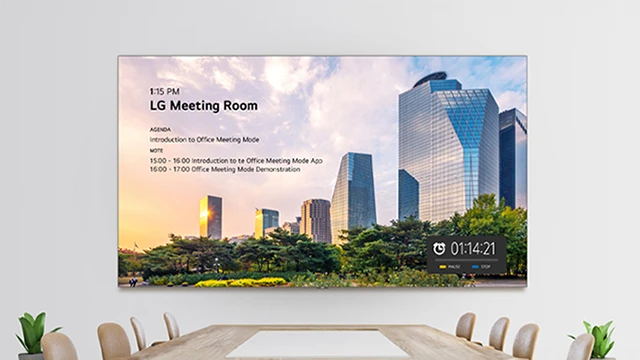

Office Meeting Mode provides supported meeting-room information and presentation controls through the signage settings.
Optional LG One:Quick Share supports wireless presentation sharing using its USB transmitter and application. It is purchased separately and device compatibility must be checked.
LG reports flame-spread testing for this series. Refer to the exact model certification specifications and manufacturer qualifications.

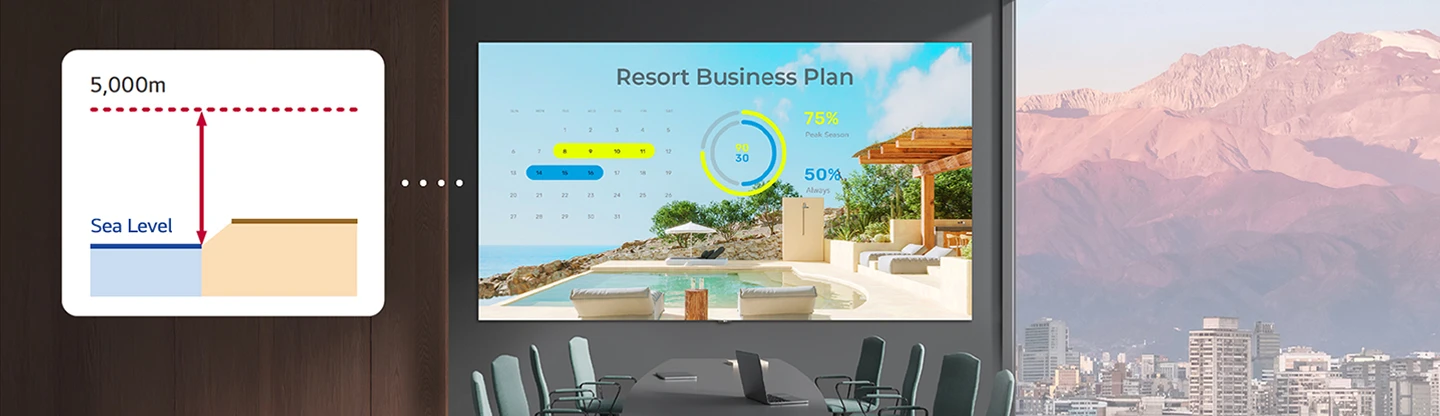

The manufacturer specifies operation at altitudes up to 5,000 metres, subject to the stated operating conditions.
| Brand | LG |
|---|---|
| Model | LAPA163-GF |
| Screen size | 163 inches |
| Product series | 16:9 AIO LED |
| Pixel Pitch (mm) | 1.88 |
|---|---|
| Module Resolution (W x H) | 160 × 90 |
| Module Dimensions (W x H, mm) | 300 × 168.75 |
| Screen Resolution (WxH) | 1,920 × 1,080 |
| Screen Dimension (W × H × D, mm) | 3,605 × 2,030 × 29.95 (Thickest 59.5) |
| Screen Weight (kg) | 155 |
| No. of Modules per Screen (W x H) | 12 × 12 (Total 144) |
| Screen Surface Area (㎡) | 7.29 |
| Physical Pixel Density (pixels/m²) | 284,444 |
| Flatness of Cabinet | ±0.15 (TBD) |
| Cabinet Material | Aluminum |
| Service Access | Front |
| Brightness (After Calibration, nit) | 500 (Typ.) |
|---|---|
| Visual Viewing Angle (Horizontal/Vertical) | 150 / 150 |
| Color Temperature (K) | 3,200-9,300 |
| Brightness Uniformity | 98% |
| Color Uniformity | ±0.015 Cx, Cy |
| Contrast Ratio | 3,000 : 1 |
| Processing Depth (bit) | 16 |
| Power Consumption (W/Screen, Max.) | 2,000 |
|---|---|
| Power Consumption (W/Screen, Avg.) | 750 |
| Power Consumption (W/m², Max.) | 275 |
| Heat Dissipation (BTU/h/Screen, Max.) | 6,825 |
| Heat Dissipation (BTU/h/Screen, Avg.) | 2,560 |
| Heat Dissipation (BTU/h/㎡, Max.) | 939 |
| Power Supply (V) | 100 to 240 |
| Frame Rate (Hz) | 50 / 60 |
| Refresh Rate (Hz) | 3,840 |
| Lifetime (Hours to Half Brightness) | 100,000 |
|---|---|
| Operating Temperature (°C) | 0 to +40 |
| Operating Humidity | 10-90% RH |
| IP rating Front / Rear | IP30 / IP30 |
| Speaker | Built-in (9 W + 9 W) |
|---|
| Certification | CE, FCC, ETL, CB, CE-RED EMC Class A |
|---|---|
| Fire Protection | BS476: Part7 Class 1 EN13501-1 (Class B-s1,d0) |
| Environment | RoHS, REACH |
|---|
| Controller | Embedded (webOS) |
|---|
| I/O port | HDMI(3), DP(1), USB, LAN, RS232C In/Out, IR, Digital Audio Out (1, SPDIF Optical) |
|---|
| Wi-Fi / BT | Yes / No |
|---|
| ETC | IR Remote(In-box), Magic Remote : Not Supported Side by Side : Yes (1xN) HDCP 2.2 Crestron Connected |
|---|
Manufacturer specifications may vary by region and revision. Optional services, stands and accessories are sold separately where stated. Refer to the official documents for installation and operating requirements.
