LG 65EP5Q OLED Pro

S$19,417.39

The LG 65EP5Q is a 65-inch UHD OLED Pro monitor for broadcast studios and colour-grading workflows. It combines 120 Hz operation, 99.5% DCI-P3 colour coverage, professional 3D LUT support and HDMI, SDI and SFP+ connectivity for demanding production environments.

LG 65EP5Q OLED Pro

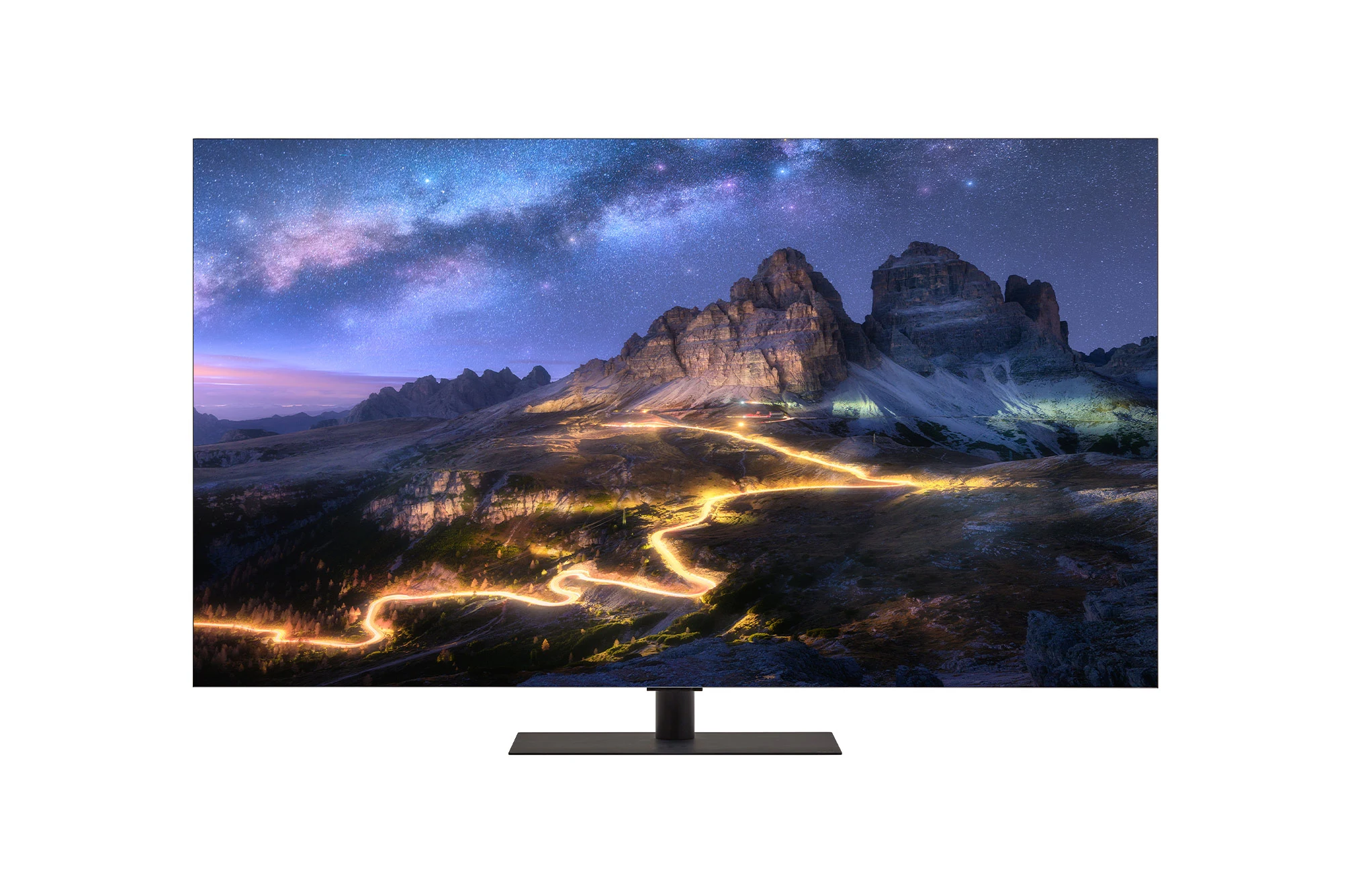

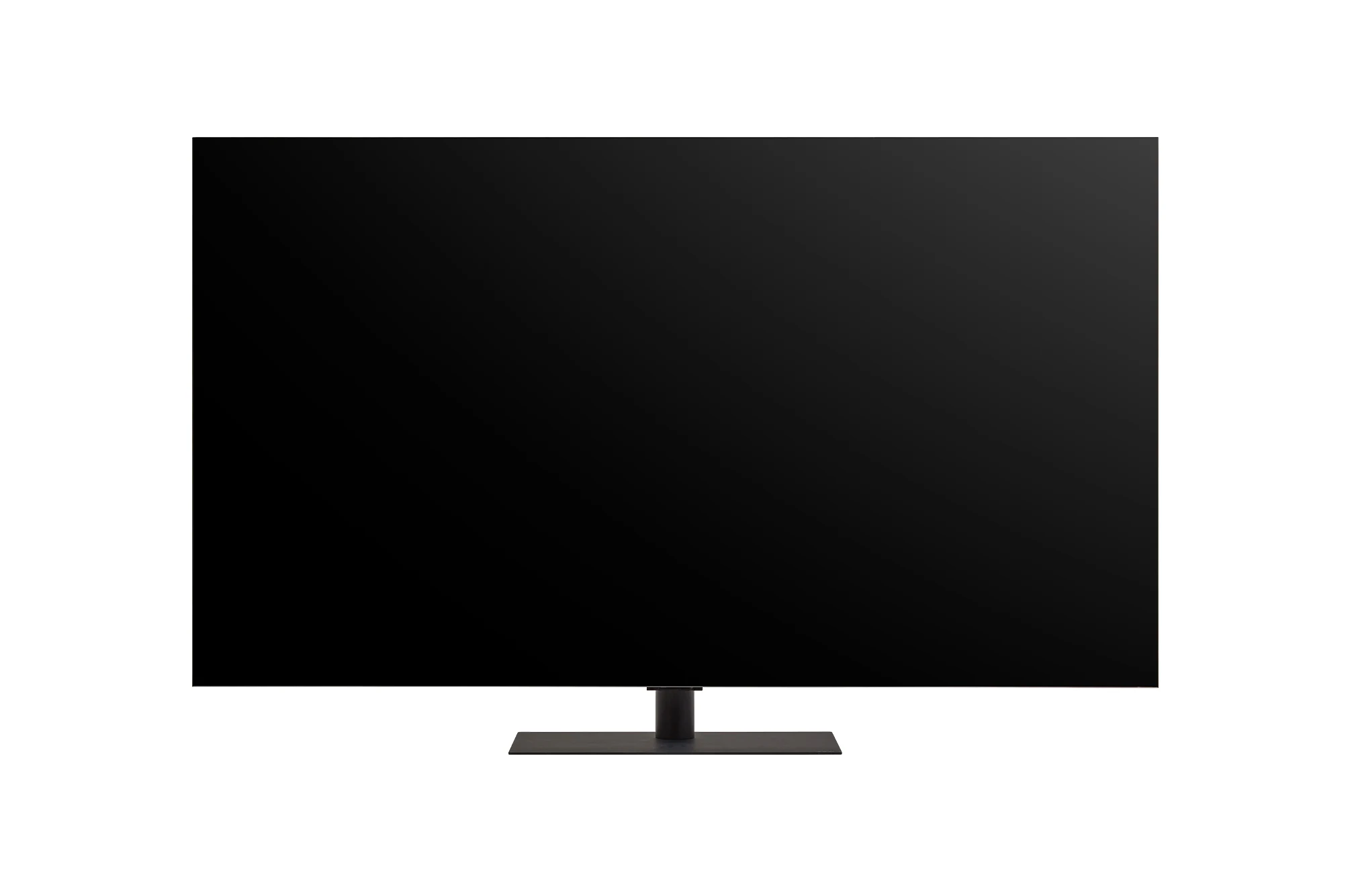

OLED Pro Monitor EP5Q, Front view with infill image

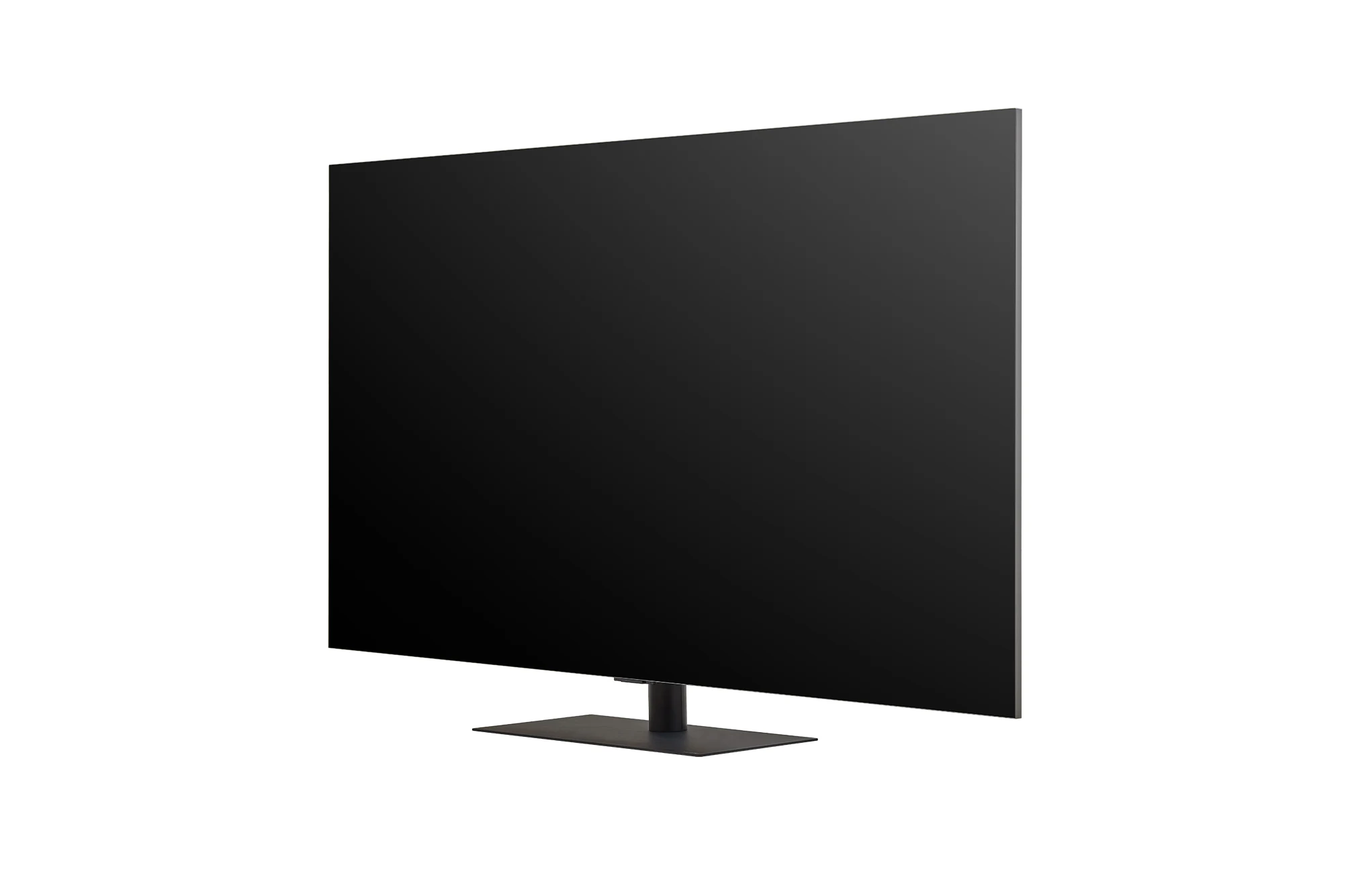

OLED Pro Monitor EP5Q, -45 degree side view

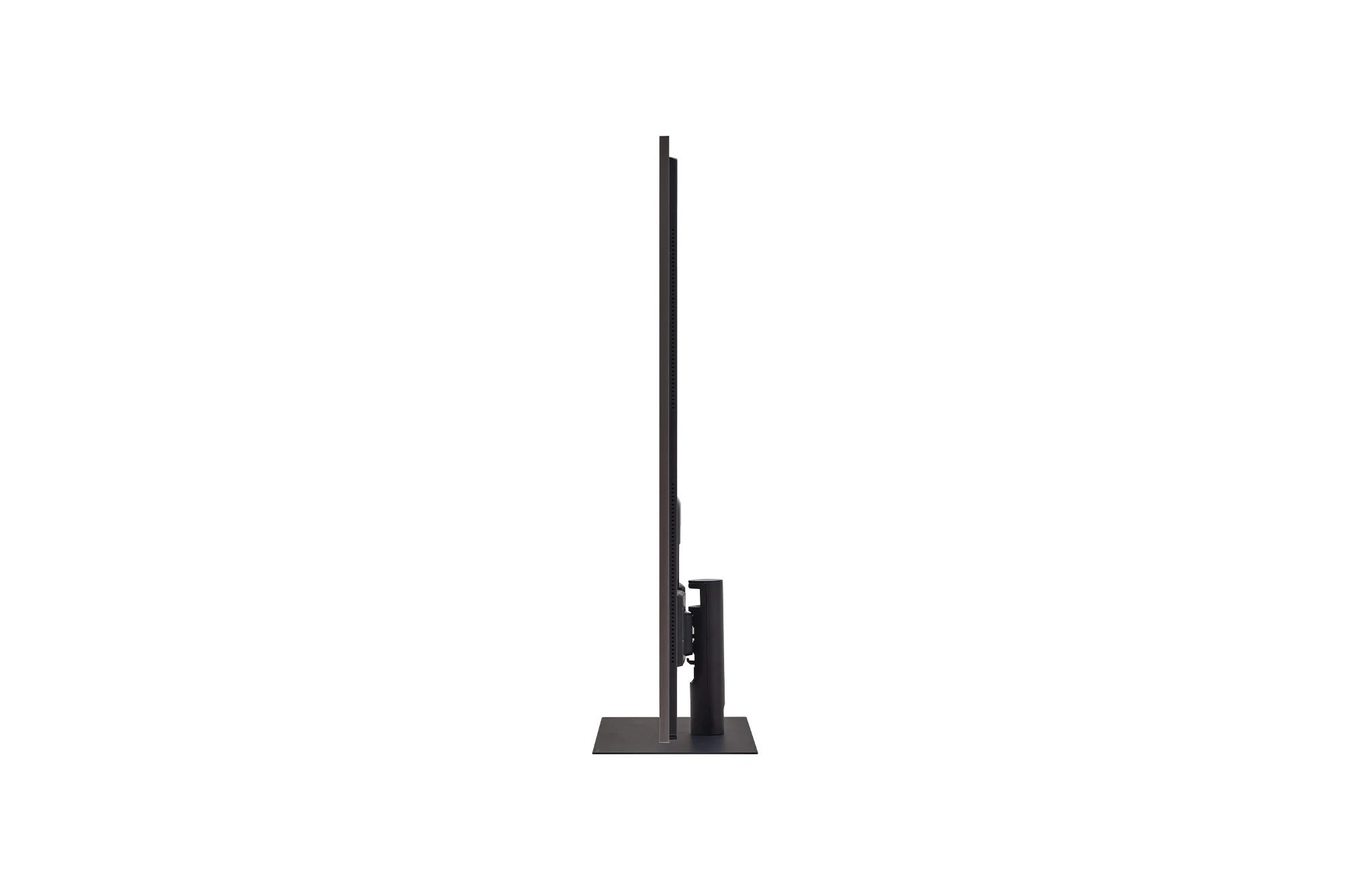

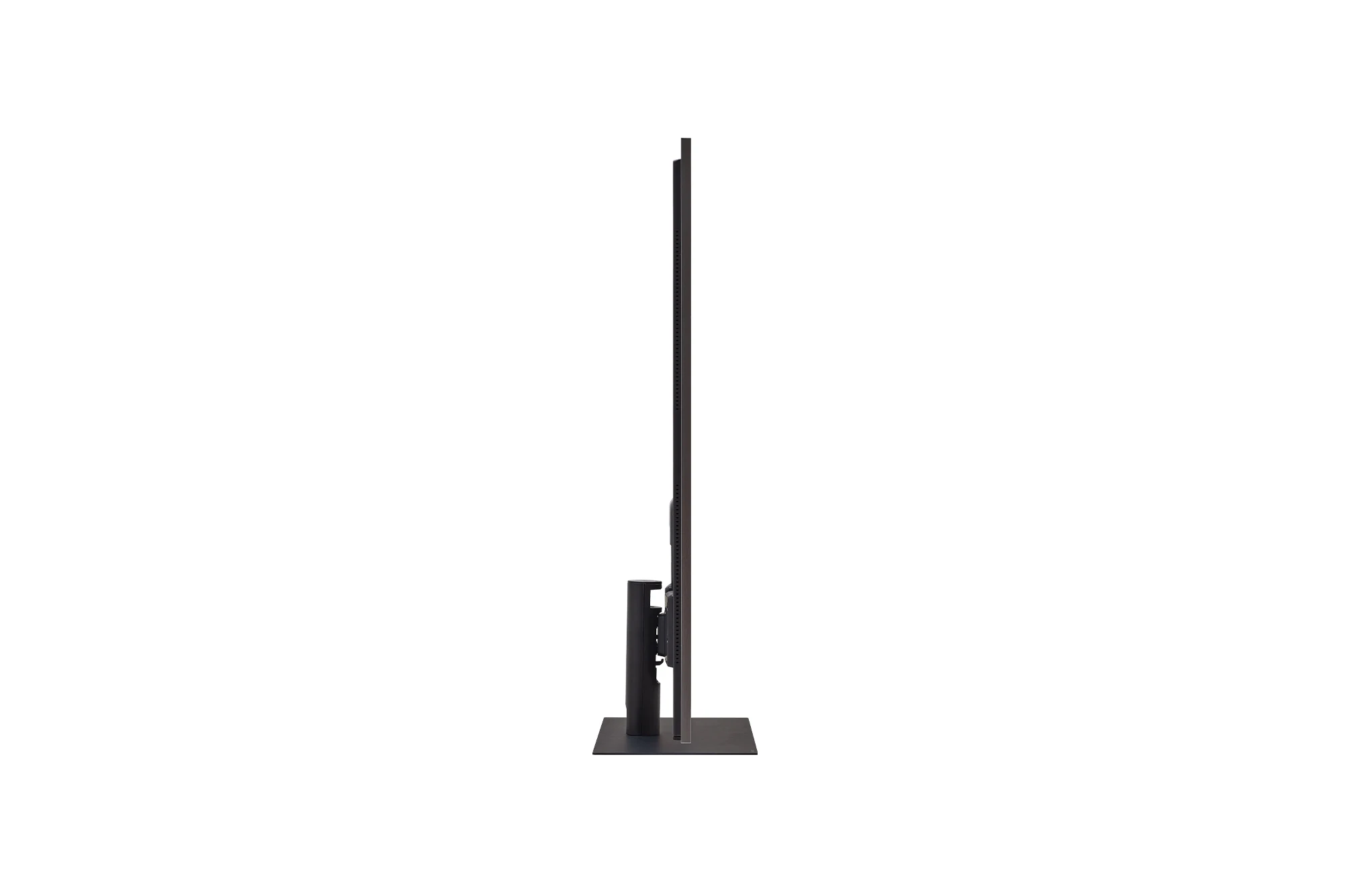

OLED Pro Monitor EP5Q, -90 degree side view

LG 65EP5Q OLED Pro

65EP5Q

S$19,417.39

Size / Model

Request for Quotation

LG 65EP5Q OLED Pro

Key product features

65-inch OLED panel with 3,840 × 2,160 UHD resolution and 120 Hz refresh rate
99.5% DCI-P3 coverage and 10-bit colour depth
Brightness: 2,900 / 2,200 / 1,000 / 330 nit at APL 3% / 10% / 25% / 100%
Professional 3D LUT support and up to 10 custom user profiles
HDMI, 12G-SDI and SFP+ interfaces; landscape installation only

Overview

Professional OLED for production

Designed for broadcast studios and colour-grading environments, the 65EP5Q combines UHD OLED imagery with professional monitoring controls.

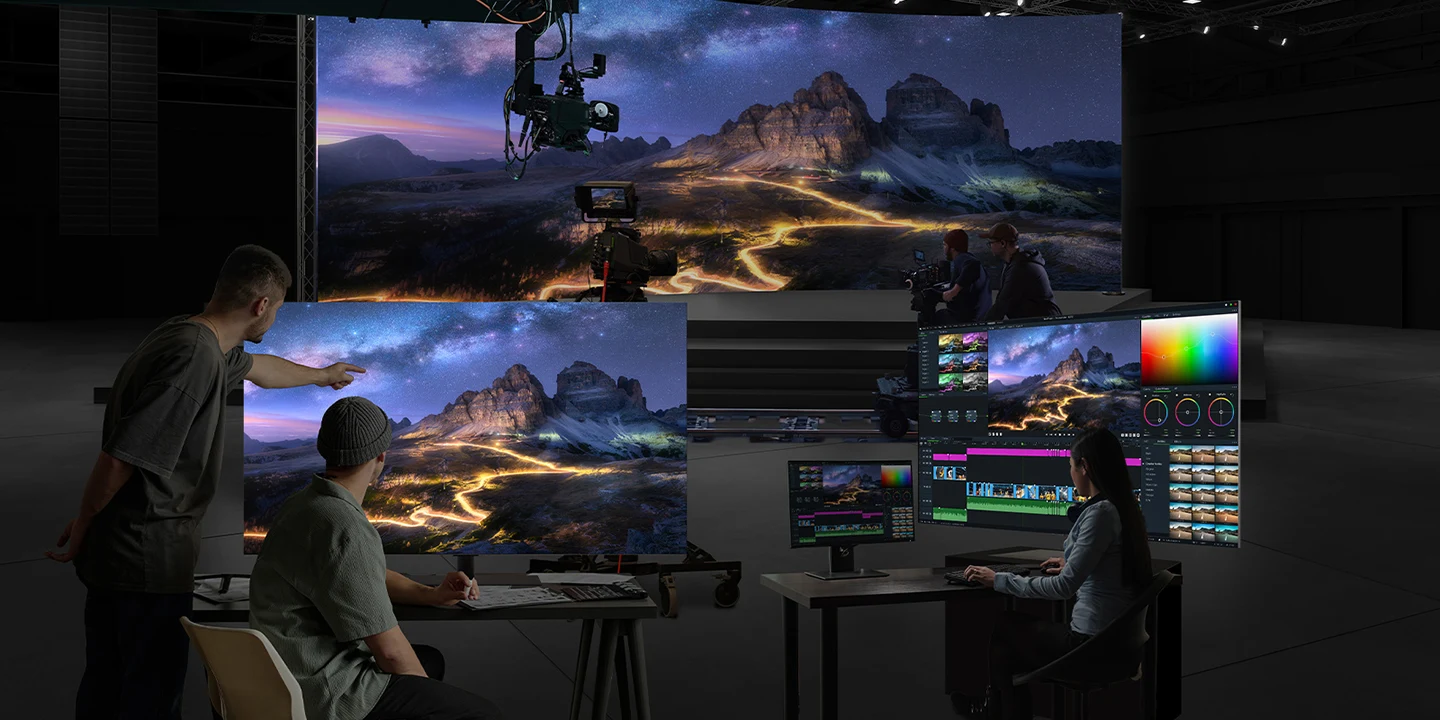

Filming is in progress in a studio with a large LED screen as the background. One 65EP5Q is used for color grading, while another is displaying the output for monitoring. — Manufacturer illustration; screen content is simulated.

Diverse input and output options

HDMI, SDI BNC and SFP+ connections support professional video workflows. 12 Gbps 4K 60p operation is limited to YCbCr 4:2:2 10-bit. SFP+ support is specified for an Embrionix SDI module.

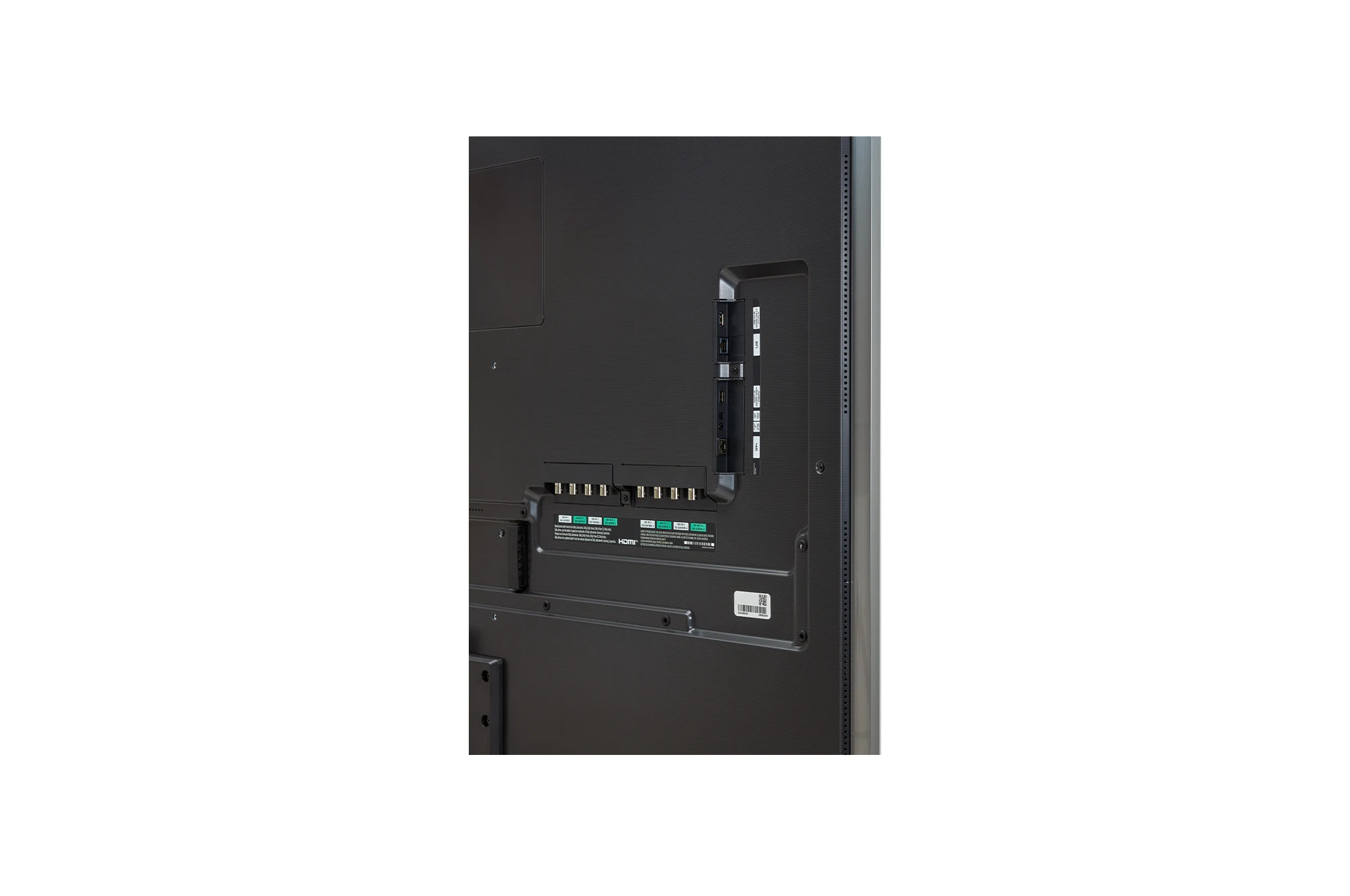

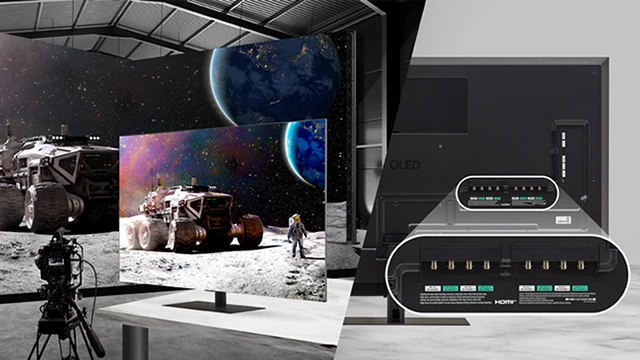

The left image shows content being monitored in a studio using the 65EP5Q, while the right image displays a close-up of the 65EP5Q’s rear interface, showcasing its diverse input and output options. — Manufacturer illustration; screen content is simulated.

Consistent luminance and colour

Localised brightness compensation helps maintain luminance and colour consistency across the screen.

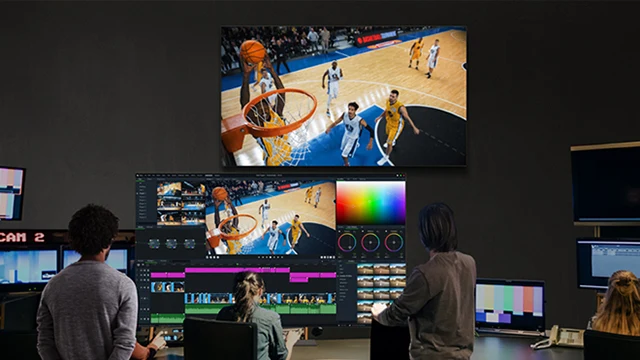

A basketball game broadcast is being monitored on the 65EP5Q, which displays consistent and accurate colors across the entire screen without distortion, regardless of viewing angle. — Manufacturer illustration; screen content is simulated.

Professional 3D LUT support

Import and control professional 3D lookup tables to support colour-grading workflows.

The left screen shows an underwater scene that appears muted due to murky colors, while the OLED Pro display on the right, which supports 3D LUT, delivers a more vivid and accurate representation of the underwater environment. — Manufacturer illustration; screen content is simulated.

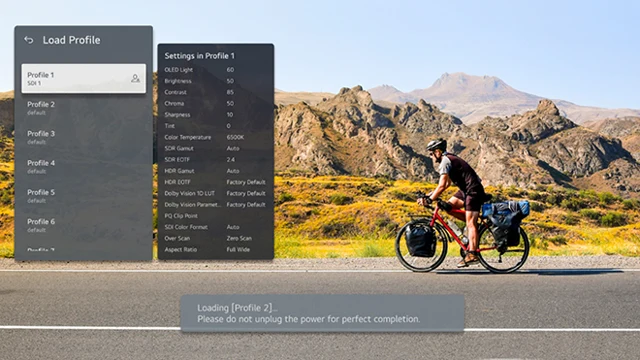

Custom user profiles

Store up to 10 custom user profiles with password protection for repeatable monitoring configurations.

Manufacturer illustration; screen content is simulated.

Specifications

Panel

Screen Size	65"
Panel Technology	OLED
Back Light Type	OLED
Aspect Ratio	16 : 9
Native Resolution	3,840 X 2,160 (UHD)
Refresh Rate	120 Hz
Brightness	2,900 / 2,200 / 1,000 / 330 nits (APL 3% / 10% / 25% / 100%)
Contrast Ratio	3,300,000 : 1
Color gamut	(DCI-P3) 99.5%
Viewing Angle (H x V)	178 × 178
Color Depth	10 bit, 1.07 Billion Colors
Response Time	0.1 ms (G to G)
Surface Treatment (Haze)	1%
Life Time (Typ.)	30,000 Hrs
Operation Hours (Hours / Days)	12 / 7 (Moving Content Only)
Portrait / Landscape	No / Yes

Mechanical Specification

Bezel Color	Silver
Bezel Width	1.5 / 1.5 / 1.5 / 1.5 mm (T / R / L / B, Off Bezel) 6.2 / 6.2 / 6.2 / 11.1 mm (T / R / L / B, On Bezel)
Weight (Head)	22 kg
Weight (Head+Stand)	27.3 kg
Packed Weight	34.1 kg
Monitor Dimensions (W × H × D)	1,441 × 826 × 24.3 mm
Monitor Dimensions with Stand (W × H × D)	1, 441 × 895 / 910 × 263 mm
Carton Dimensions (W × H × D)	1,600 × 970 × 172 mm
VESA™ Standard Mount Interface	300 × 300 mm

Key Feature

HW	Internal Memory (eMMC) 16GB, Wi-Fi & Bluetooth (Built-in), Temperature Sensor, Power Indicator, Local Key Operation, Fan (Built-in)
SW	webOS 8.5, No Signal Image, PBP, PIP (2), ISM Method
Picture	Color Adjustment (OLED Light, Brightness, Contrast, Chroma, Sharpness, Tint, White Balance Control), Color Temp (VAR Temp. / 9,300K / 6,500K / 5,400K / 3,200K / D65 (6,504K) / C (6,774K) / D-Cinema (6,302K)), Over Scan (Zero Scan, Over Scan, Under Scan), Aspect Ratio (Auto, Original, Full Wide, 4:3, 14:9, 13:9, 1.85:1, 2.35:1, 1:1), Zoom (x2 - x5), HDR / SDR Monitoring (Yes), Calibration SW (SuperSign WB - Including Uniformity Compensation, 9p / 13p / 25p, EBU Grade 1), 3rd Party Cal. SW Compatibility (CalMAN - including Uniformity Compensation, 9p / 13p / 25p, EBU Grade 1), Eyesafe Certification, DeltaE < 2
Color	Gamut (Auto / Native / BT.709 / BT.2020 / sRGB / AdobeRGB / P3 / Cali 1 BT.709 / Cali 1 BT.2020 / Cali 1 sRGB / Cali 1 AdobeRGB / Cali 1 P3), SDI Color Format (Auto, RGB444, YCbCr444, YCbCr422), Custom 3D LUT File Import (Through USB), R/G/B Gain (Adjustable (0 - 1,023)), Mono/Blue Only, Transfer Matrix, Mastering Peak
EOTF	Auto / User / 1.9 / 2.2 / 2.4 / 2.6 / Cali 1~Cali 10
Audio	Source Selection (SDI1, SDI2, SDI3, SDI4), Level Meter (Ch1 - 16, Selectable), Sound Mode, Dolby Atmos
Advanced	Profile Load / Save (Profile 1~10), Function Key (Function1~5), VPID, Internal Signal Pattern , LG Connect, 3rd Party Control Pad Compatibility (Open API), Remote IP Control App (HTML)
OLED Panel Setting (for Image Sticking Prevention)	TPC Auto-Dimming (Temporal Peak Luminance Control), Pixel Cleaning, Screen Shift, Logo Luminance Adjustment, GSR Auto Dimming (Global Sticky Reduction), Convex Power Control

Environment Conditions

Operation Temperature	0 °C to 40 °C
Operation Humidity	10 % to 80 %

Power

Power Supply	AC 100-240 V ~, 50/60 Hz
Power Type	Built-In Power

Power Consumption

Typ./Max.	120 W (IEC 62087) / 450 W
Power off	0.5 W
BTU (British Thermal Unit)	TBD

Certification

Safety	CB / NRTL
EMC	FCC Class "A" / CE / KC
ErP	Yes (EU Only)

Software Compatibility

SuperSign WB	Yes

Connectivity

Input	HDMI (HDCP 1.4 / 2.2), RS-232C (Service Only), RJ45 (LAN, 100Base-T), USB 2.0 Type A, SDI ((4 (12G × 4), Single Link : SD/HD/3G/6G/12G, Dual Link : HD/3G_4K, Quad Link : HD_4K / 3G_4K, Quad View : HD/3G/6G/12G)), SFP+ (Support Only for the Embrionix's SDI Module)
Output	Audio, SDI (4, Loop-Through)

Sound

Speaker	15 W × 2

Language

OSD	English

Accessory

Basic	Remote Controller, IG (Installation Guide), Regulation Book, Stand (Base, Body, Neck, Cable Holder, Screw), AV Cover, Wall Mount Cover

Special Feature

Special Feature	Conformal Coating (Power Board)
