LG 55EW5P Transparent OLED Signage

S$36,951.00

The LG 55EW5P is a 55-inch transparent OLED signage display that overlays Full HD content while keeping objects behind the screen visible. Its 43% transparency, slim metal borders and flexible installation suit museums, retail displays and premium interior applications.

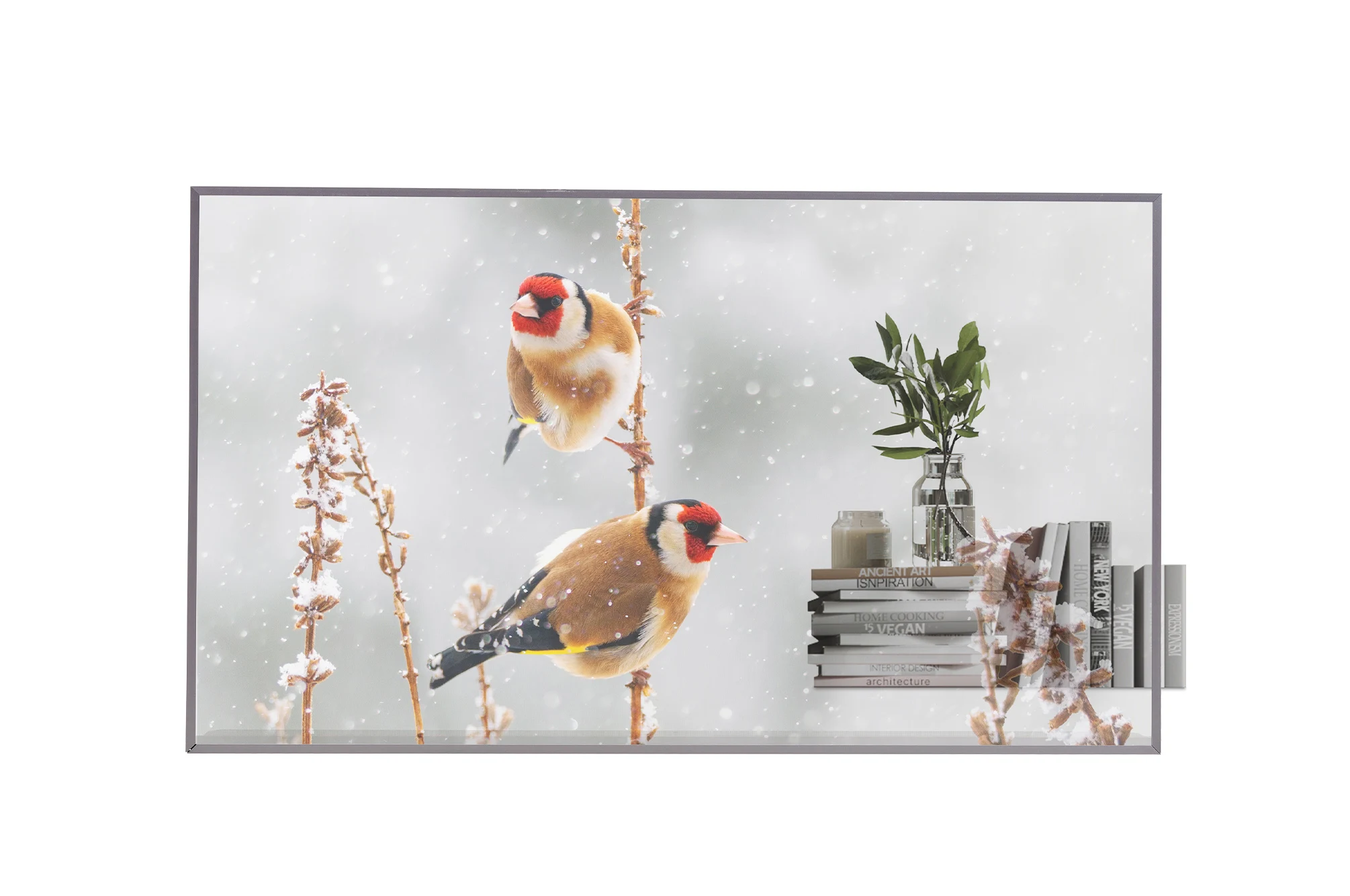

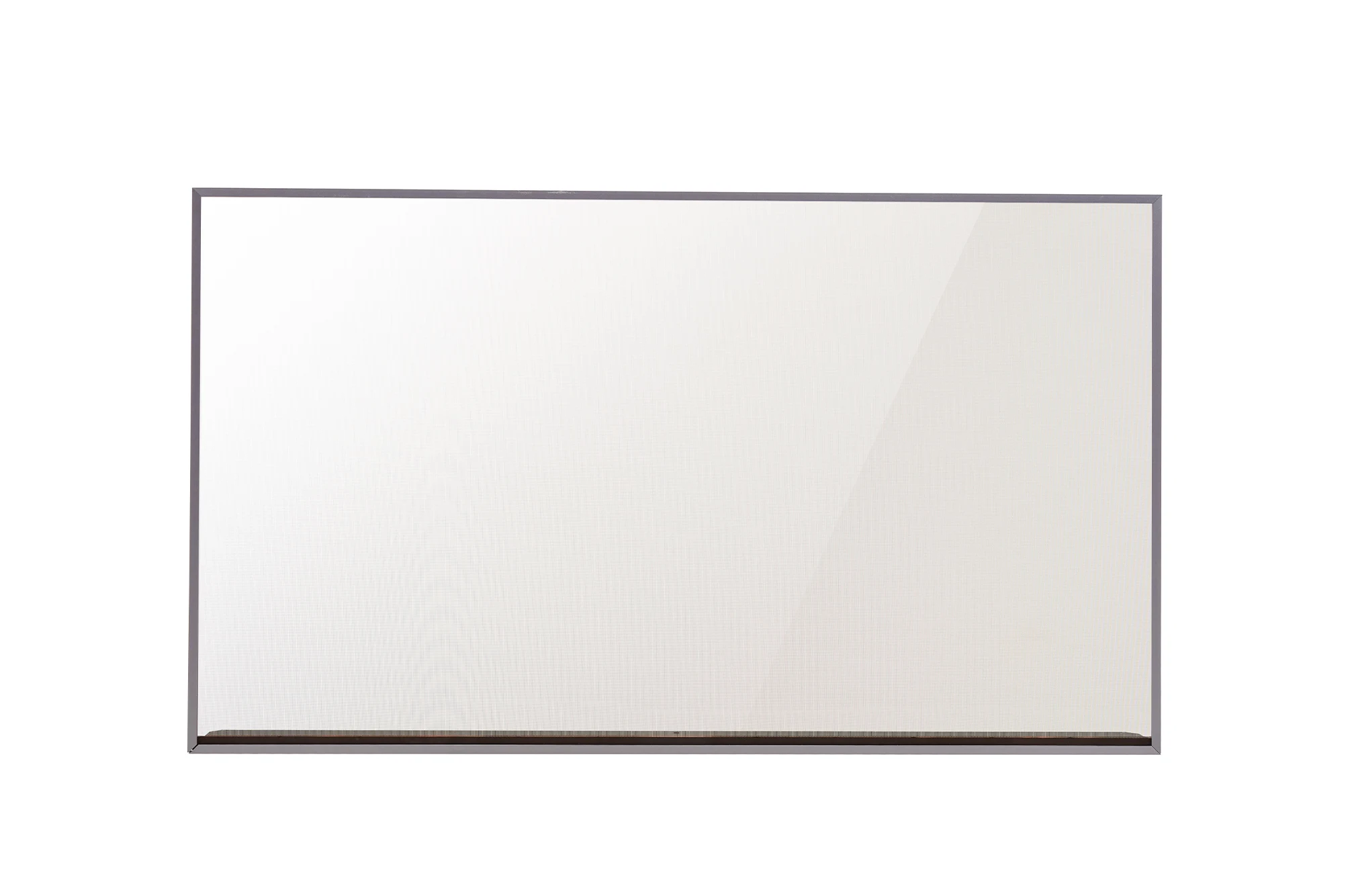

Transparent OLED EW5P, Front view with infill image

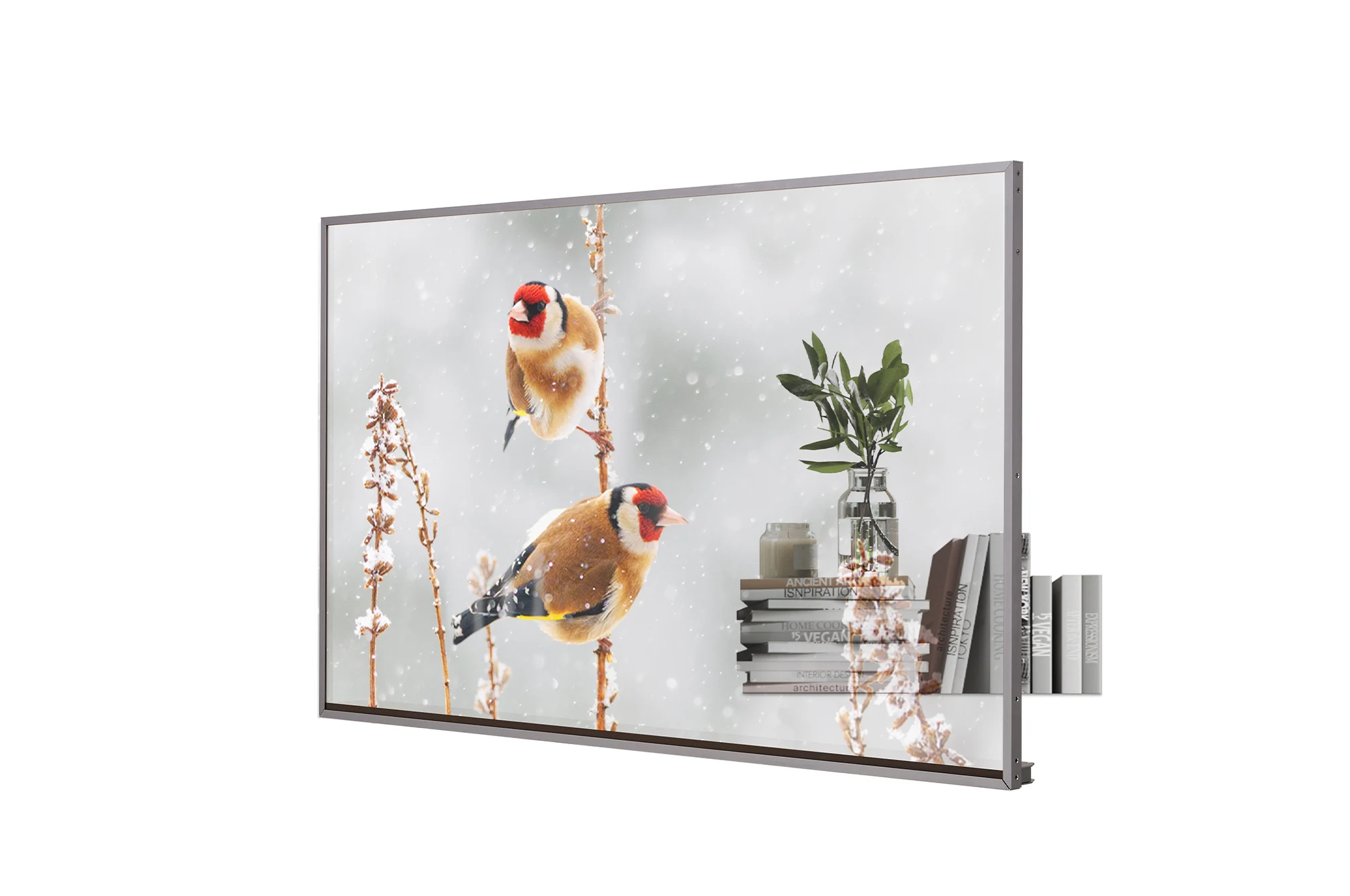

Transparent OLED EW5P, -45 degree side view with infill image

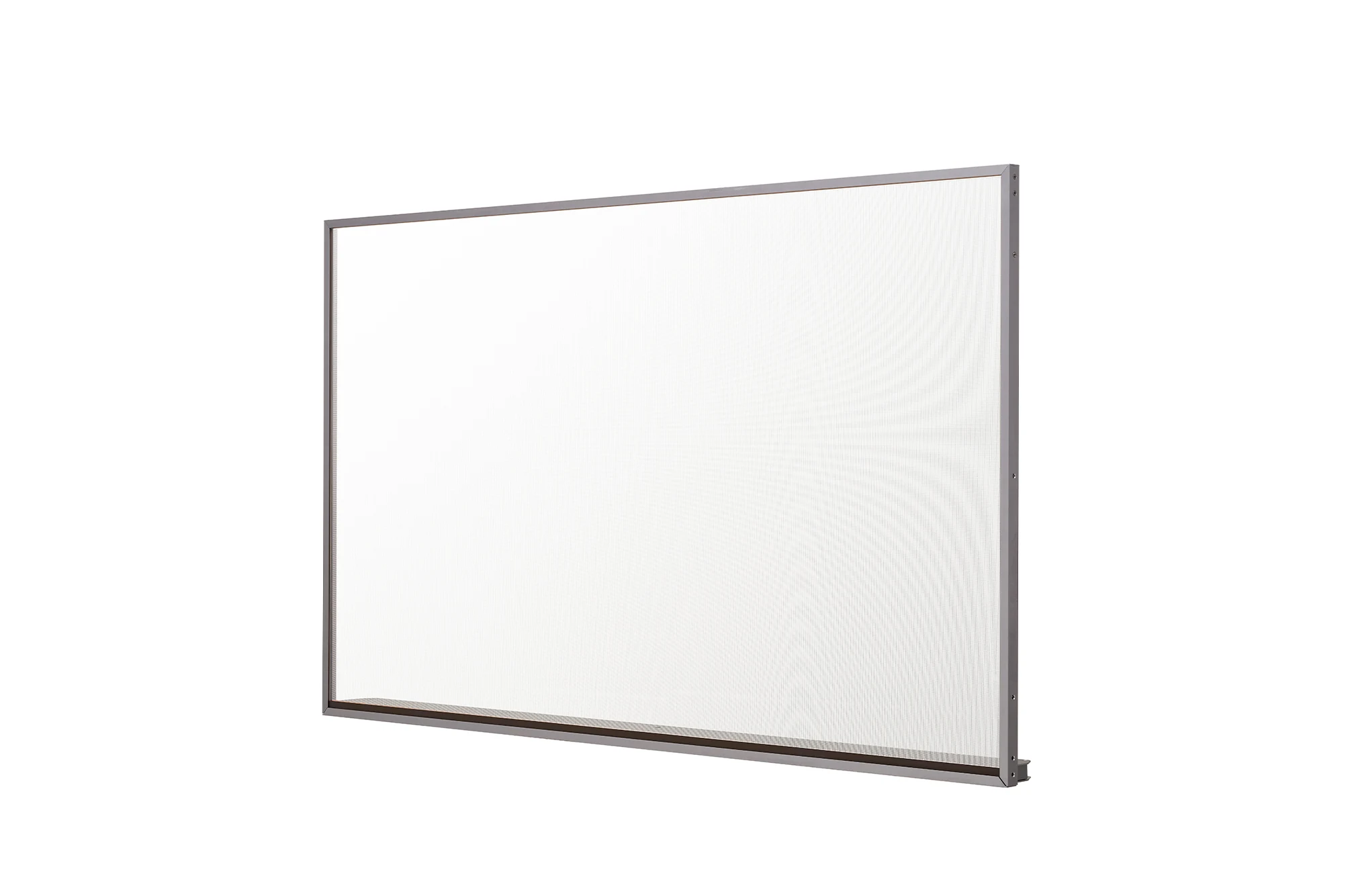

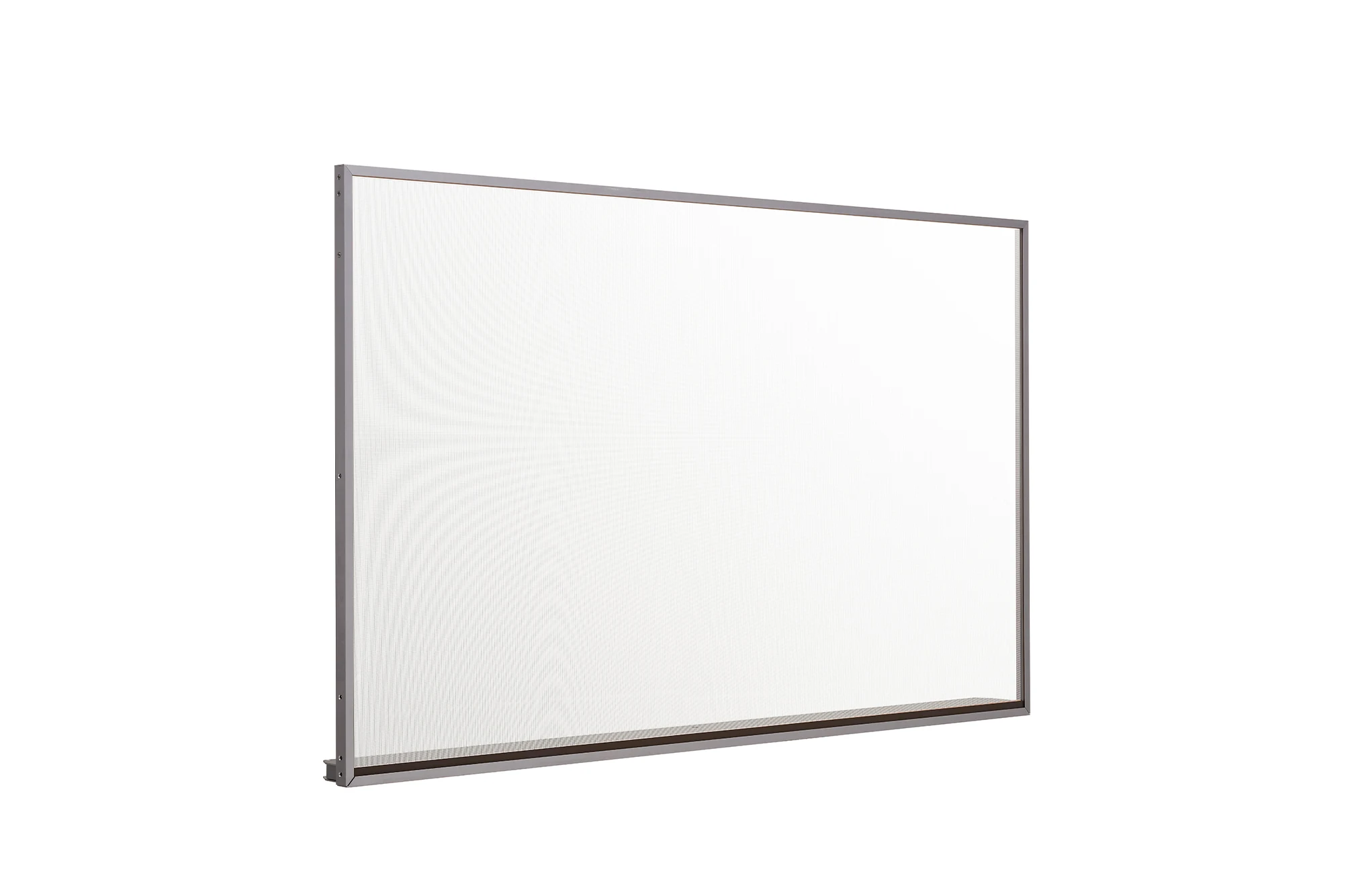

Transparent OLED EW5P, -45 degree side view

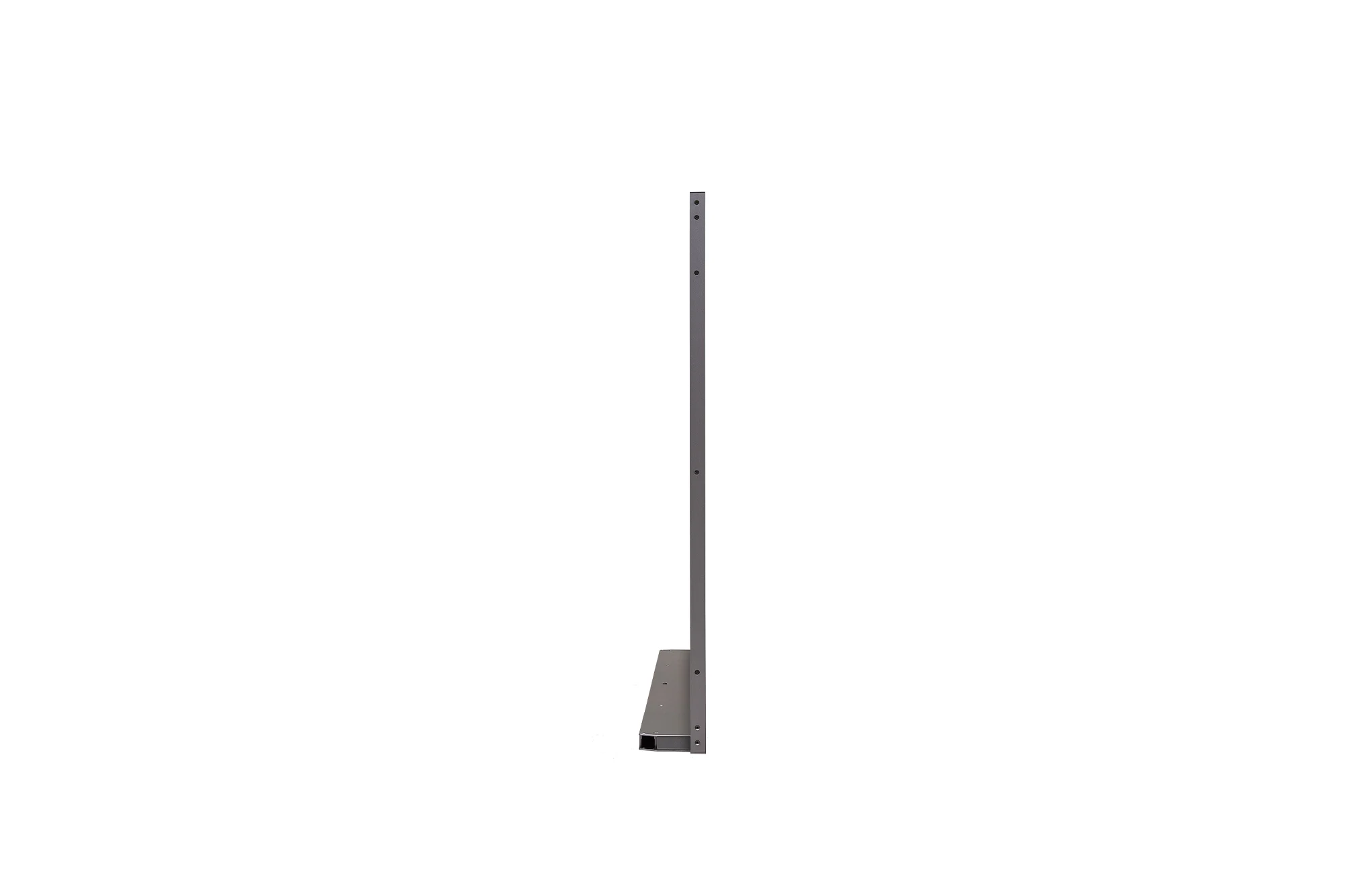

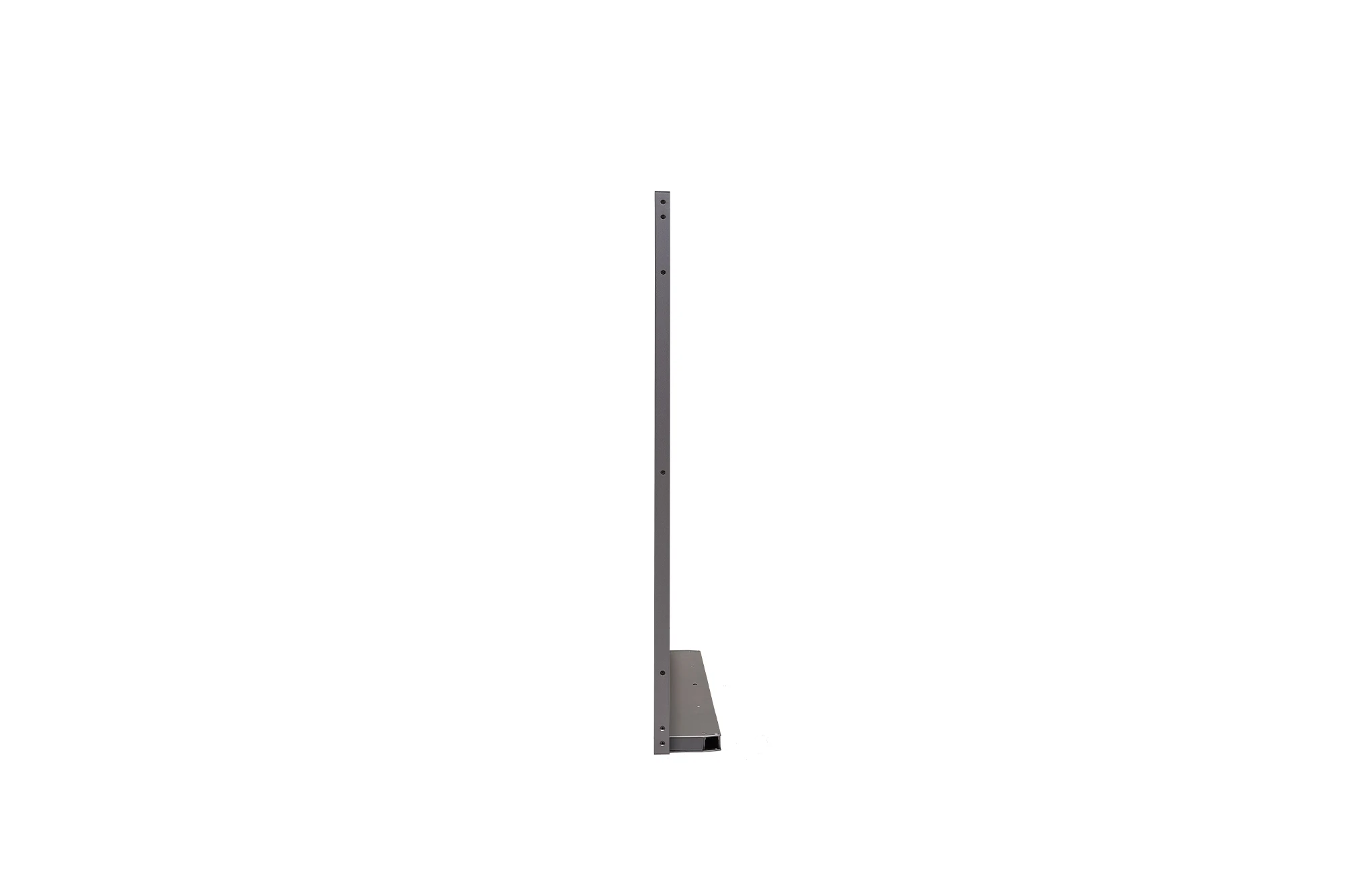

Transparent OLED EW5P, -90 degree side view

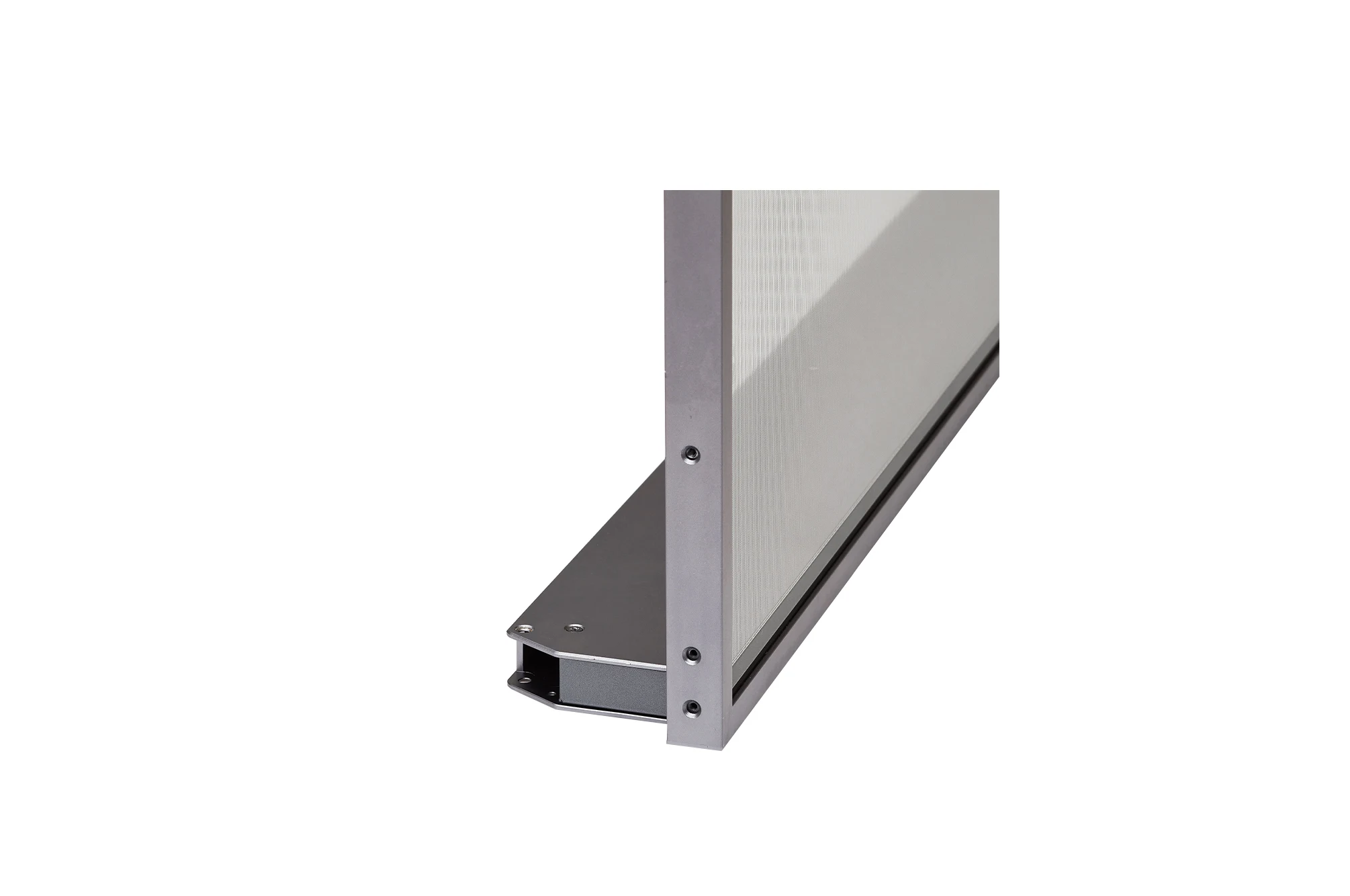

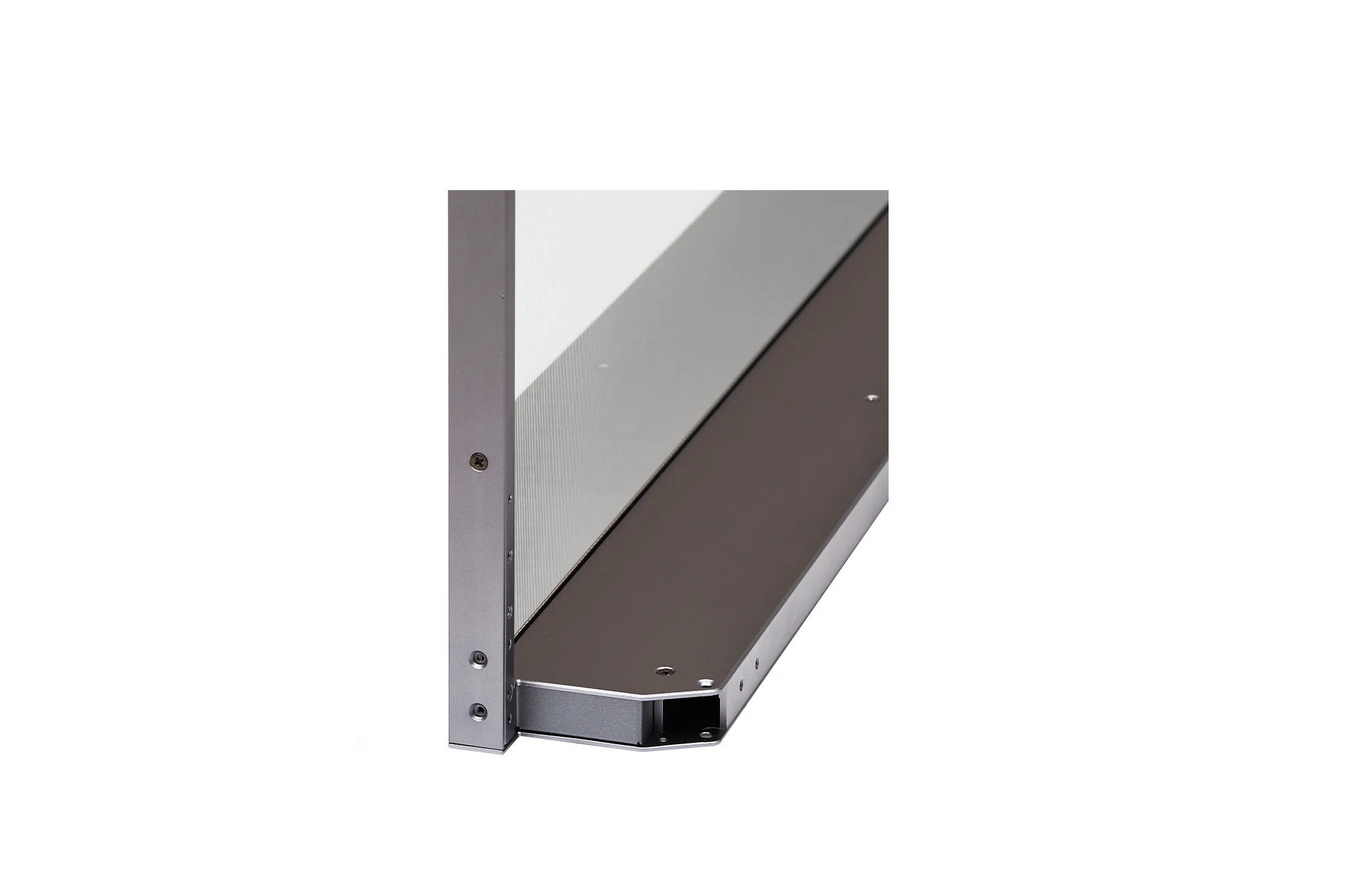

Transparent OLED EW5P, Close-up image of bottom

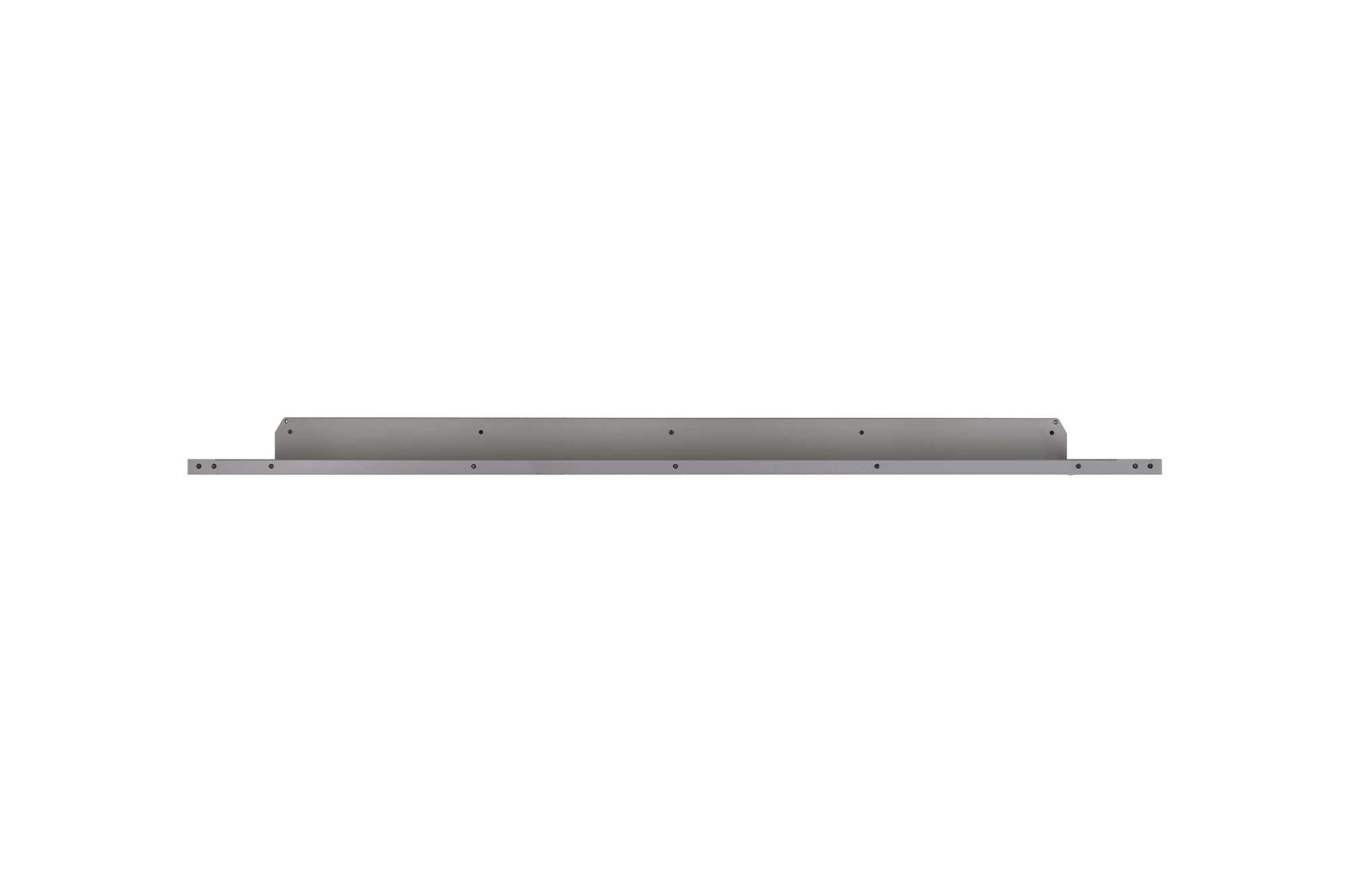

Transparent OLED EW5P, Close-up image of bottom 2

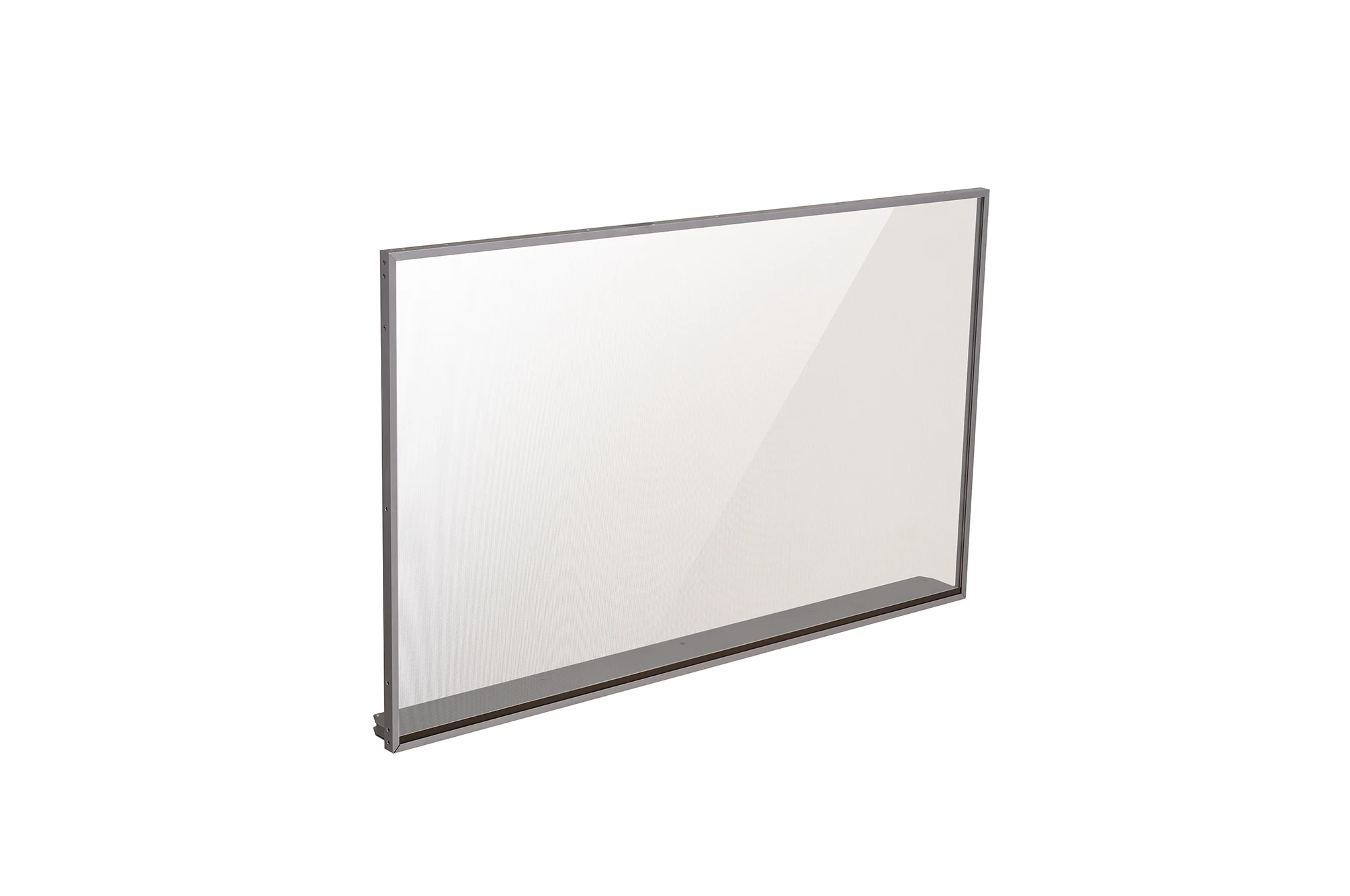

Transparent OLED EW5P, Image taken from the top right

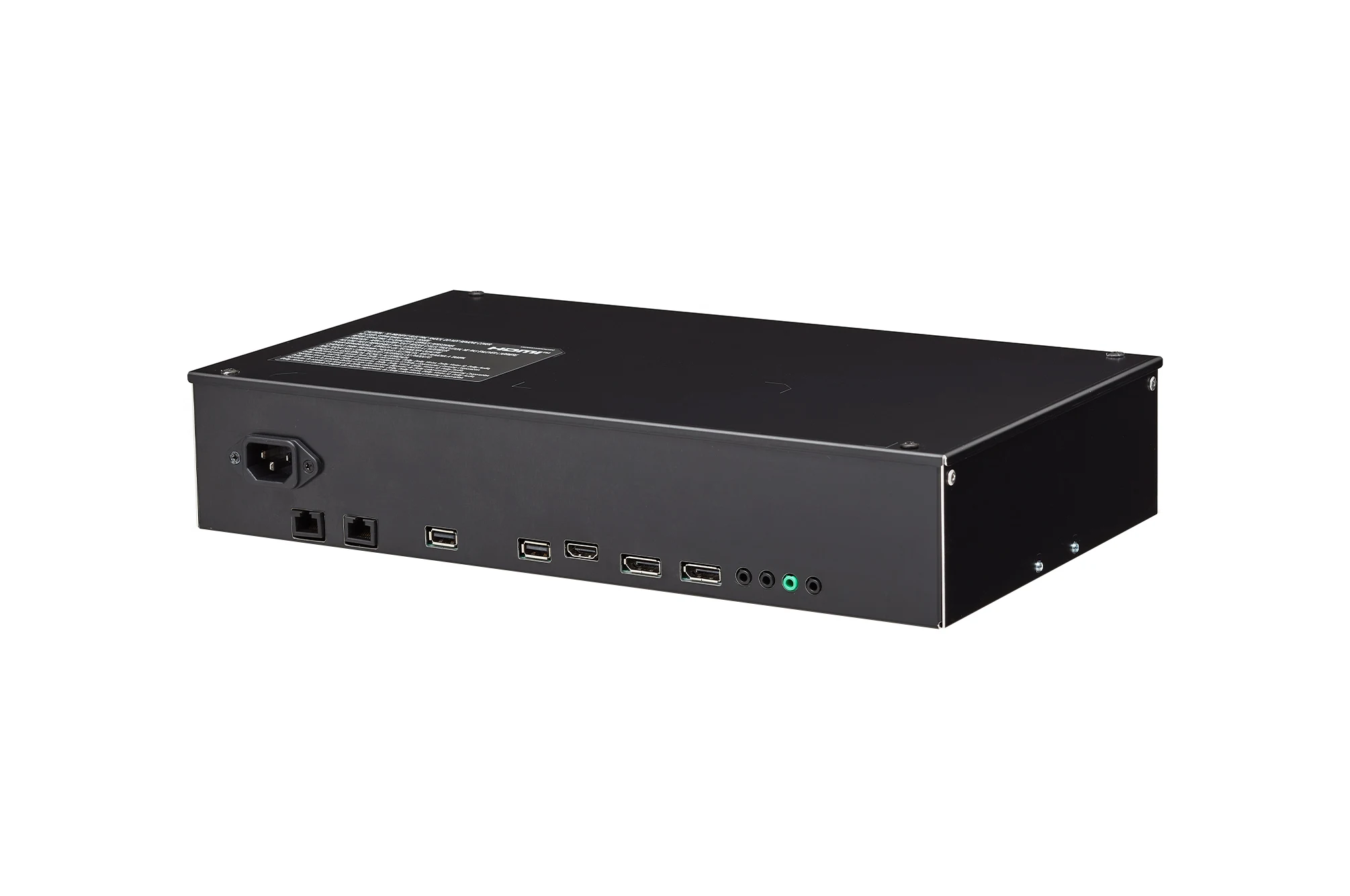

Transparent OLED EW5P, -45 degree side view of set-top box

Transparent OLED EW5P, Front view of set-top box

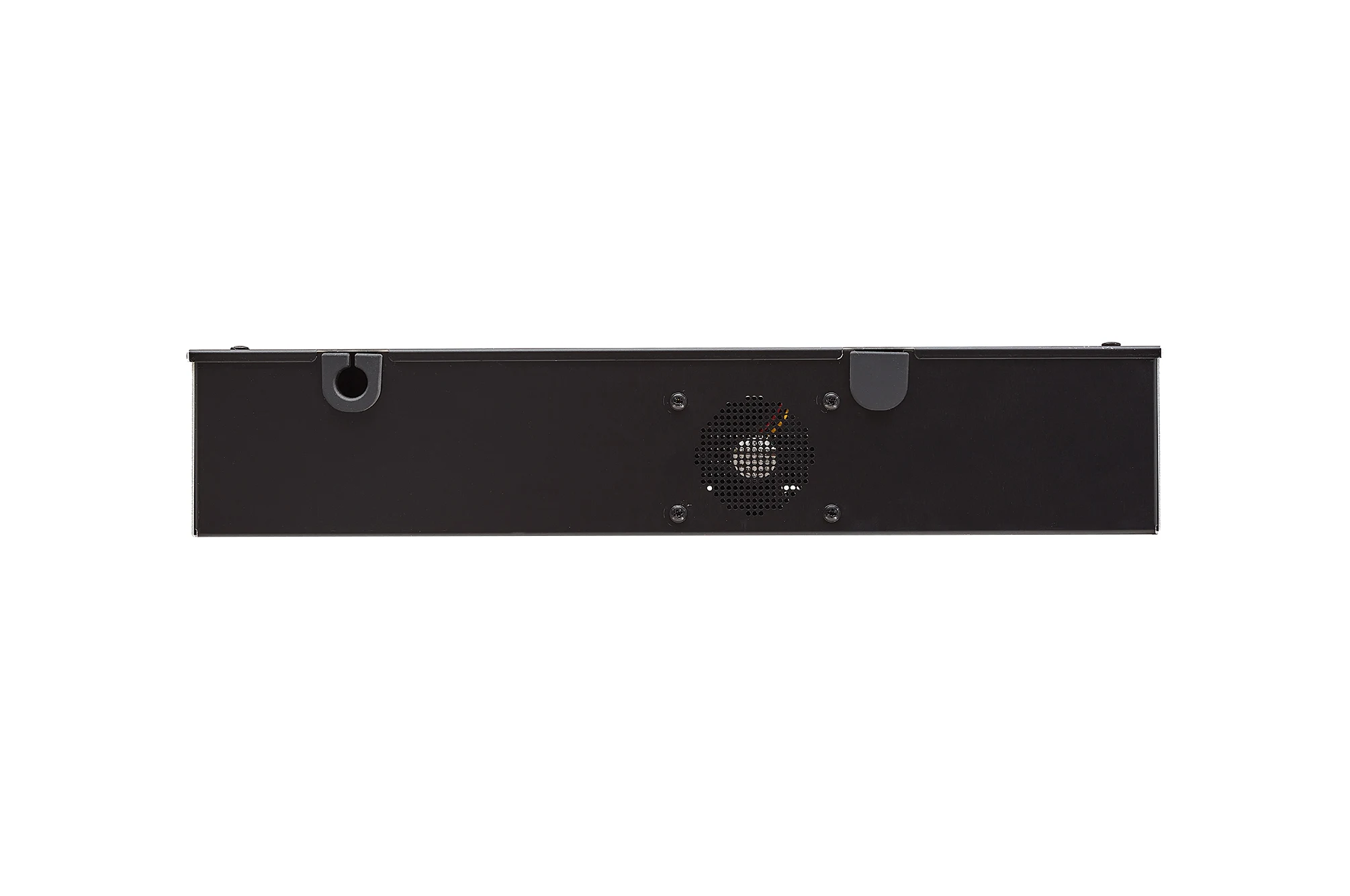

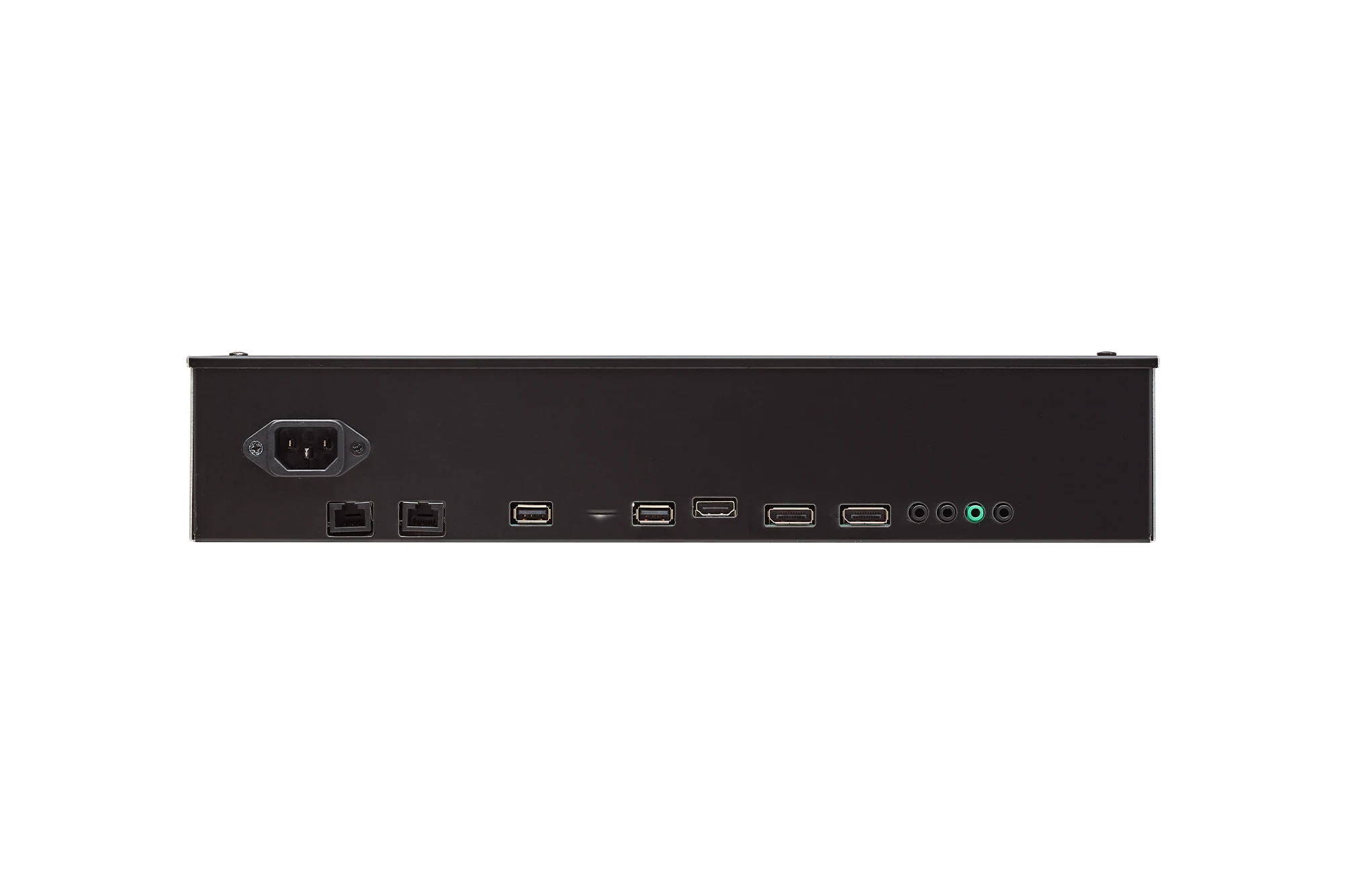

Transparent OLED EW5P, Rear view of set-top box

LG 55EW5P Transparent OLED Signage

55EW5P

S$36,951.00

Size / Model

Request for Quotation

LG 55EW5P Transparent OLED Signage

Key product features

55-inch transparent OLED with 1,920 × 1,080 Full HD resolution
43% set transparency, based on LG Display internal testing
Brightness: 200 / 600 nit at APL 100% / 25%, without glass
Even 12.2 mm bezel and protective chemically strengthened glass
Portrait and landscape installation; 18/7 operation with moving content only

Overview

See beyond the screen

Transparent OLED overlays visual content while allowing customers to see objects and spaces behind the display.

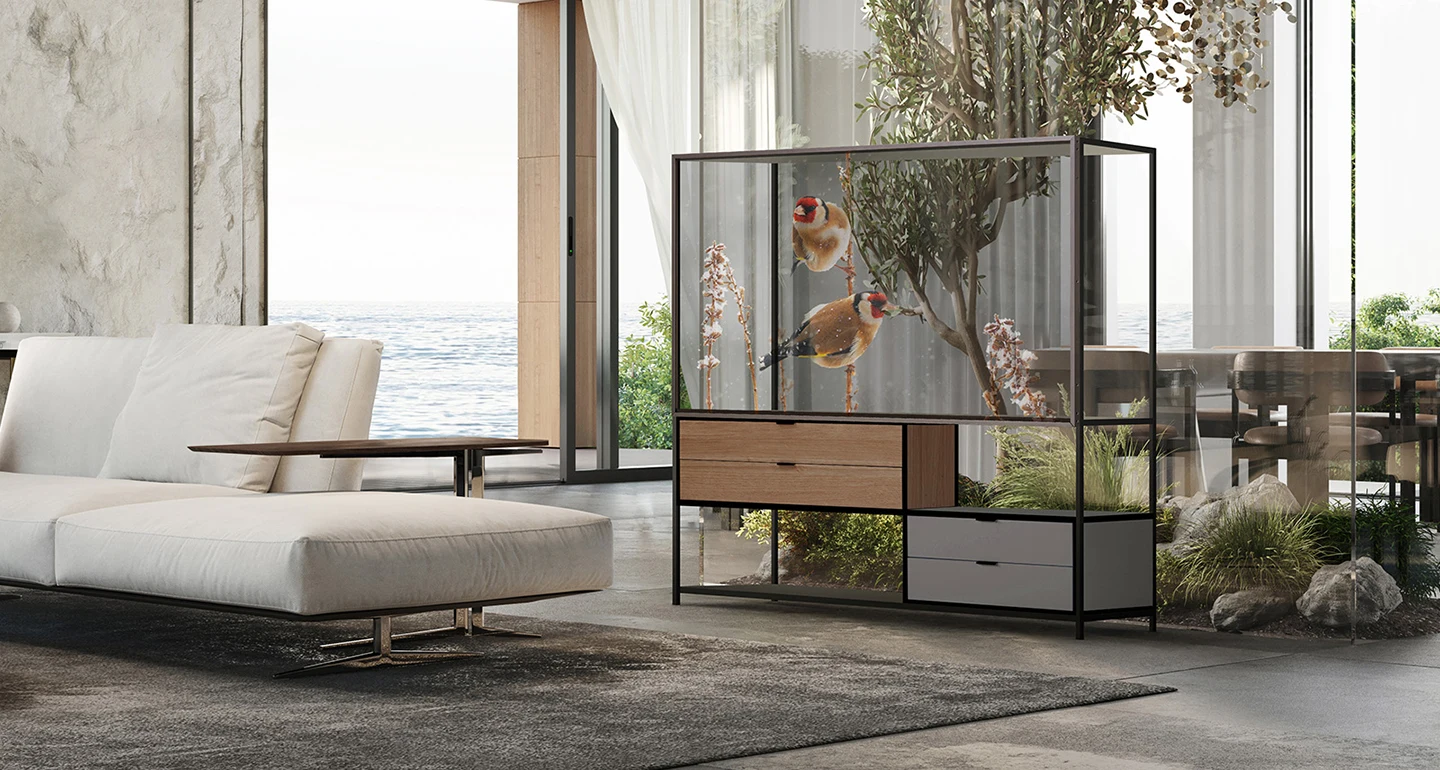

In the living room of a luxurious house with a high floor ocean view, furniture features an integrated transparent OLED display. The screen shows images of birds that blend seamlessly with the large tree visible behind the transparent display. — Manufacturer illustration; screen content is simulated.

High transparency

The display achieves 43% set transparency without a backlight unit or liquid-crystal layer. LG Display measured transparency using a hazemeter in internal testing in 2022.

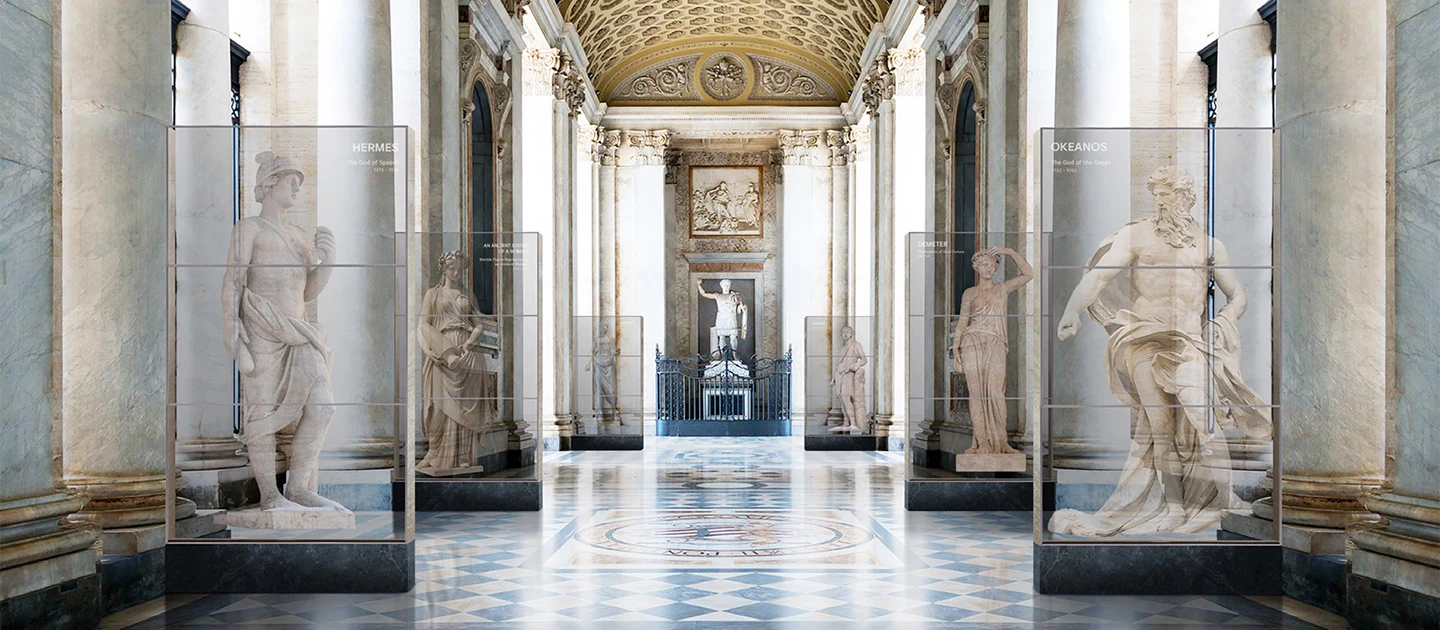

Transparent OLED screens are installed on both sides of the corridors in the museum. The screens display images of ancient statues along with information about them, with three 55EW5P stacked vertically to form the display. — Manufacturer illustration; screen content is simulated.

Sleek integration

A clean metal finish supports integration with furniture, walls and premium interior spaces.

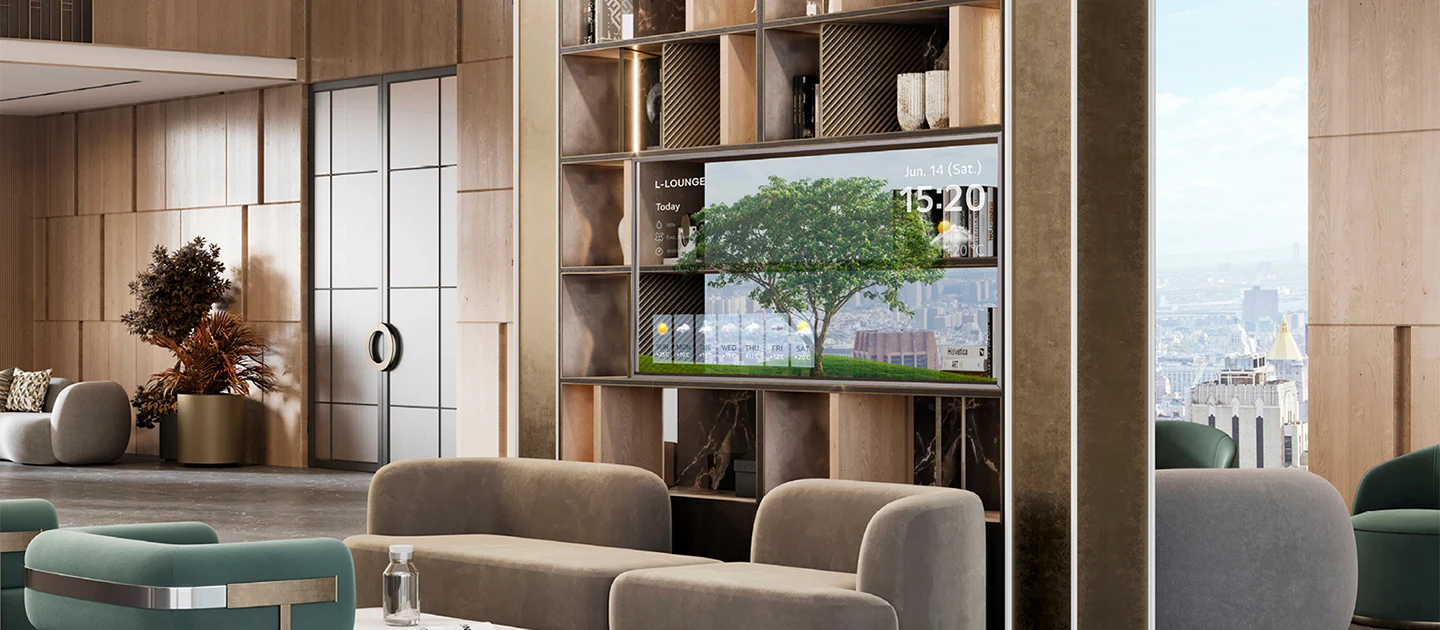

There’s an open display unit in the large lounge with a transparent OLED screen installed in its center. The screen shows images of trees along with the current time and weather information, and the scenery visible through the transparent screen makes the space feel more expansive. — Manufacturer illustration; screen content is simulated.

Expandable installation

The mechanical design supports a single display or multi-display transparent wall, according to installation requirements.

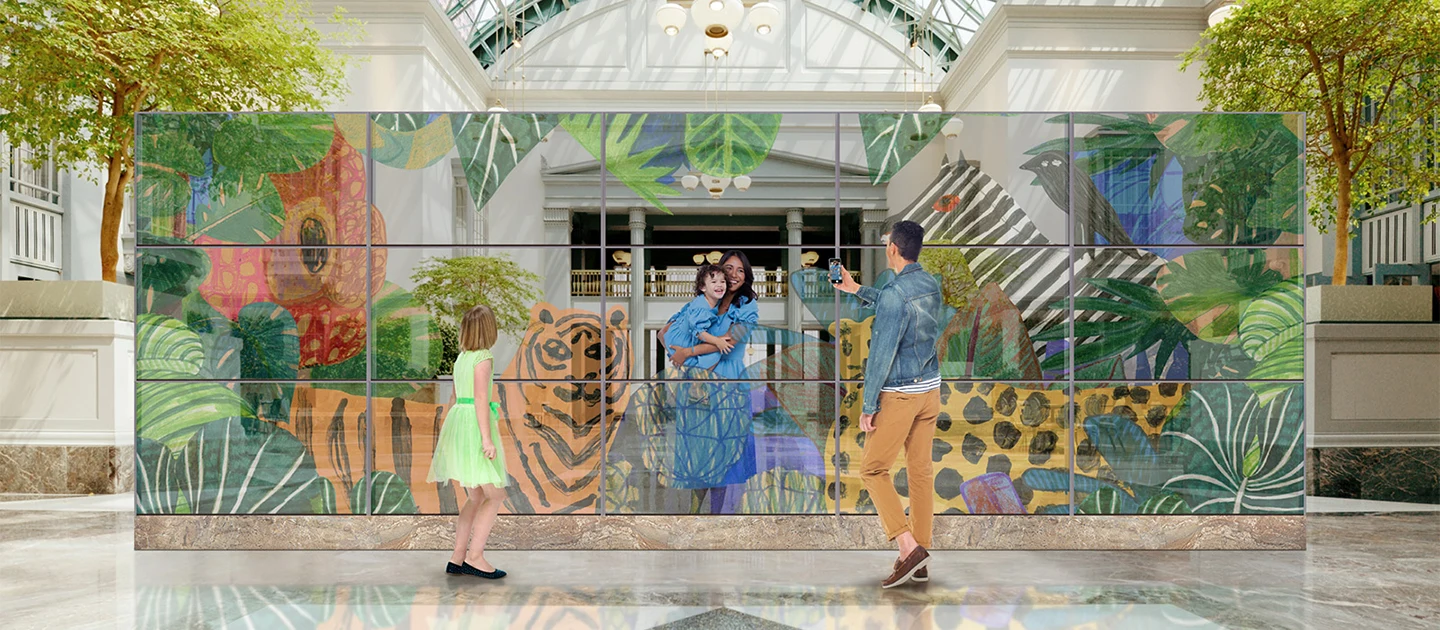

A family is taking a photo with a transparent OLED wall made up of 3ⅹ5 55EW5P indoors. The father, standing in front of the wall, is taking a picture of the mother and child, who are standing behind the wall with animals and plants naturally displayed on the screen. — Manufacturer illustration; screen content is simulated.

Installation and stability

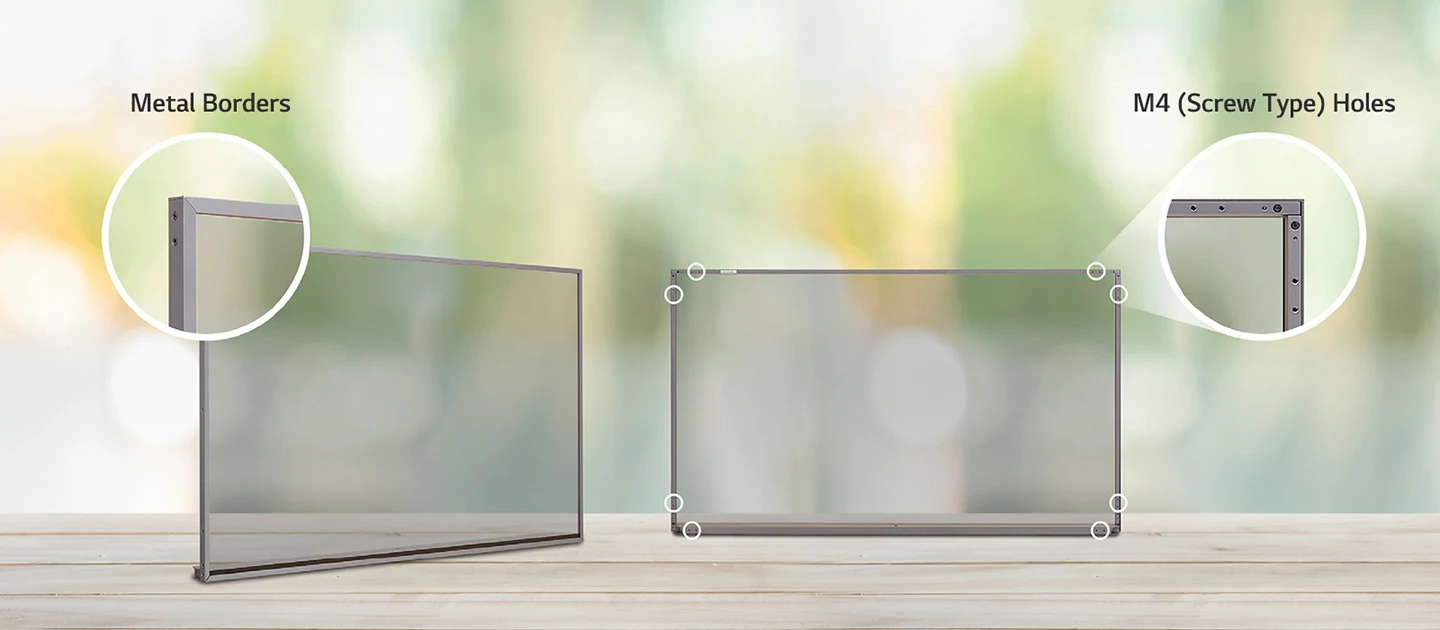

Metal borders improve rigidity. M4 screw holes at all rear corners facilitate installation; screws are not supplied.

The metal borders on the bezel areas of the 55EW5P, along with the M4 (screw type) holes at each edge, are shown in an enlarged view. — Manufacturer illustration; screen content is simulated.

Applications

Suitable illustrative applications include museums, retail displays, photo walls, premium interiors and airport lounges.

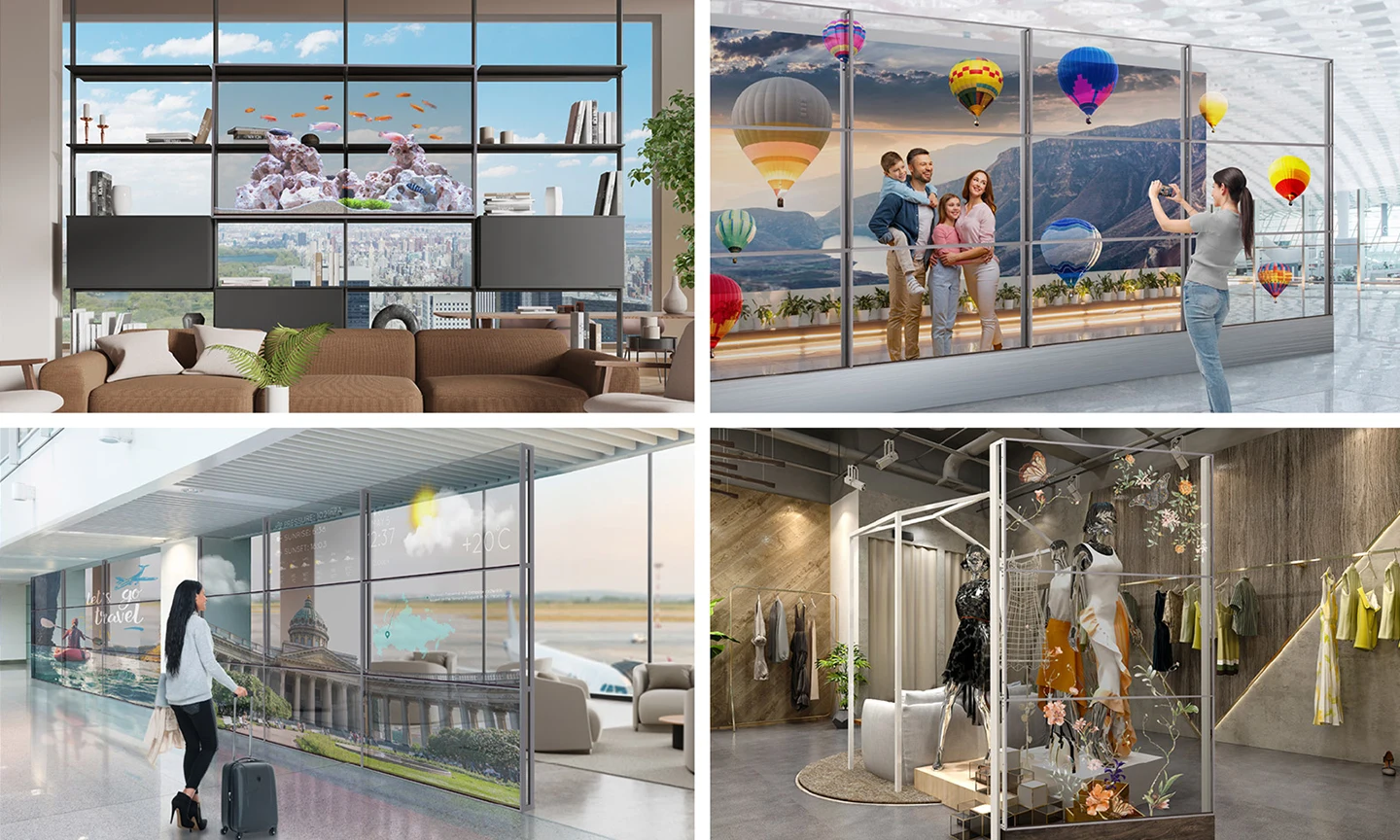

"1. Used in the living room of a luxurious house 2. Used as a photo wall 3. Used as a wall at the airport lounge entrance 4. Used in a retail shop" — Manufacturer illustration; screen content is simulated.

Specifications

Panel

Screen Size	55"
Panel Technology	OLED
Back Light Type	OLED
Aspect Ratio	16 : 9
Native Resolution	1,920 × 1,080 (FHD)
Refresh Rate	120 Hz
Brightness	200 / 600 nit (APL 100% / 25%, without Glass)
Contrast Ratio	200,000 : 1
Dynamic CR	No
Color gamut	DCI 90%, BT709 110%
Viewing Angle (H x V)	178 × 178
Color Depth	10 bit (R), 1.07 Billion Colors
Response Time	0.1 ms (G to G), 8 ms (MPRT)
Surface Treatment (Haze)	Haze 3% (Set), Hard Coating (5 H)
Lifetime	30,000 Hrs (Typ.)
Operation Hours (Hours / Days)	18 / 7 (Moving Content Only)
Portrait / Landscape	Yes / Yes
Transparency (Typ.)	43% (Set)
QWP (Quarter Wave Plate)	No

Mechanical Specification

Bezel Color	Transparent
Bezel Width	Even 12.2 mm (T/R/L/B)
Weight (Head)	14.1 kg (Head), 2.6 kg (Signage Box)
Packed Weight	30.0 kg
Monitor Dimensions (W × H × D)	1,237.6 × 717.9 × 86.5 mm (Head), 381.6 × 217.6 × 73.6 mm (Signage Box)
Carton Dimensions (W × H × D)	1,368 × 245 × 957 mm
Protection Glass (Thickness)	3.0 mm
Protection Glass (Tempered / Chemical Strengthening)	Chemical Strengthening
Protection Glass (Anti-Reflective)	Yes (Film)
Protection Glass (Shatter-Proof)	Yes

Feature

Key Feature	Internal Memory (eMMC) 16 GB, Temperature Sensor, webOS 7.5, Local Contents Scheduling, Group Manager, USB Plug & Play, Fail Over, RS-232C Sync, Local Network Sync, Video Tag (4), Screen Rotation, External Input Rotation, Gapless Playback, Tile Mode Setting, Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, PM Mode, Wake on LAN, HDMI-CEC, SI Server Setting, Scan Inversion

Key Feature

Internal Memory (eMMC) 16 GB, Temperature Sensor, webOS 7.5, Local Contents Scheduling, Group Manager, USB Plug & Play, Fail Over, RS-232C Sync, Local Network Sync, Video Tag (4), Screen Rotation, External Input Rotation, Gapless Playback, Tile Mode Setting, Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, PM Mode, Wake on LAN, HDMI-CEC, SI Server Setting, Scan Inversion

Environment Conditions

Operation Temperature	0 to 40
Operation Humidity	10%-80%

Power

Power Supply	AC 100-240 V~, 50/60 Hz
Power Type	Built-in Power

Power Consumption

Typ./Max.	70 W (IEC 62087) / 230 W
DPM	0.5 W
Power off	0.5 W
BTU (British Thermal Unit)	239 BTU/Hr (Typ.), 785 BTU/Hr (Max.)

Standard (Certification)

Safety	CB / NRTL
EMC	FCC Class "A" / CE / KC
ErP	Yes

Software Compatibility

SuperSign CMS	Yes
SuperSign Control+	Yes
SuperSign Cloud	Yes
LG ConnectedCare	Yes
Mobile CMS	Yes

Connectivity

Input	HDMI (HDCP 2.2/1.4), DP (HDCP 1.3), RS-232C, RJ45 (LAN), IR (External IR Receiver), USB (2, USB 2.0 Type A), Daisy Chain (HDMI, DP)
Output	DP, Audio, RS-232C, RJ45 (LAN), IR (Sharing RS-232C), Daisy Chain (DP)

Language

Language	English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portugues (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues (Europe), Dutch, Czech, Greek, Polski, Türkçe, Arabic

Accessory

Basic	Remote Controller, Power Cord, QSG, IR Receiver, Regulation Book, Phone to RS-232C Gender, MCX / Harness Cables (3 m × 4 ea / 3 m × 2 ea for Connection between Panel and Signage Box), DP Cable (2 m), LAN Cable (1.5 m), RS-232 Cable (4P-4P, 1.5 m), LC Cable (VLC, 3 m), Screw (M3 × L5.5 Black, 24 ea / M3 × L5.5 Silver, 8 ea / M3 × L6 Black, 14 ea), Cover Shield Assy 1 ea, Cable Rubber 2 ea, Cable Cap Assy 2 ea, Tiling Bracket 2 ea, Signage Box Wing Bracket 2 ea

Basic

Remote Controller, Power Cord, QSG, IR Receiver, Regulation Book, Phone to RS-232C Gender, MCX / Harness Cables (3 m × 4 ea / 3 m × 2 ea for Connection between Panel and Signage Box), DP Cable (2 m), LAN Cable (1.5 m), RS-232 Cable (4P-4P, 1.5 m), LC Cable (VLC, 3 m), Screw (M3 × L5.5 Black, 24 ea / M3 × L5.5 Silver, 8 ea / M3 × L6 Black, 14 ea), Cover Shield Assy 1 ea, Cable Rubber 2 ea, Cable Cap Assy 2 ea, Tiling Bracket 2 ea, Signage Box Wing Bracket 2 ea

Special Feature

Conformal Coating (Power Board)	Yes

Business Resources

LG 55EW5P – Download Product Datasheet (PDF)
