Logitech Rally Bar Mini

Suitable for: 2-7 Seater

All-in-one video bar for small to medium rooms

Logitech Rally Bar Mini is an all-in-one video bar for small to medium meeting rooms. Discover remarkably simple, all-in-one video conferencing with built-in AI technology, brilliant optics, and powerful audio.

Logitech

Logitech Rally Bar Mini

Rally Bar Mini

Request for Quotation

All-in-one video bar for small to medium rooms Logitech Rally Bar Mini is an all-in-one video bar for small to medium meeting rooms. Discover remarkably simple, all-in-one video conferencing with built-in AI technology, brilliant optics, and powerful audio.

Overview

All-in-One Video Bar for Small And Medium Rooms

Uncover an exceptionally straightforward video conferencing solution featuring outstanding optics, AI-driven audio enhancements, seamless remote management through Logitech Sync, and additional advanced features.

Key Features

EXPAND THE CONVERSATION

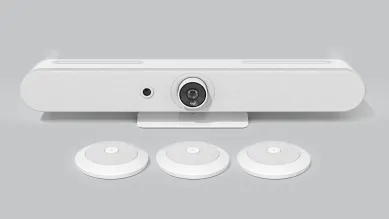

Add up to three Rally Mic Pods to extend the audio pick up range and provide convenient access to mute controls.

EVERYONE IS SEEN AND HEARD

AI video intelligence, advanced sound pickup, noise suppression, and continuous software improvements provide a clear and natural meeting experience for remote workers.

MANAGE REMOTELY WITH SYNC

Monitor room and device health, deploy updates, and modify settings, all from a single cloud-based platform.

Certified for Business

Leverage the video conferencing platforms and features you already use. Rally Bar Mini is certified for leading video platforms like Microsoft Teams, Zoom, and Google Meet.

Sustainability

A CHOICE YOU WILL FEEL GOOD ABOUT

Logitech is committed to creating a more sustainable world. We are actively working to minimize our environmental footprint and accelerate the pace of social change.

Made With Recycled Plastic

The plastic parts in the Graphite version of Rally Bar Mini include 36% certified post-consumer recycled plastic. We’re giving a second life to plastic from consumer electronics to help reduce our carbon footprint.

Specifications

Dimensions

Height	91.4 mm
Width	719 mm
Depth	101 mm
Lens Depth	18.5 mm
Weight	4.03 kgs

Certifications & Compatibility

	Microsoft Teams Rooms on Android
	Microsoft Teams Rooms on Windows

General Specifications

Built-in Components	6 beamforming microphones, PTZ camera, 3 speakers, AI Viewfinder, cable management and retention system, table stand, Logitech CollabOS platform
Enclosure	All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference
Device Management	Logitech Sync
Displays Supported	2
Display Resolution	Up to 1080p
Network Protocol Support	IPv4, IPv6
Proxy Support	IP based Proxy, FQDN based Proxy, Proxy using PAC file

Camera

Resolution	4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
Pan	Motorized ±25°
Tilt	Motorized ±15°
Zoom	4X HD digital zoom
Diagonal Field of View	120°
Horizontal Field of View	113°
Vertical Field of View	80.7°
Total Room Coverage (field of view + pan and tilt)	163° horizontal x 110° vertical

Woofer Speaker

Drivers	70 mm
Sensitivity	92dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter
Rated Power	8W
THD	1kHz < 2% at 1W
Speaker Sampling Rate	48 kHz
Impedance	4 Ohms

Midrange Speakers

Drivers	2x 43 mm
Sensitivity	84 dB SPL @ 1W/1M
Rated Power	4W
THD	1kHz < 2% at 1W
Speaker Sampling Rate	48 kHz
Impedance	4 Ohms

Microphones

Frequency Response	90Hz – 16kHz
Sensitivity	>-36dBFS +/-1 dB @ 1Pa
Microphone data rate output	48 KHz
Pickup Range	Up to 7 m
Beamforming Elements	6 omnidirectional digital MEMS microphones forming 5 adaptive acoustic broadside beams
Audio processing	AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
Noise suppression	AI based de-noising algorithm
Add-on Mics	Supports up to 3 additional Rally Mic Pods and 2 Rally Mic Pod Hubs for larger conference rooms

RightSense™ Technologies

RightLight	Renders natural skin tones for each participant
RightSight	Primary camera frames the active speaker while the AI Viewfinder captures everyone in the room
RightSound	Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo
Grid View	Detects and frames all meeting participants in order to create equitable hybrid meeting experiences.

Interfaces

HDMI Out	2 (up to 1080p)
HDMI In	1
USB	3x Type A, 1x Type C
Network	10/100/1G Ethernet
WiFi	802.11a/b/g/n/ac
External Mic Input	Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable)
Remote Control	Bluetooth® Low Energy

Power & Cables

Power Supply	Auto-sensing
Operating Voltage / Power	100-240V, 19V, 4.74A
Power Supply Dimensions	127 mm x 51 mm x 30 mm
DC Cable	1.5 m
AC Cable	1 m
HDMI 1.4 Cable	2 m
USB A to USB C 3.0 Cable	2.2 m

Environmental

Operating Temperature	0 to 40°C
Storage Temperature	-40 to 70 °C
Humidity	10 to 95%
BTU/hr	57 idle, 64 in meeting

Security

Full Disk Encryption	AES-128
Data Encryption	Symmetric Keys, PKI
Device Identity	Protected by device attestation
Device Access	Authenticated using API
Key Protection	Arm TrustZone, RPMP

Accessories

Mounts	Wall Mount for Video Bars, TV Mount for Video Bars
Audio	Rally Mic Pod, Rally Mic Pod Hub, Rally Mic Pod Mount, Rally Mic Pod Extension Cable
Connectivity	Logitech Strong USB (10m, 25m, 45m)
Touch Controller	Logitech Tap and Tap IP

Compatibility

Internet Connection	Wired or wireless
USB Mode	Windows 11, Windows 10, the two most recent versions of macOS
Appliance Mode	Room solution software license (not included)

In the Box

	Rally Bar Mini Power supply AC power cord HDMI cable USB cable Remote control Lens caps for main camera and AI Viewfinder User documentation

Business Resources

Logitech Rally Bar Mini – Product Brochure
