The Epson EB-L690SE is a short throw 3LCD laser projector delivering 6,000 lumens of colour and white brightness. WUXGA resolution with 4K Enhancement, a 0.5–0.7:1 throw ratio and manual lens shift support business and education installations with limited projection distance.
Epson
Model: Epson EB-L690SE
Short throw WUXGA laser projection with 4K Enhancement.
The Epson EB-L690SE is a short throw 3LCD laser projector delivering 6,000 lumens of colour and white brightness. WUXGA resolution with 4K Enhancement, a 0.5–0.7:1 throw ratio and manual lens shift support business and education installations with limited projection distance.
The 0.5–0.7:1 lens ratio supports large projected images from a reduced installation distance. Manual focus, optical zoom and lens shift assist positioning.
3LCD technology produces 6,000 lumens of colour and white brightness. WUXGA panels and pixel-shifting 4K Enhancement provide detailed images without claiming native 4K panel resolution.
The laser light source is rated for 20,000 hours in Normal mode and up to 30,000 hours in Extended mode. These ratings represent approximate time to 50% initial brightness and depend on operating conditions.
Create a projected display up to 500 inches diagonally in 16:10, with additional 16:6 and 21:9 aspect-ratio options for wide content.

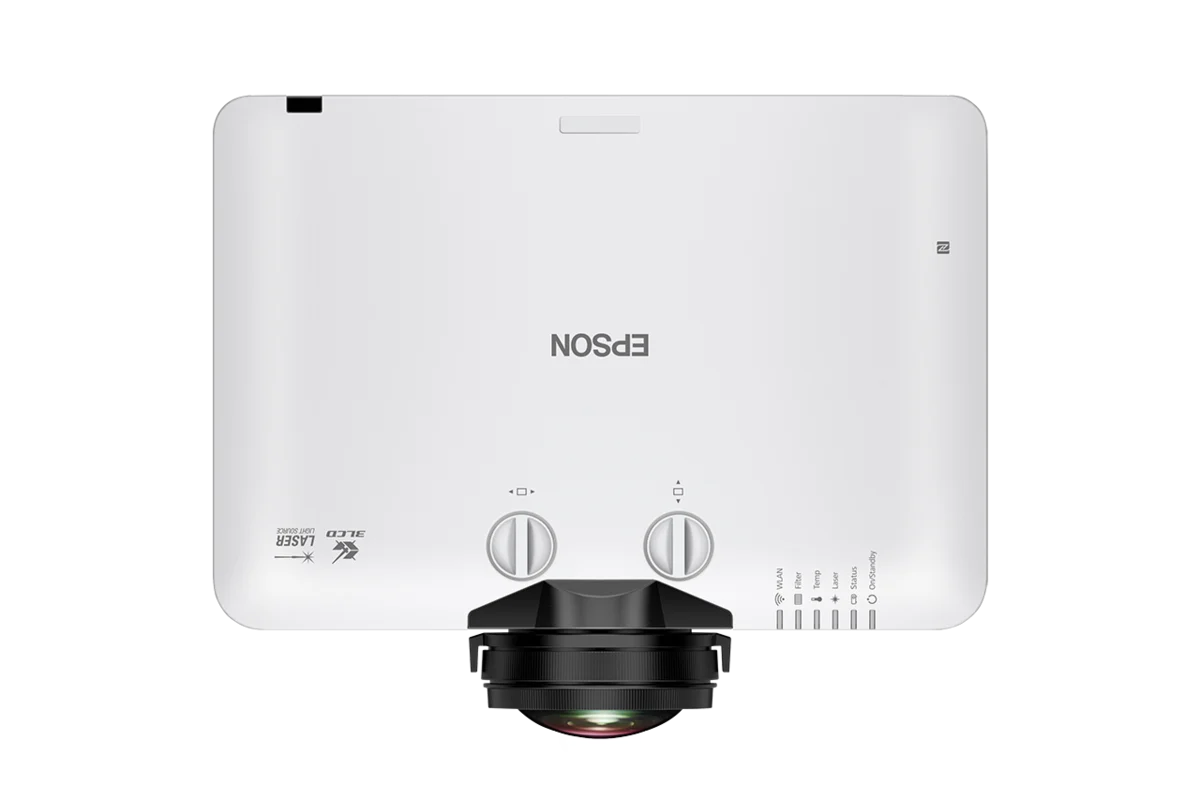

Vertical and horizontal lens shift, 1.4x optical zoom, 360-degree mounting and geometric correction tools support installation adjustment. The projector also provides a universal VESA mounting pattern.
| Projection Technology | RGB liquid crystal shutter projection system (3LCD) |
|---|
| White Light Output (Normal/Eco) | 6000lm / 4200lm |
|---|---|
| Colour Light Output | 6000lm |
| Light Output (Center) | 6500lm |
| USB | USB Type A: 2 (Port 1: For PC Free, Document Camera, Firmware Update, Copy OSD Settings,Content Playback, ELPEC01, Wireless LAN or 5V/2A Power Supply; Port 2: For PC Free, Document Camera, Firmware Update, Copy OSD Settings, Content Playback, ELPEC01, Wireless LAN or 5V/0.9A Power Supply; USB Type B: 1 (For Firmware Update, Copy OSD Settings) |
|---|---|
| Network | Wired LAN: RJ45 x 1 (100Mbps); Wireless LAN: Optional |
| Digital Input | HDMI : 2 (HDCP 2.3); HDBaseT: 1 (HDCP 2.3) |
| Audio Output | Stereo Mini: 1 |
| Control I/O | RS-232C: 1 (D-Sub 9pin) |
| Digital Output | HDMI Out: 1 (HDCP2.3, supports only HDMI input) |
| Contrast Ratio | Over 5,000,000:1 |
|---|
| Standard Size | 100” diagonal 1.08m - 1.54m |
|---|---|
| Screen Size | Zoom: Wide: 100” – 500” [1.09 – 5.58m] ; Zoom: Tele: 100” – 500” [1.54 – 7.84m] |
| Vertical/Horizontal Keystone | ±25% / ±25% |
|---|---|
| Projection Orientation | 360º Free |
| Single Use | Low Altitude (0 - 2,286m/7,500ft): 0 - 45 °C <32 - 113 °F>; High Altitude (Over 2,286m/7,500ft): 0 - 40 °C <32 - 104°F>; 20% - 80% Humidity, No Condensation |
|---|---|
| Multi-projection Use | Low Altitude (0 - 2,286m/7,500ft): 0 - 40 °C <32 - 104 °F>; High Altitude (Over 2,286m/7,500ft): 0 - 35 °C <32 - 95°F>; 20% - 80% Humidity, No Condensation |
| Operating Altitude | Over 1,500m/4,921ft with High Altitude Mode: 0 - 3,048m (0 -10,000ft) |
|---|
| Start-Up Period | 12 seconds (Epson Logo); Warm-up Period: 30 seconds |
|---|---|
| Quick Start-Up | Less than 8 seconds (Display) |
| Cool Down Period | Instant Off |
|---|
| Sound Output | NA |
|---|
| Direct Power On/Off | Yes |
|---|
| Weight | Approx. 9.3kg |
|---|
| Type | Electrostatic Filter |
|---|---|
| Maintenance Cycle | 20,000 hours (Normal) / 30,000 hours (Extended) |
| Fan Noise (Normal / Eco) | 36dB / 26dB |
|---|
| Power Supply Voltage | 100 - 240 V AC ±10%, 50/60 Hz |
|---|---|
| Power Consumption (220-240V area) | Laser Diode On: ; LD On (Normal / Extended): 415W / 303W; Standby (Normal / Eco): 2.4 W / 0.4 W |
| Dimension Excluding Feet (W x D x H) | 440 x 304 x 122 mm |
|---|
| Supported Speed for each mode | Infrastructure:; IEEE 802.11b (2.4GHz): 11 Mbps; IEEE 802.11g (2.4GHz): 54 Mbps; IEEE 802.11n (2.4GHz): 72.2 Mbps; IEEE 802.11a (5GHz): 54 Mbps; IEEE 802.11n (5GHz): 150.0 Mbps; IEEE 802.11ac (5GHz): 325 Mbps; Access Point(Wi-Fi Direct):; IEEE 802.11g (2.4GHz): 54 Mbps; IEEE 802.11n (2.4GHz): 72.2 Mbps; IEEE 802.11a (5GHz): 54 Mbps; IEEE 802.11n (5GHz): 150.0 Mbps; IEEE 802.11ac (5GHz): 325 Mbps |
|---|---|
| Supported Mode | Infrastructure, Access Point (Wi-Fi Direct) |
| Security Tyре | Infrastructure: Open, WPA2/WPA3-PSK, WPA2/WPA3-EAP; Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS; Access Point (Wi-Fi Direct): WPA2-PSK (AES) |
| LCD | Size: 0.67” (C2 Fine); Driving Method: Poly-silicon TFT active matrix; Pixel Number: 2,304,000 dots (1920 x 1200) x 3; Native Resolution: WUXGA; Aspect Ratio: 16:10; Pixel Arrangement: Cross stripe |
|---|---|
| Light Source | Type: Laser Diode; Life (Normal / Extended): 20,000 hours / 30,000 hours |
| Projection Lens | Type: Optical Zoom (Manual) / Focus (Manual) / Distortion (Manual); F-Number: 1.8 – 2.0; Focal Length: 7.54 – 10.55 mm; Zoom Ratio: 1.0 - 1.4; Throw Ratio: 0.5 – 0.7; Lens Shift:; Vertical: ±50% (Manual) ; Horizontal: ±20% (Manual) |
