For presentation installations with limited distance from the screen, the Epson EB-815E offers a 0.16–0.22:1 extreme short throw ratio. This 3LCD laser projector combines 5,000 lumens of colour and white brightness with native 1080p imaging and 4K Enhancement.
Epson
Model: Epson EB-815E
1080p with 4K Enhancement laser projection for business and education.
For presentation installations with limited distance from the screen, the Epson EB-815E offers a 0.16–0.22:1 extreme short throw ratio. This 3LCD laser projector combines 5,000 lumens of colour and white brightness with native 1080p imaging and 4K Enhancement.
5,000 lumens of colour and white brightness support presentations in classrooms and meeting spaces. The 1080p with 4K Enhancement image is generated by Epson 3LCD technology.
The 0.16–0.22:1 throw ratio helps match the projector to the available installation distance. Its ultra short throw design places the projector close to the projection surface.
The laser light source is rated for 20,000 hours in Normal mode and up to 30,000 hours in Extended mode. This is the approximate time until brightness decreases to 50% of initial output; actual life depends on use and environment.
Create images up to 160 inches diagonally. Epson specifies an 80-inch image with the front of the projector 2.3 cm from the wall, or a 100-inch image at 9.8 cm; these are not lens-to-screen measurements.
4K Enhancement uses pixel shifting with frame interpolation, HDR and scene-adaptive gamma processing. The projector retains native 1080p panels.
Native 16:9 projection is complemented by 16:6 and 21:9 layouts for shared content, hybrid meetings and digital signage.
Wired interfaces and compatible wireless connections, including Miracast screen mirroring, support sharing content from multiple source devices.
| Projection Technology | RGB liquid crystal shutter projection system (3LCD) |
|---|
| White Light Output (Normal / Extended) | 5,000lm / 3,500lm |
|---|---|
| Colour Light Output | 5,000lm |

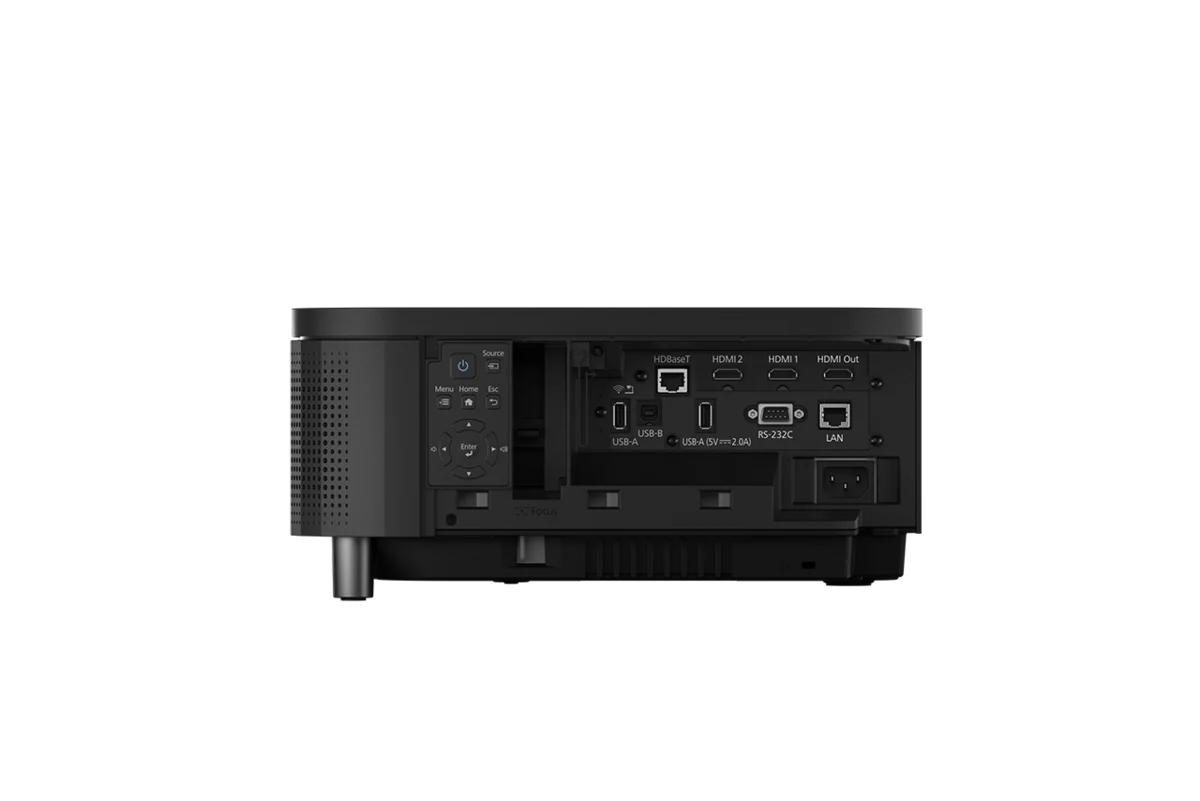

| Digital Input | HDMI: 2 (HDCP 2.3); HDBaseT: 1 (HDCP 2.3) |
|---|---|
| Control I/O | RS-232C: 1 (D-sub 9-pin) |
| USB Input | USB Type A: 2 (Port1 for for PC Free, Firmware update, Copy OSD Settings, ELPAP11; Port 2 for PC Free, Firmware update, Copy OSD Settings or 5V/2A Power Supply; USB Type B: 1 (For Firmware update, Copy OSD Settings) |
| Network I/O | Wired LAN: 1 (RJ45); Wireless LAN: In-built and Optional (using USB-A Port 1) |
| Digital Video Output | HDMI: 1 (HDCP 2.3) |
| Contrast Ratio | Over 5,000,000:1 |
|---|
| Quick Corner | Yes |
|---|
| Operating Temperature | Low Altitude (0 - 2,286m/7,500ft): 0 - 40 °C <32 - 104°F>; High Altitude (Over 2,286m/7,500ft): 0 - 35 °C <32 - 95 °F>; 20% - 80% Humidity, No Condensation |
|---|
| Operating Altitude | Over 1,500m/4,921ft with High Altitude Mode: 0 - 3,048m (0 -10,000ft) |
|---|
| Start-Up Period | Less than 6 seconds (Epson Logo); Warm-up Period: Less than 30 sec |
|---|---|
| Quick Start-Up | Less than 12 seconds (Display) |
| Cool Down Period | Instant Off |
|---|
| Sound Output | 8 W x 8 W Stereo |
|---|
| Direct Power On/Off | Yes |
|---|
| Weight | Approx. 12.5 kg |
|---|
| Type | Electrostatic Filter |
|---|---|
| Maintenance Cycle | 20,000 hours (Normal) |
| Fan Noise (Normal / Eco) | 35dB / 26dB |
|---|
| Frame Interpolation | Yes |
|---|---|
| Image Adjustment | 4K Enhancement, Image Present Mode, Noise reduction |
| Dimension Excluding Feet (D x W x H) | 341 x 695 x 145 mm |
|---|
| Zoom : Wide | 80" to 160" [27.8cm to 57.8cm] @16:9; 66" to 130" [28.1cm to 57.4cm] @4:3; 74" to 148" [27.8cm to 57.8cm] @16:10; 76" to 151" [27.9cm to 57.5cm] @21:9; 75" to 148" [28.0cm to 57.4cm] @16:6 |
|---|---|
| Zoom : Tele | 60" to 118" [28.2cm to 57.5cm] @16:9; 49" to 96" [28.2cm to 57.2cm] @4:3; 55" to 109" [27.9cm to 57.4cm] @16:10; 57" to 112" [28.2cm to 57.6cm] @21:9; 56" to 110" [28.3cm to 57.6cm] @16:6 |
| Supported Speed for each Mode | Infrastructure:; IEEE 802.11b (2.4GHz): 11 Mbps; IEEE 802.11g (2.4GHz): 54 Mbps; IEEE 802.11n (2.4GHz): 72.2 Mbps; IEEE 802.11a (5GHz): 54 Mbps; IEEE 802.11n (5GHz): 150.0 Mbps; IEEE 802.11ac (5GHz): 325Mbps; ; Access Point(Wi-Fi Direct):; IEEE 802.11g (2.4GHz): 54 Mbps; IEEE 802.11n (2.4GHz): 72.2 Mbps; IEEE 802.11a (5GHz): 54 Mbps; IEEE 802.11n (5GHz): 150.0 Mbps; IEEE 802.11ac (5GHz): 325Mbps |
|---|---|
| Supported Mode | Infrastructure, Access Point(Wi-Fi Direct) |
| Supported Security Type | Infrastructure: OPEN (WPA2/WPA3-PSK/ WPA2/WPA3-EAP); Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast; Access Point (Wi-Fi Direct) : WPA2-PSK (AES) |
| LCD | Size: 0.62" (C2 Fine); Resolution: 1080P (4KE); Aspect Ratio: 16:9 |
|---|---|
| Projection Lens | Type: Focus (Manual); F-Number: 1.8; Focal Length: 2.3mm; Zoom Ratio: 1 - 1.35 (Digital zoom); Throw Ratio: 0.16 – 0.22 (Wide - Tele) |
| Power Consumption | LD On (Normal / Quiet / Extended): 380W / 286W |
|---|---|
| Power Supply Voltage | 100 - 240 V AC ±10%, 50/60 Hz |
| Type | Laser Diode |
|---|---|
| Light Source Life (Normal/ Extended) | 20,000 / 30,000 hrs |
| Colour Mode | Dynamic, Presentation, Cinema, Natural, Blackboard, DICOM SIM, Multi-Projection, Face Brightness |
|---|
