The Epson EB-770F is a Full HD ultra short throw 3LCD laser projector for classrooms and meeting spaces. It delivers 4,100 lumens of colour and white brightness, while its 0.25–0.35:1 throw ratio enables projection close to the display surface.
Epson

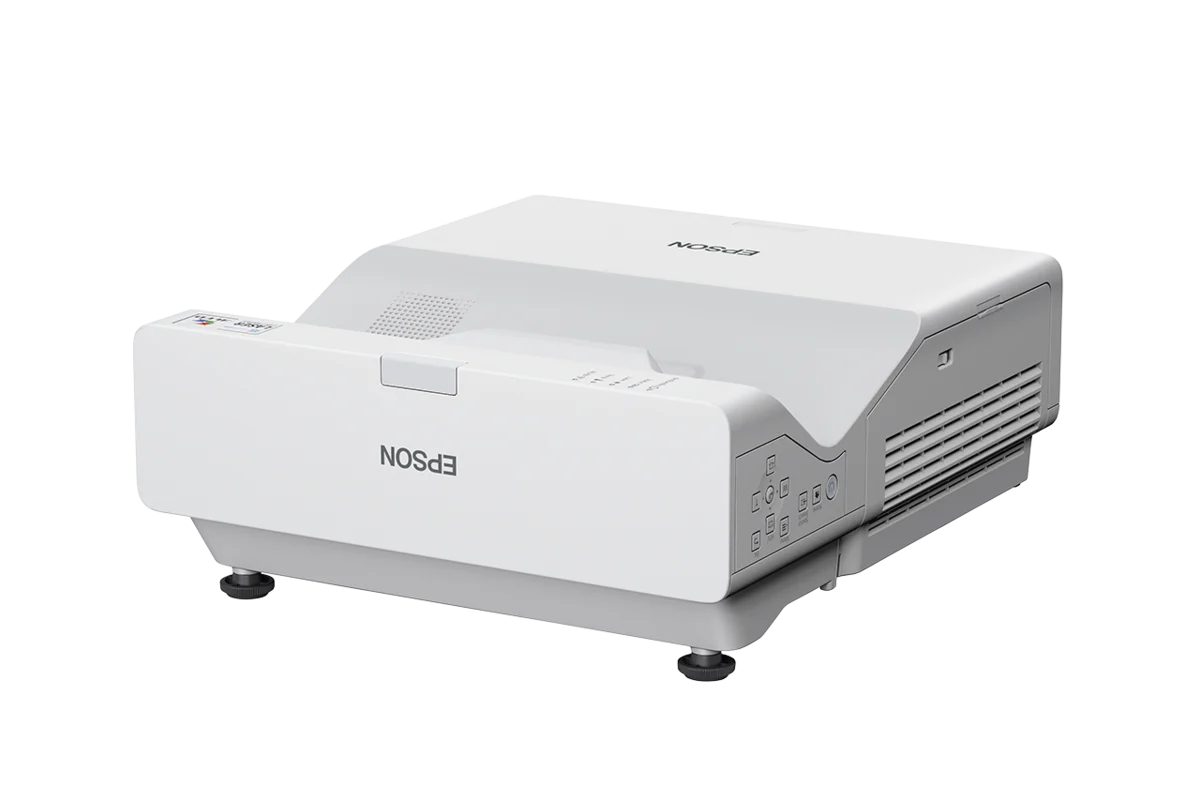

Model: Epson EB-770F
Full HD 1920 x 1080 laser projection for business and education.
The Epson EB-770F is a Full HD ultra short throw 3LCD laser projector for classrooms and meeting spaces. It delivers 4,100 lumens of colour and white brightness, while its 0.25–0.35:1 throw ratio enables projection close to the display surface.
4,100 lumens of colour and white brightness support presentations in classrooms and meeting spaces. The Full HD 1920 x 1080 image is generated by Epson 3LCD technology.
The 0.25–0.35:1 throw ratio helps match the projector to the available installation distance. Its ultra short throw design places the projector close to the projection surface.
The laser light source is rated for 20,000 hours in Normal mode and up to 30,000 hours in Extended mode. This is the approximate time until brightness decreases to 50% of initial output; actual life depends on use and environment.

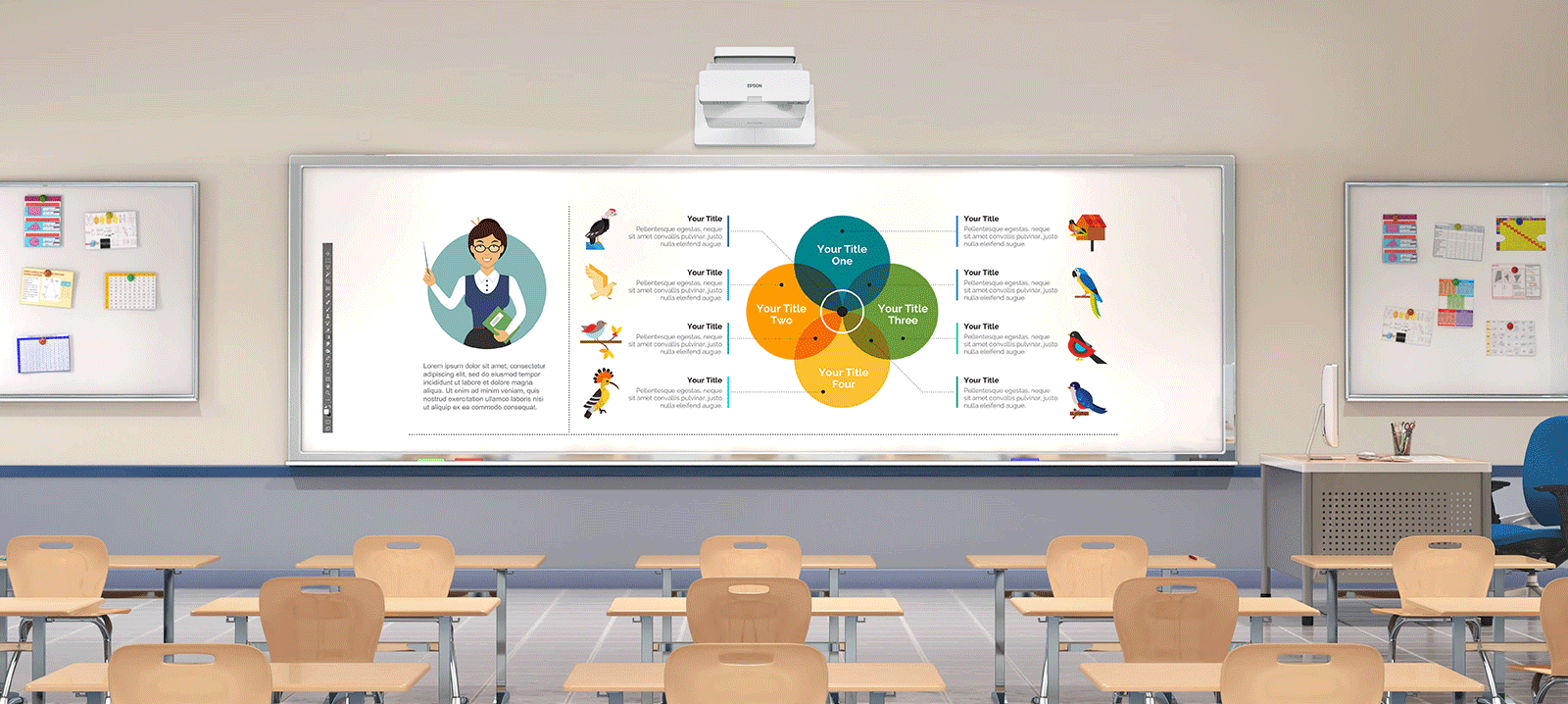

Classroom illustration showing projected learning content.
Illustrative colourful town scene used to demonstrate image detail.

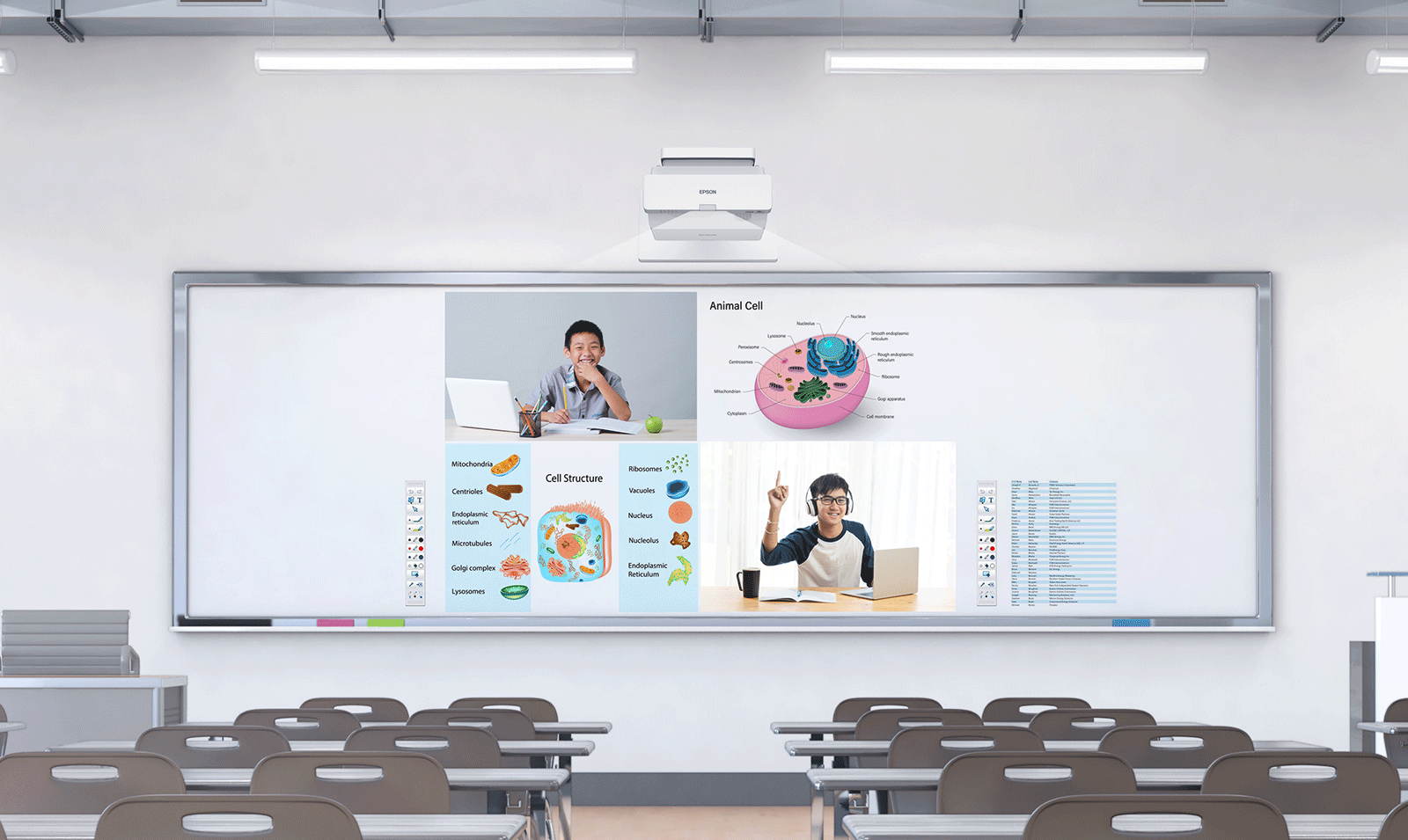

Classroom illustration showing shared projected content.
Project images up to 150 inches diagonally, with a 21:9 option up to 142 inches. Select an aspect ratio suited to the meeting or learning space.
Epson iProjection supports connecting up to 50 compatible devices and displaying up to four at a time. Moderator control helps manage which content is presented.
The projector displays Full HD 1080p images and accepts compatible 4K input content; this does not change its native panel resolution.
| Projection Technology | RGB liquid crystal shutter projection system |
|---|
| White Light Output (Normal / Extended) | 4,100lm / 2,800lm |
|---|---|
| Colour Light Output | 4,100lm |
| Contrast Ratio | Over 5,000,000 : 1 |

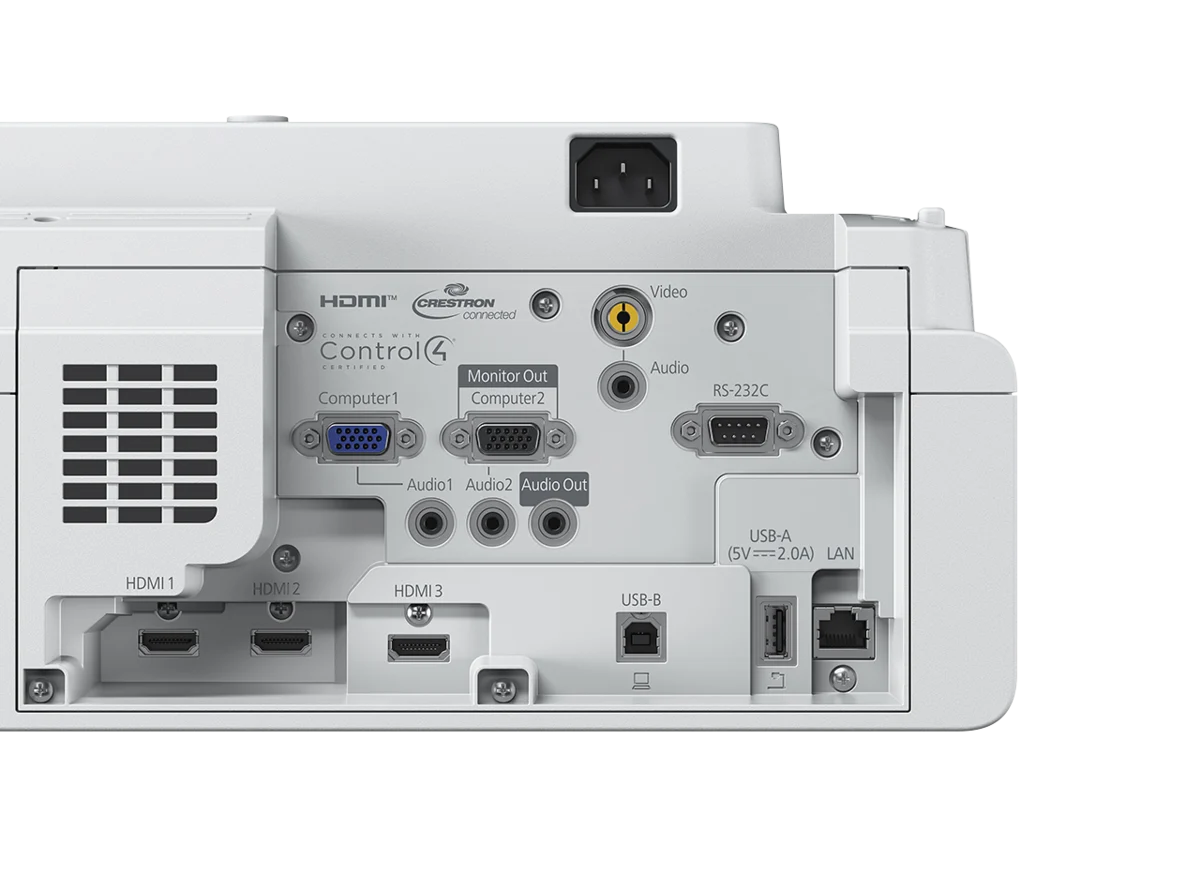

| Analog Input | Computer In: 2; Composite: 1 |
|---|---|
| Digital Input | HDMI In: 3 (HDCP 2.3) |
| Analog Output | Computer Out: 1 (Share with Computer2) |
| Audio Input | Audio In: 3 (Stereo Mini) |
| Audio Output | Audio Out: 1 (Stereo Mini) |
| Mic I/O | Mic In: 1 (Stereo Mini) |
| Control I/O | RS232C: 1 (D-sub 9pin) ; ; USB I/O; Type A: 2 (1 (Side): For PC Free, FW Update, Copy OSD Settings; 1 (Rear): For PC Free, FW Update, Copy OSD Settings or 5V/2A Power Supply) ; Type B: 1 (For FW Update, Copy OSD Settings, USB Display) |
| Network I/O | Wired LAN: 1 (RJ45); Wireless LAN: 1 (Built-in and Optional) |
| Vertical/Horizontal Keystone | ±3° / ±3° |
|---|---|
| Quick Corner | Yes (Manual) |
| Operating Temperature | 0 - 2,286 m (0 - 7,500 ft): 0 °C - 40 °C [32 °F - 104 °F ] ; 20% to 80% Humidity, No Condensation; Over 2,286 m (7,500 ft): 0 - 35 °C [32 °F - 95 °F] ; 20%-80% Humidity, No Condensation |
|---|
| Operating Altitude | Over 1,500 m / 4,921 ft, with High Altitude Mode: 0 - 3,048 m (0 - 10,000 ft) |
|---|
| Start-Up Period | Less than 10 seconds (Epson Logo) |
|---|---|
| Quick Start-Up | Less than 5 seconds (Display) |
| Cool Down Period | Instant Off |
|---|
| Sound Output | 16W Mono |
|---|
| Weight | Approx.5.9kg |
|---|
| Type | Electrostatic Filter |
|---|---|
| Maintenance Cycle (Normal / Extended) | 12,000 hours / 20,000 hours |
| Fan Noise (Normal / Eco) | 37dB / 27dB |
|---|
| Dimension Excluding Feet (D x W x H) | 395 x 356 x 133mm |
|---|
| Noise Reduction | Yes |
|---|---|
| Super-Resolution | Yes |
| Detail Enhancement | Yes |
| Supported Speed for Each mode | Infrastructure: IEEE 802.11b (2.4GHz): 11Mbps, IEEE 802.11g (2.4GHz): 54Mbps IEEE 802.11n (2.4GHz): 72.2Mbps,; IEEE 802.11a (5GHz): 54Mbps, IEEE 802.11n (5GHz): 150Mbps, IEEE 802.11ac (5GHz): 325Mbps; Access Point (Wi-Fi Direct): IEEE 802.11g (2.4GHz): 54Mbps, IEEE 802.11n (2.4GHz): 72.2Mbps,; IEEE 802.11a (5GHz): 54Mbps, IEEE 802.11n (5GHz): 150Mbps, IEEE 802.11ac (5GHz): 325Mbps |
|---|---|
| Supported Mode | Infrastructure, Access Point (Wi-Fi Direct); Wireless LAN Security; Infrastructure: OPEN, WPA2 / WPA3-PSK, WPA2 / WPA3-EAP; Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast ;; Access Point (Wi-Fi Direct): WPA2-PSK (AES) |
| Power Supply Voltage | 100 – 240 V AC ±10%, 50/60 Hz |
|---|
| Lamp (Normal / Extended) | 263W / 199W |
|---|---|
| Standby | (Network On / Off): 2.0W / 0.5W |
| Direct Power On / Off | Yes |
|---|
| LCD | Size: 0.62” (C2Fine); Resolution: Full HD |
|---|---|
| Light Source | Type: Laser Diode; Life (Normal / Quiet / Extended): 20,000 / 20,000 / 30,000 hrs |
| Projection Lens | Type: No Optical Zoom / Focus (Manual); F-Number: 1.60; Focal Length: 3.7mm; Zoom Ratio: 1 – 1.35 (Digital Zoom); Throw Ratio: 0.25 – 0.35 |
| Screen Size (projected distance) | Standard: 77” screen 43.3cm; Zoom (Wide): ; 56” to 140” (32.5 – 89.3cm) @ 16:6; 60” to 150” (32.5 – 89.3cm) @ 16:9; 55” to 139” (32.5 – 89.3cm) @ 16:10; 57” to 142” (39.4 – 85.3cm) @ 21:9 |
